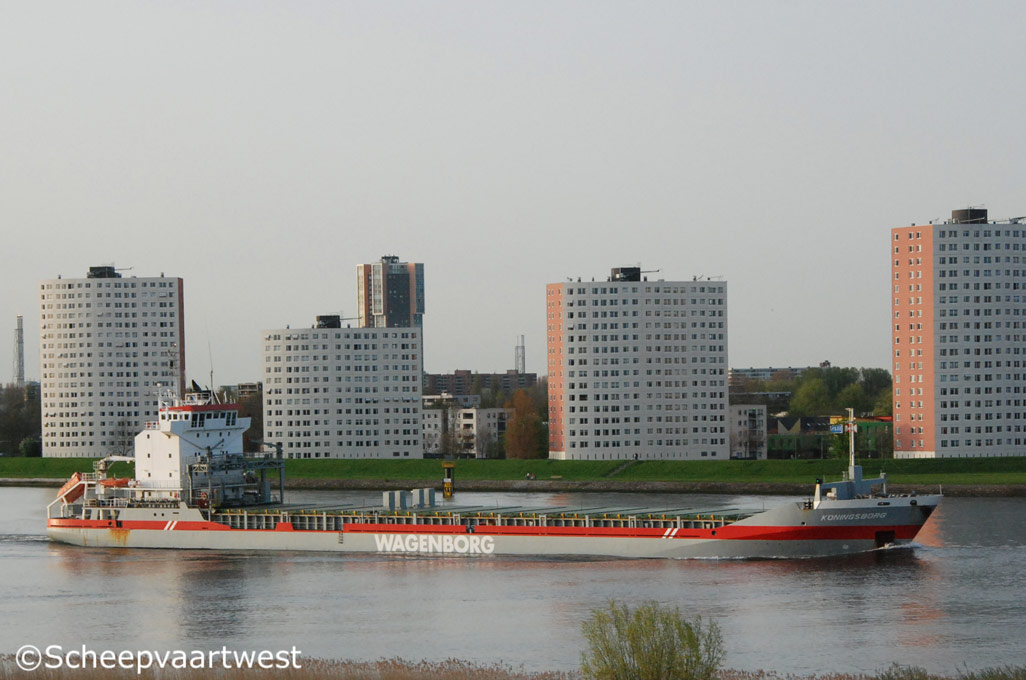

| Spijkenisse, The Netherlands 10 April 2011 |
 |
 |
|
|

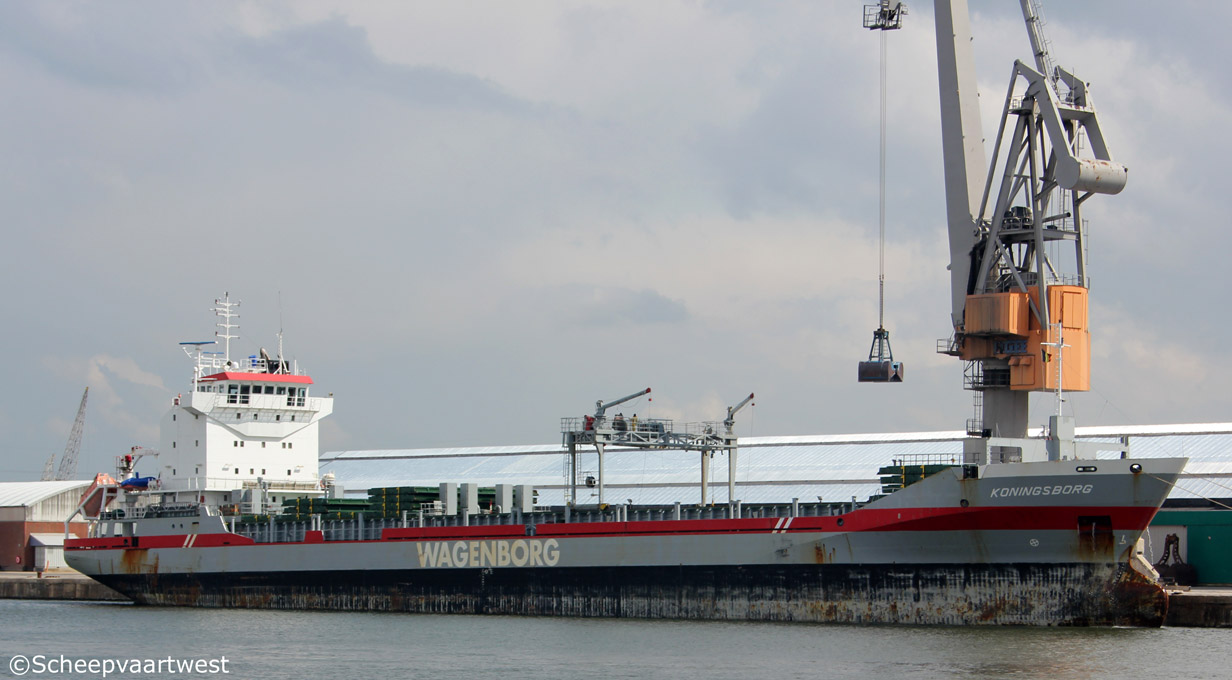

Antwerpen 14/05/14 |

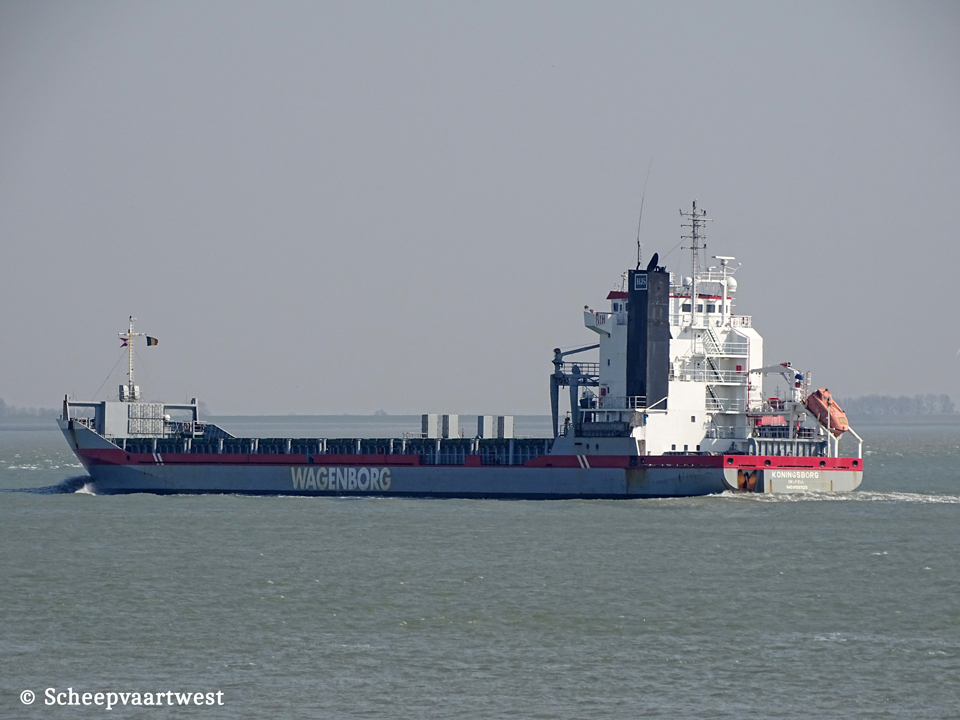

Westerschelde 27/03/20 | |
|
Name |
KONINGSBORG |
|
Type |
Multi-purpose dry cargo carrier - Strengthened for heavy cargoes - Container cargoes in all holds and on all hatch covers |
|
IMO-number |
9155925 |
|
Call sign |
PDHI |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.142 t |
|
DWT |
Summer: 9.067 t |
|
DWCC |
Summer: 8.500 t |
|
NT |
3.482 t |
|
Number of 20ft containers |
503 |
|
Length |
130,17 m overall 120,95 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
7,46 m |
|
Air draft |
34,50 m in ballast |
|
Freeboard |
2.762 mm |
|
Depth |
10,20 m moulded |
|
Speed |
14,5 knots |
|
Built |
1998 |
|
Keel laid |
10/04/1997 |
|
Launch date |
26/11/1997 |
|
Date of completion |
28/01/1998 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
315 |
|
Hull material |
Steel - Part higher tensile steel |
|
Watertight compartments |
6 |
|
Movable bulkhead |
1 |
|
Continuous decks |
1 |
|
Main engine |
1x Stork-Wartsila 6SW38 - 4 stroke single acting 6 cylinder 380 x 475 mm combustion engine 3.960 kW / 5.380 hp at 600 rpm Built: 1997 Builder: Stork Wärtsilä NSD, Zwolle - The Netherlands |
|
Propellers |
1x Lips screw propeller controllable pitch at 148 rpm 4 blades |
|
Boilers |
1x CHM 17,00 m² - 13,0 bar 1x CHR 53,00 m² - 13,0 bar |
|
Electric installation |
Power voltage: 380 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 700 kVA - 560 kW |
|
Generators |
3x Main diesel generators each 178 kVA - 142 kW |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2x Box shaped Hold 1: 60,55 x 13,20 x 11,05 m Hold 2: 24,85 x 13,20 x 11,05 m |
|
Total capacity of holds |
Grain/Bale: 12.027 m³ / 425.000 ft³ |
|
Hold ventilation |
2x Electrical ventilation air changes per hour basis empty holds |
|
Cargo hatchways |
2 Hatch 1: 60,60 x 13,20 m Hatch 2: 25,20 x 13,20 m |
|
Fuel capacity |
HFO: 460 m³ MGO: 55 m³ Water ballast: 3.260,22 m³ Fresh water: 49,93 m³ |
|
Manager |
Wagenborg Shipping Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Steven M. Smith Bosanemoon 5 9408 LA Assen The Netherlands |
|
Previous owner |
1998 - 03/2008 C.V. Scheepvaartonderneming Koningsborg, Delfzijl - The Netherlands (Steven M. Smith) Assen The Netherlands |
|
Latest data adjustment |
29 January 2023 |
