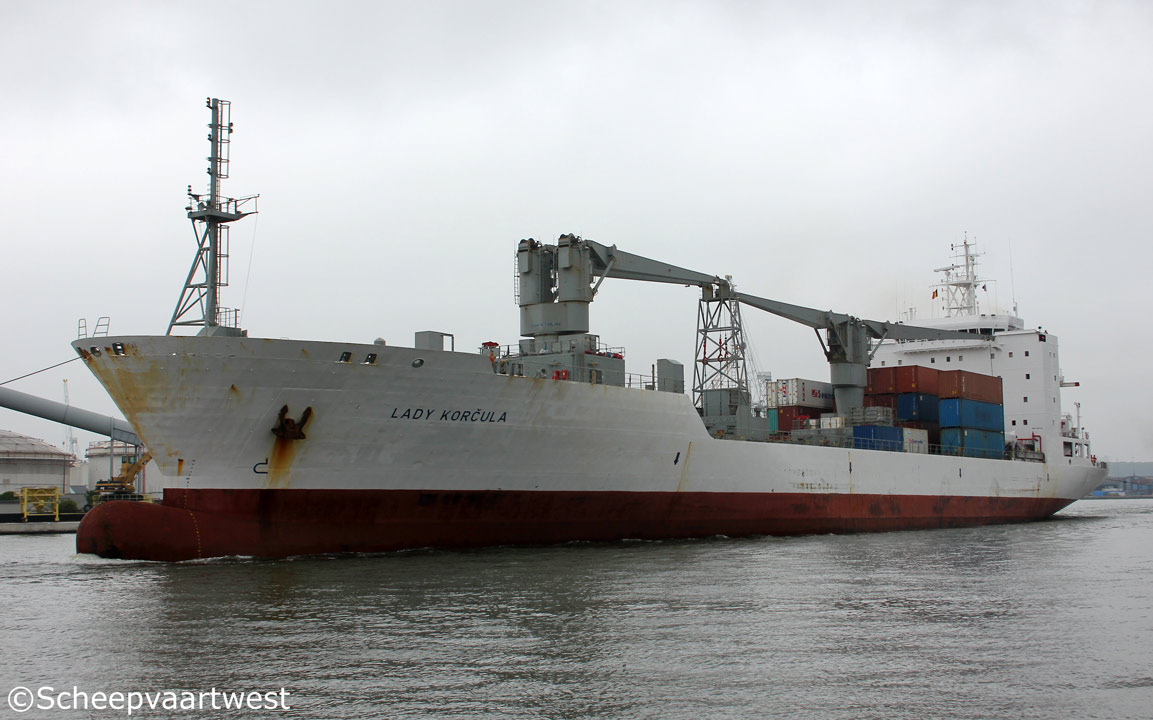

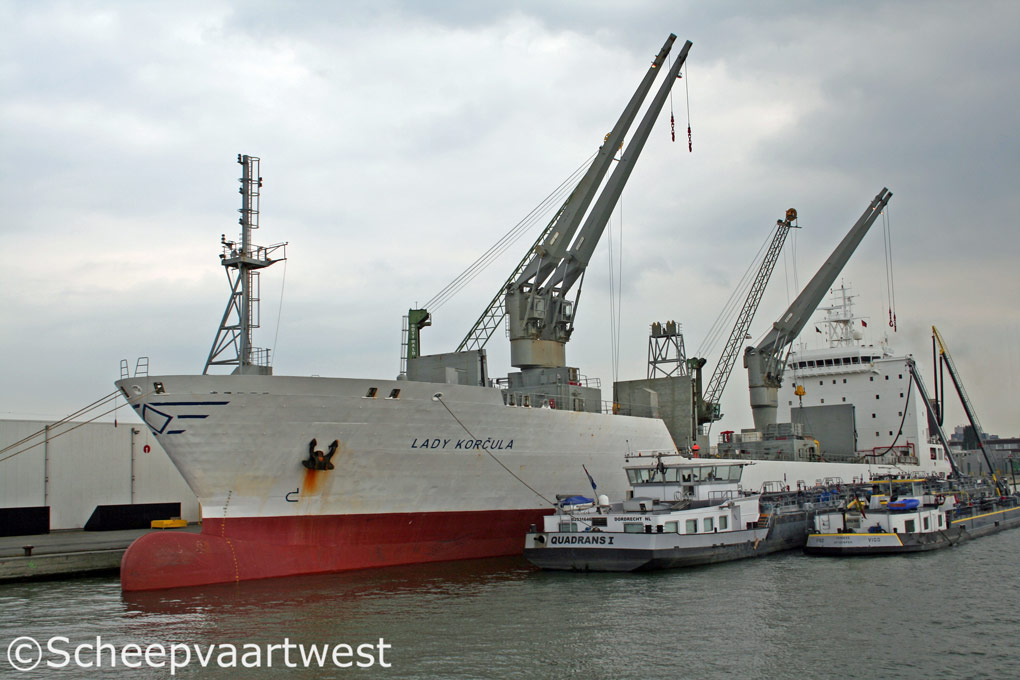

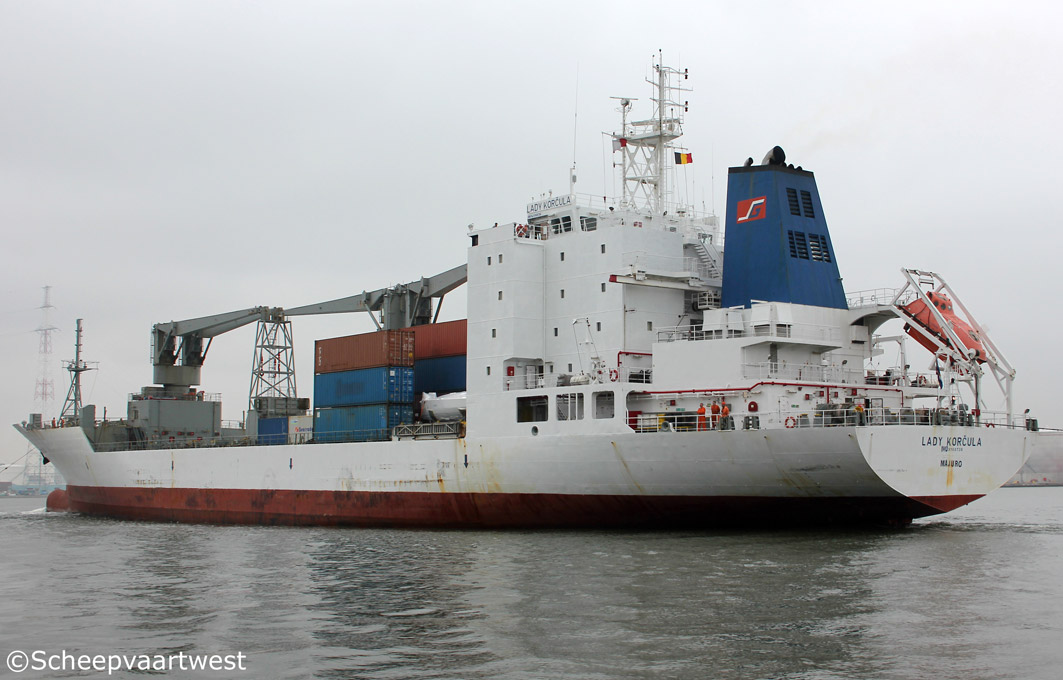

| Antwerpen 11 July 2014 |
 |
 |
 |
||
| Antwerpen 11/07/14 | Antwerpen 31/08/11 | Westerschelde 22/08/15 | ||
|
Name |
LADY KORCULA |
|
Type |
Refrigerated cargo ship - Container ship |
|
IMO-number |
9160736 |
|
Call sign |
V7FC7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
200 - 2003 Croatia |
|
GT |
11.443 t Suez: 12.304,25 t |
|
DWT |
12.913 t |
|
NT |
6.336 t Suez: 9.166,25 t |
|
Light ship |
6.920 t |
|
Containers capacity |
Deck: 20 TEU + 120 FEU or 168 TEU + 46 FEU Hold: 72 TEU or 36 FEU |
|
Reefer plugs |
120 |
|
Length |
155,27 m overall 146,00 m between perpendiculars |
|
Breadth |
23,39 m |
|
Draught |
9,50 m |
|
Freeboard |
3.712 mm |
|
Depth |
13,20 m |
|
Speed |
20,8 knots |
|
Built |
2000 |
|
Date of complication |
03/11/2000 |
|
Builder |
Brodosplit Brodogradiliste D.O.O. Split Croatia |
|
Yard number |
404 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Number of decks |
4 |
|
Main engine |
1x MAN-B&W 7L60MC - 2 stroke 7 cylinder 600 x 1.944 mm combustion engine 13.440 kW / 18.261 hp at 123 rpm Built: 2000 Builder: Brodosplit Tvornica Diezel Motora - Ljevaonica d.o, Split - Croatia |
|
Propelling system |
1x Fixe ich propeller - aft at 123 rpm |
|
Boilers |
1x CHM - 7,00 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Diesel generators |
4x Diesel generatorsets each 1.500 kVA - 1.200 kW - 1.739 hp |
|
Emergency generators |
1x Diesel generatorset 135 kVA - 108 kW - 147 hp |
|
Number of holds |
4 |
|
Total capacity of holds |
16.713,23 m³ |
|
Number of hatches |
4 Hatch 1: 6,16 x 6,00 m Hatch 2 - 4: 12,82 x 8,00 m |
|
Method of cooling |
Brine |
|
Temperature compartments / zones |
16 / 8 |
|
Cargo temperature |
+15 / -30°C |
|
Fuel capacity |
1.661 m³ |
|
Lifting equipment |
4x Cranes - SWL 20,3 t each or 2x 40 t |
|
Crew |
21 |
|
Manager |
Korkyra Shipping Ltd ACI Marina Setaliste F. Krsinica 4 20260 Korcula Croatia |
|
Owner |
Lady Navigation, Inc. Monrovia Liberia |
|
Sister ships |
Lady Racisce |
|
Renamed |
01/2017 Baltic Lady 2017 Saint Vincent & Grenadines, Kingstown - Call sign: J8D5539 2021 Bahamas, Nassau - Call sign: C6EY4 Registered owner: Win Fancy Investment SA, St Petersburg - Russia ISM manager: Ost-West-Handel Und Schiffahr, Bremen – Germany Commercial manger: Baltic Reefers Ltd., St Petersburg - Russia |
|
Last data adjustment |
18 May 2024 |
