Westerschelde 24 April 2019 |
 |
 |
 |
 |
|||

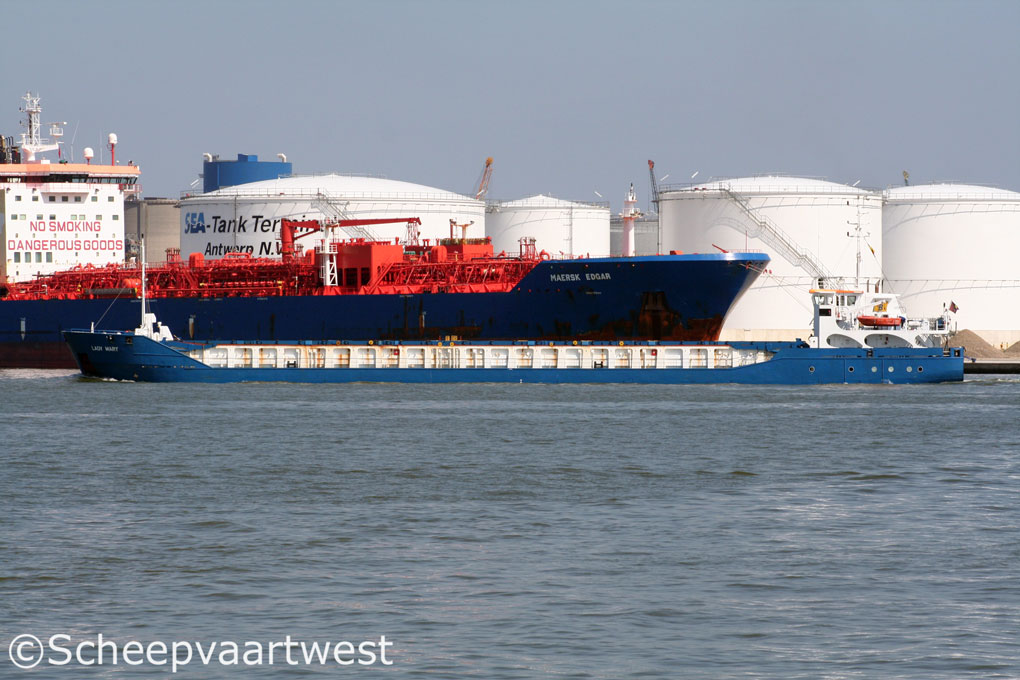

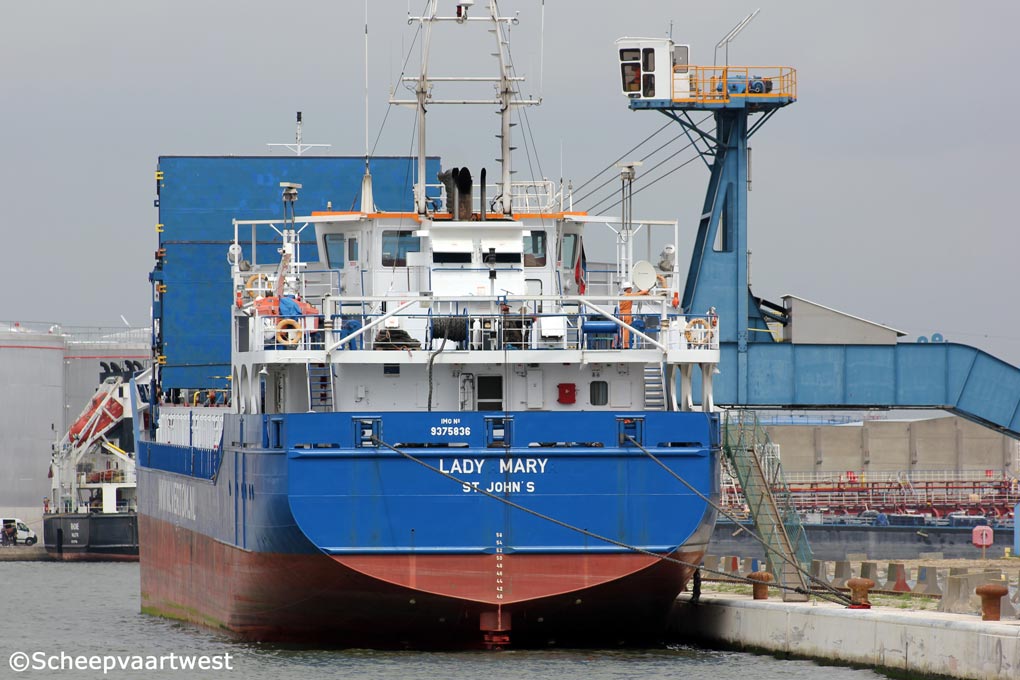

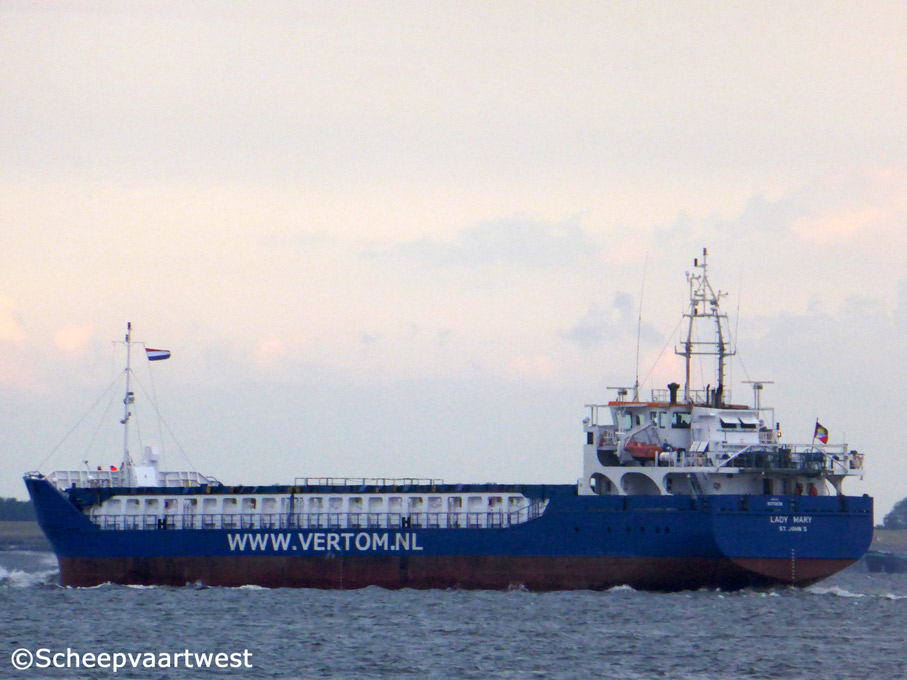

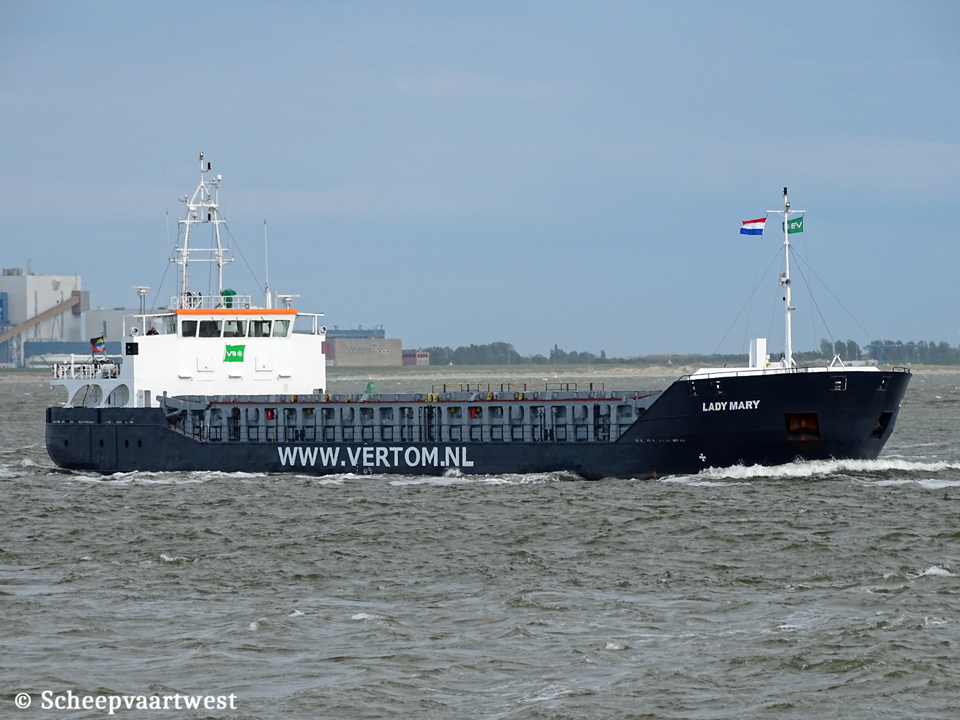

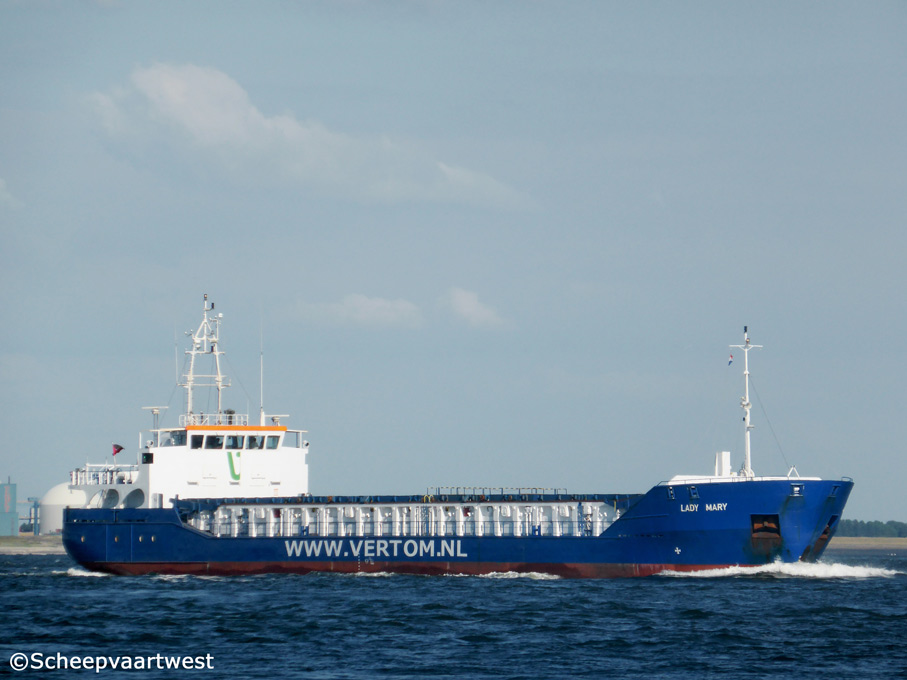

| Westerschelde 24/06/14 | Antwerpen 01/08/11 | Antwerpen 15/07/14 | Westerschelde 25/06/14 |
|
Name |
LADY MARY |
|
Previous names |
2008 - 03/2011 Imel Abdena 03/2011 Lady Mary |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9375836 |
|
Call sign |
V2DI8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.451 t |
|
DWT |
3.612 t |
|
NT |
1.033 t |
|
Number of 20ft containers |
108 |
|
Length |
88,30 m overall 85,29 m registered |
|
Breadth |
12,40 m registered |
|
Draught |
5,14 m |
|
Freeboard |
1.570 mm |
|
Forecastle |
6,42 m |
|
Poop |
16,20 m |
|
Air draft |
12,00 m |
|
Freeboard |
1.570 mm |
|
Depth |
6,70 m moulded |
|
Speed |
10,5 knots |
|
Built |
2008 |
|
Keel laid |
15/12/2004 |
|
Launch date |
06/03/2008 |
|
Date of completion |
26/05/2008 |
|
Builder |
Slovenske Lodenice Komarno a.s. Rolnickej Skoly 1519 945 01 Komarno Slovak Republic |
|
Yard number |
2108 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
2x Movable bulkheads in 9 different positions making 4 different compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6 L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engine 1.125 kW at 1.000 rpm Year of manufacture: 2007 Manufacturer: Wärtsilä Finland Oy Tarhaajantie 2 65380 Vaasa Finland |
|
Propeller |
1x Solid propeller - aft at 256 rpm |
|
Boiler |
1x Water heater, oil fired - 12,0 bar Year of manufacture: 2007 Manufacturer: Max Weishaupt GmbH Max Weishaupt-Str. 14 88475 Schwendi Federal Republic of Germany |
|
Electric installations |
1x Plant 400 V - 120 kVA 1x Plant 400 V - 210 kVA 1x Plant 400 V - 116 kVA 1x Plant 400 V - 80 kVA 1x Plant 24 V - 50 Ah 1x Plant 24 V - 50 Ah 1x Plant 24 V - 140 Ah 1x Plant 24 V - 180 Ah |
|
Shaft generator |
116 kVA |
|
Generators |
1x Main diesel generatorset 210 kVA 1x Main diesel generatorset 120 kVA |
|
Emergency generator |
1x Diesel generatorset 80 kVA |
|
Batteries |
1x Battery for automation 180 Ah 1x Battery for UPS radio 140 Ah 2x Batteries for start aux. engine each 50 Ah 1x Battery for start emergency engine 50 Ah |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 130 kW - forward |
|
Number of holds |
2x Each fully boxshaped Hold 1: 25,20 x 10,10 x 7,77 m Hold 2: 31,75 x 10,10 x 7,77 m |
|
Hold capacity |
Bale/Grain: Hold 1: 70.558 ft³ Hold 2: 88.886 ft³ Total hold capacity: 159.444 ft³ |
|
Hatch type |
Hydraulic folding |
|
Number of hatches |
Hatch 1: 25,20 x 10,10 m Hatch 2: 31,75 x 10,10 m |
|
Hatch cover load |
1,6 t/m² |
|
Tank capacities |
Fuel oil: 165 t Fresh water: 24 t |
|
Ventilation |
6 Air changes per hour (basis empty hold) |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m |
|
Crew size |
7 |
|
Manager |
Vertom Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Federal Republic of Germany |
|
Registered onwer |
Vertom-Bojen Schiffahrts MS "IMEL ABDENA" GmbH & Co. KG Koenigsberger Str. 12 26802 Moormerland Federal Republic of Germany |
|
Latest data adjustment |
10 June 2021 |
