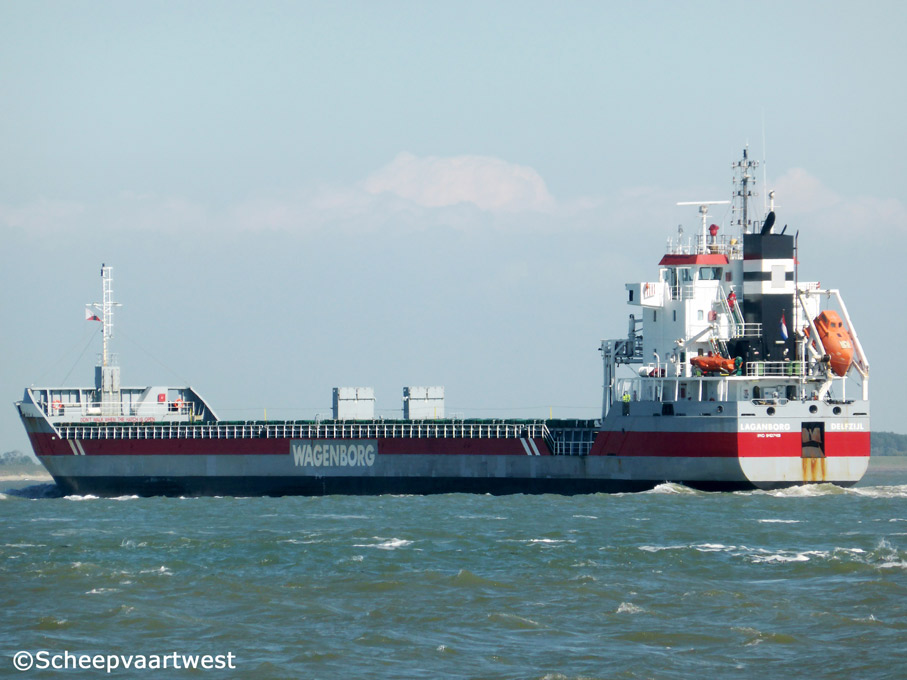

| Vlissingen, The Netherlands 16 April 2019 |
 |
 |
 |
||

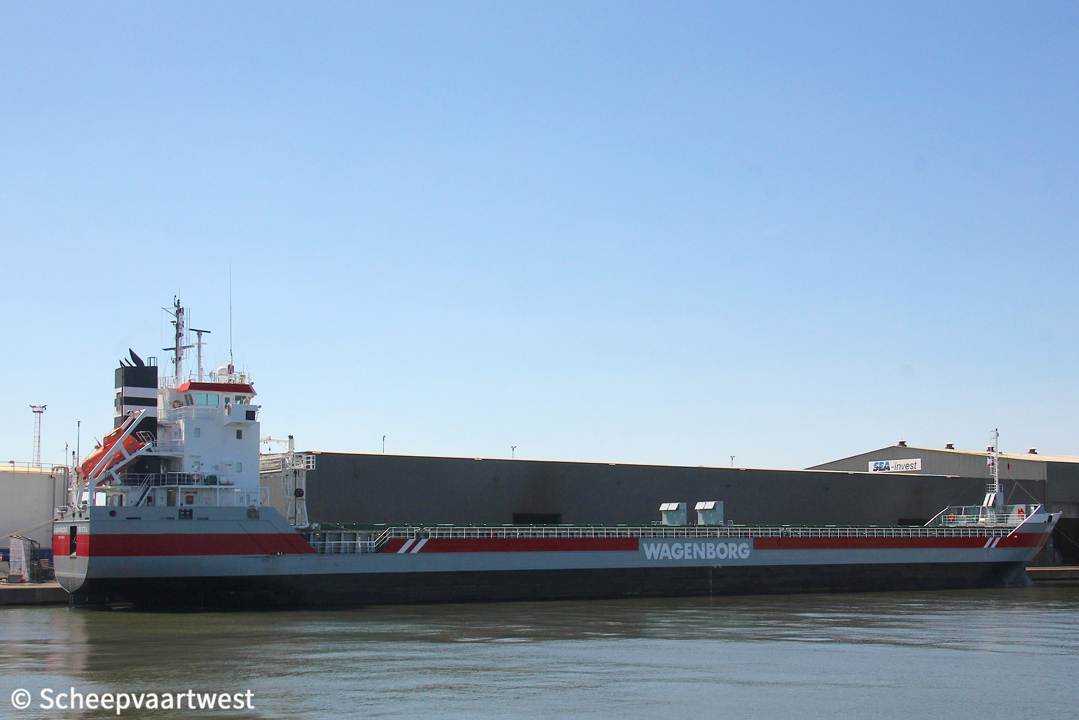

| Spijkenisse 16/07/10 | Westerschelde 21/05/15 | Antwerpen 23/07/19 |
|
Name |
LAGANBORG |
|
Type |
Multi-purpose dry cargo carrier - heavy cargo - Container ship |
|
IMO-number |
9407419 |
|
Call sign |
PHQB |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
4.695 t |
|
DWT |
7.433 t |
|
NT |
2.558 t |
|
Number of 20ft containers |
304 |
|
Length |
122,34 m overall 115,97 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
6,51 m |
|
Air draft |
32,40 m |
|
Freeboard |
1.613 mm |
|
Speed |
13,0 knots |
|
Built |
2008 |
|
Keel laid |
20/12/2006 |
|
Launch date |
09/10/2008 |
|
Delivery date |
05/12/2008 |
|
Builder |
Koninklijke Niestern Sander BV Delfzijl The Netherlands |
|
Yard number |
837 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar MaK 9M25C - 4 stroke 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 750 rpm Built: 2008 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Electrical propulsion gen. |
1x 275 kW - 400 Volt |
|
Propelling system |
1x Screw propeller controllable pitch at 194 rpm |
|
Generators |
1x Diesel generatorset 120 kVA - 96 kW - 150 hp 2x Diesel generatorsets each 231 kVA - 185 kW - 272 hp |
|
Bow thruster |
350 kW |
|
Cargo capacity |
323.779 ft³ / 9.163 m³ |
|
Number of holds |
2 Hold 1: 45,18 x 11,71 x 8,98 m Hold 2: 44,48 x 11,71 x 8,98 m |
|
Number of hatches |
2 Hatch 1: 45,18 x 11,71 m Hatch 2: 44,48 x 11,71 m |
|
Fuel capacity |
377 m³ |
|
Manager |
Koninklijke Wagenborg Shipping B.V Delfzijl The Netherlands |
|
Operator |
Wagenborg |
|
Registered owner |
Scheepvaartonderneming Laganborg B.V. Delfzijl The Netherlands |
|
Latest data adjustment |
18 February 2022 |
