| Antwerpen 31 August 2011 |
|
Name |

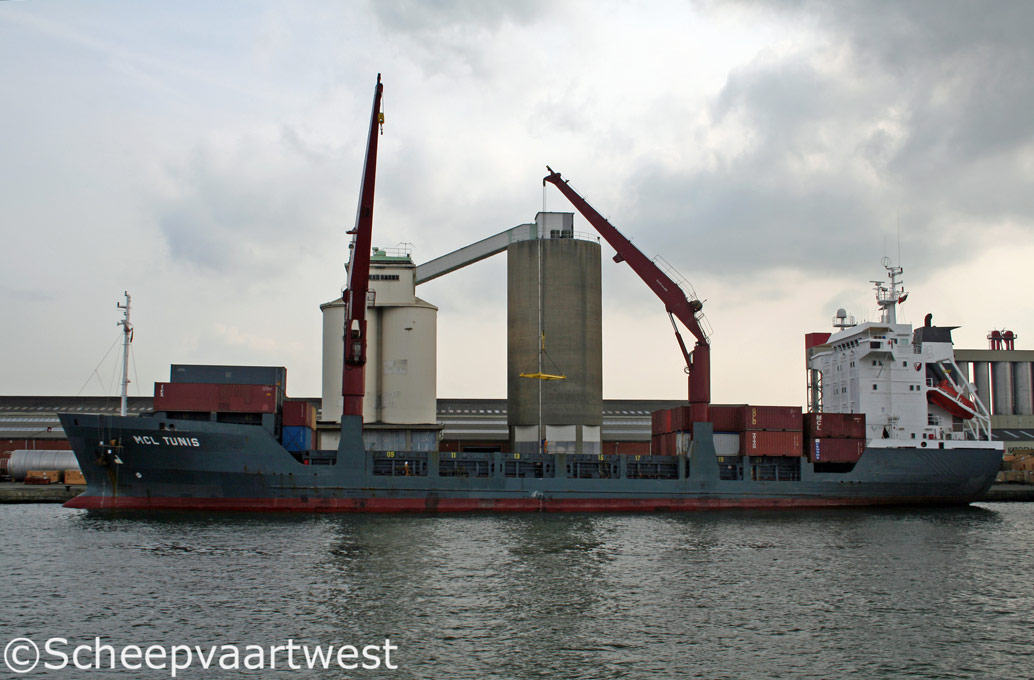

MCL TUNIS |
|
Previous names |
1996 - 17.01.1999 Sloman Commander 1999 - 27.02.2000 Comma 2000 - 04.12.2000 Delmas Congo 2000 - 04.04.2007 Sloman Commander 2007 - 04.11.2008 Nirint Commander 2008 - 11.04.2009 Kas Commander |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9051595 |
|
Official number |
4313 |
|
Call sign |
V2CR2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
4.489 t |
|
DWT |
6.006 t |
|
NT |
2.244 t |
|
Number of 20ft containers |
373 |
|
Length |
100,63 m overall 94,74 m registered |
|
Breadth |
17,80 m registered |
|
Draught |
6,64 m |
|
Forecastle |
20,55 m |
|
Poop |
12,40 m |
|
Depth |
8,20 m moulded |
|
Speed |
14,0 knots |
|
Built |
1996 |
|
Keel laid |
01.05.1993 |
|
Launch date |
23.02.1995 |
|
Date of completion |
04.1996 |
|
Builder |
Alexandria Shipyard |
|
Yard number |
21 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6 M 551 - 4 stroke 6 cylinder 450 x 550 mm diesel engine - 3.450 kW at 450 rpm Year of manufacture: 1992 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propeller |
1x Controllable pitch propeller - aft at 181 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 32,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 120,0 m² Year of manufacture: 1992 Manufacturer: GEKA Wärmetechnik Gottfried Kneifel GmbH & Co. KG |
|
Electric installations |
1x Plant 440/220 V - 310 kVA 1x Plant 440/220 V - 310 kVA 1x Plant 440 V - 540 kVA 1x Plant 440 V - 310 kVA |
|
Shaft generator |
1x 540 kVA |
|
Generators |
2x Main diesel generatorsets each 310 kVA |
|
Emergency generator |
1x Diesel generatorset 310 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS, forward |
|
Cargo capacity |
Grain: 7.597 m³ Bales: 7.310 m³ |
|
Water ballast |
2.668 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Lifting equipment |
2x Cranes each SWL 65,00 / 35,00 t |
|
Manager |
ESMERALDA Schiffahrts- Verwaltungsgesellschaft mbH |
|
Registered owner |
MS "GRETA" Schifffahrtsges. mbH + Co. KG |
