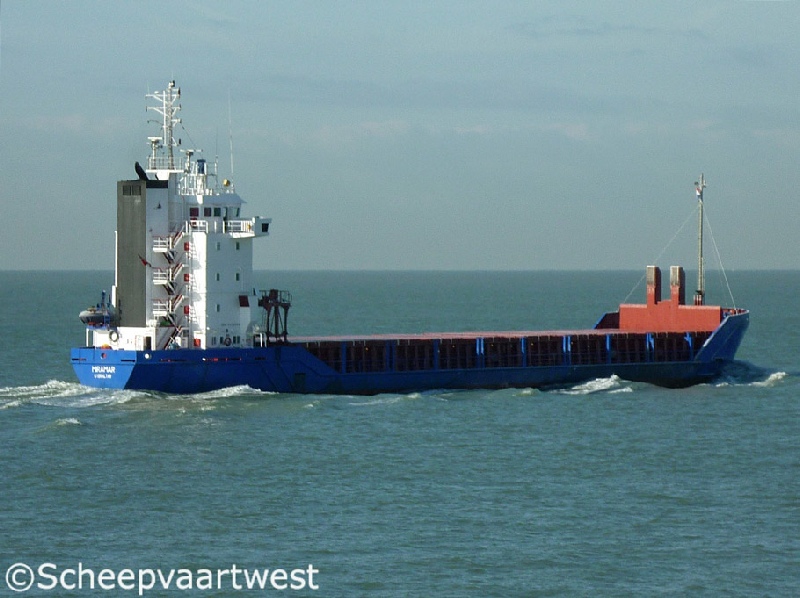

Miramar 03
Westerschelde 21 October 2011



Name

MIRAMAR

Previous names

1996 - 07.04.1996 Viator

07.04.1996 - 04.12.1996 Geestborg

Type

General cargo ship - Strengthened for heavy cargo, equipped for carriage of containers

IMO-number

9136204

Official number

733686

Call sign

ZDEL4

Previous call sign

DQQG

Flag

Gibraltar

Port of registry

Gibraltar

GT

2.840 t

DWT

4.135 t

NT

1.538 t

Number of 20ft containers

On deck: 150

In hold: 111

Total: 261

Container capacity 14 t

211

Reefer plug

10 on deck

Length

89,72 m overall

84,98 m registered

Breadth

13,60 m registered

Draught

5,713 m

Forecastle

8,74 m

Quarterdeck

15,04 m

Speed

12,0 knots

Built

1996

Keel laid

12.12.1994

Launch date

16.03.1996

Date of completion

13.04.1996

Builder

Bodewes Scheepswerf "Volharding" Foxhol B.V.
Scheepswervenweg 14
9607 PX Hoogezand
The Netherlands

Yard number

323

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

2 traversable bulkheads can be placed in 5 positions

Continuous decks

1

Main engine

1x Mak 6 M 453 C - 4 stroke 6 cylinder 320 x 420 mm diesel engine - 2.200 kW at 600 rpm

Year of manufacture: 1995

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 175 rpm

Electric Installations

2x Plant 380/220 V - 270 kVA

1x Plant 380 V - 365 kVA

1x Plant 380 V - 110 kVA

Shaft generator

1x 365 kVA / 292 kW at 1.500 rpm

Generators

2x Main diesel generatorsets each 270 kVA at 1.500 rpm

Emergency generator

1x Diesel generatorset 110 kVA at 1.500 rpm

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster fixed JASTRAM propeller - 200 kW, forward

Number of holds

1

62,88 x 11,00 x 8,35 m, boxshaped

Number of hatches

1

62.88 x 11.00 m

Hatch cover type

Pontoons moved by ship-owned Gantry-cranes

Strength

On deck: 1,6 t/m²

On tanktop: 15,0 t/m²

Cargo capacity

Grain & bales: 5.597 m³

Tank capacities

Water ballast: 1.559,5 m³

Fresh water: 68,9 m³

Fuel oil: 331 m³ / 314,5 t

Diesel oil: 56,5 m³ / 48 t

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Hold ventilation

12 air changes per hour

Gear

Gearless

Accommodation

10 persons

9 cabins

Manager

Briese Schiffahrts GmbH & Co. KG
Hafenstr. 12
26789 Leer
Federal Republic of Germany

Owner

Briese Schiffahrts GmbH & Co. KG MS "COLDAM"
Hafenstr. 12
26789 Leer
Federal Republic of Germany
