| Antwerpen 20 May 2008 |
|
Name |

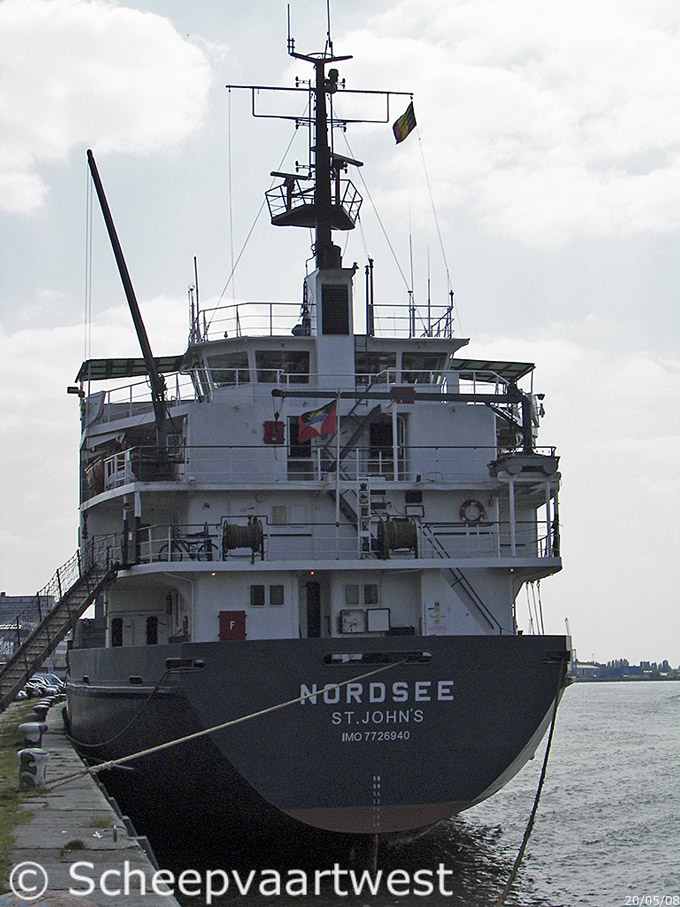

NORDSEE |
|
Previous name |
1978 - 1996 Nordsee 1996 - 1999 Seaboard Clipper 1999 Nordsee |
|
Type |
General Cargo ship - Equipped for carriage of containers |
|
IMO-number |
7726940 |
|
Call sign |
V2NW |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.579 t |
|
DWT |
2.954 t |
|
NT |
1.315 t |
|
Number of 20ft containers |
208 |
|
Length |
88,68 m overall 81,51 m between perpendiculars 82,11 m registered |
|
Breadth |
15,46 m overall |
|
Draught |
Summer: 4,848 m |
|
Forecastle |
9,25 m |
|
Poop |
12,45 m |
|
Freeboard |
2.050 mm |
|
Depth |
6,90 m moulded |
|
Speed |
14,0 knots |
|
Built |
1978 |
|
Keel laid |
03.04.1978 |
|
Launch Date |
30.04.1978 |
|
Date of completion |
06.1978 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 |
|
Yard number |
848 |
|
Hull type |
Double hull Double bottom |
|
Main engine |
Krupp MAK 8 M 453 AK - 4 stroke single acting 8 cylinder 320 x 420 mm diesel engine - 1.470 kW Built, 1978 Builder: Krupp MAK Maschinenbau GmbH Kiel - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
Steam boiler, oil fired Year of Manufacture: 1978 |
|
Electric installations |
1x 380/220 V - 420 kVA 1x 380 V - 280 kVA |
|
Shaft generator |
1x 280 kVA |
|
Generators |
2x Main diesel generatorsets each 210 kVA |
|
Bow thruster |
1x Transveres thruster JASTRAM - 184 kW forward |
|
Compressed air receivers |
1x Receiver 500 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar |
|
Cargo capacity |
Grain: 4.338 m³ Bale: 4.153 m³ |
|
Tank capacities |
Ballast: 1.525 m³ Fuel oil: 392 m³ |
|
Manager |
Jess U |
|
Registered owner |
Jess Schiffahrts |
|
Renamed |
2008 Efstration |
