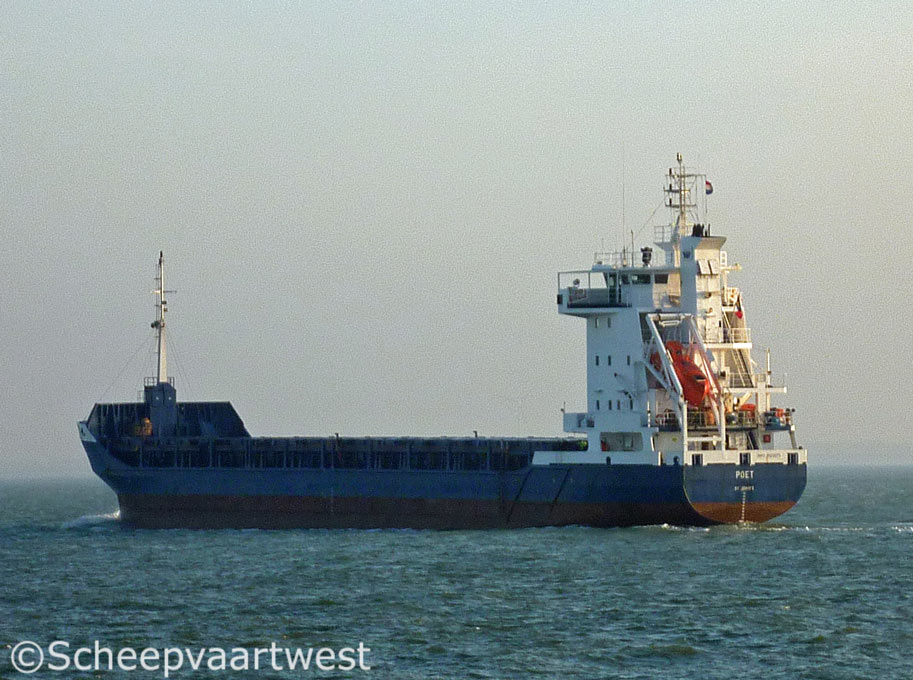

| Westerschelde 18 November 2011 |
|
Name |
POET |
|
Previous names |
1997 - 17.04.2000 German Feeder |
|
Type |
General cargo ship - Equipped for carriage of containers, strengthened for heavy cargo |
|
IMO-number |
9125073 |
|
Call sign |
V2LA9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.997 t |
|
DWT |
4.444 t |
|
NT |
1.741 t |
|
Number of 20ft containers |
On deck: 168 In hold: 129 Total: 297 |
|
Reefer capacity |
30 Reefer plugs on deck |
|
Length |
99,88 m overall 95,52 m between perpendiculars 95,80 m registered |
|
Breadth |
12,80 m |
|
Draught |
5,666 m |
|
Forecastle |
6,803 m |
|
Poop |
15,937 m |
|
Depth |
7,55 m moulded |
|
Speed |
13,0 knots |
|
Built |
1997 |
|
Keel laid |
29.03.1996 |
|
Launch date |
25.02.1997 |
|
Date of completion |
23.06.1997 |
|
Builder |
Slovenske Lodenice a.s. |
|
Yard number |
3004 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz MWM TBD 645 L 6 - 4 stroke 6 cylinder 330 x 450 mm diesel engine - 2.550 kW at 600 rpm Year of manufacture: 1995 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Reduction gear |
Reintjes AF 4425 K 41 |
|
Propeller |
1x Controllable pitch propeller BERG 710 HX/4 HDX 40 - aft at 304 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1996 |
|
Electric installations |
2x Plant 380/220 V - 210 kVA 1x Plant 380 V - 800 kVA 1x Plan t380 V - 49 kVA |
|
Shaft generator |
1x AEMSE 400 M4 - 800 kVA |
|
Diesel generators |
2x DEUTZ MWM TBD 234 V8 - 4 stroke 8 cylinder diesel engines each 190 kW at 1.500 rpm coupled with 2 PILLER NKT 220-4 generators each 210 kVA at 1.500 rpm 3x 400 Volt, 50 Hz |
|
Emergency generator |
1x DEUTZ F6L912 - 4 stroke 6 cylinder diesel engine 47 kW at 1.500 rpm coupled with PILLER NKT 50-4 generator 49 kVA at 1.500 rpm, 3x 400 Volt, 50 Hz |
|
Compressed air receivers |
2x SAUER & SOHN WP 22 L receivers each 355 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM Type BU-40F - 220 kW, forward |
|
Cargo capacity |
Grain: 5.841 m³ / 204.296 ft³ |
|
Number of holds |
1 |
|
Number of hatch |
2x System MacGREGOR Multifold crocodile Hatch 1: 37,95 x 10,20 x 8,17 m Hatch 2: 31,20 x 10,20 x 8,17 m |
|
Tank capacities |
Gas oil: 196 t Ballast water 1.702 t / 1.685 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg |
|
Hold ventilation |
6 times |
|
Manager |
Wessels Reederei GmbH & Co. KG |
|
Owner |
MS "GERMAN FEEDER" WESCO Shipping GmbH & Co. KG |
