| Spijkenisse 02 April 2011 |
|
Name |

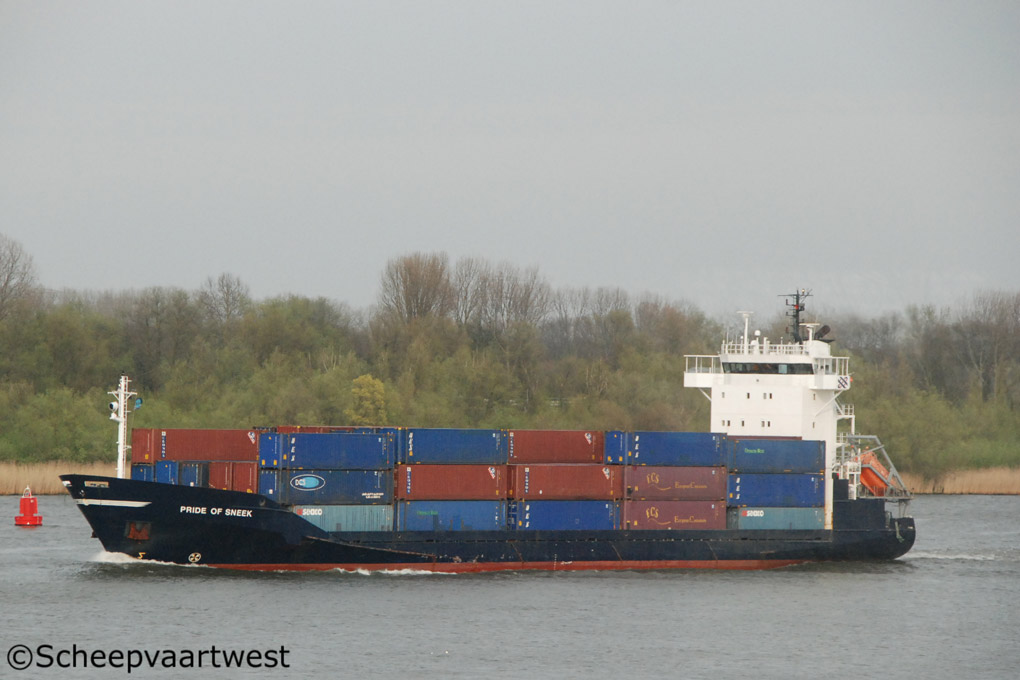

PRIDE OF SNEEK |
|
Previous names |
1999 - 2004 Ute 2004 - 2009 Ute S |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9189574 |
|
Call sign |
PBVV |
|
Flag |
The Netherlands |
|
Port of registry |
Sneek |
|
GT |
2.988 t |
|
DWT |
4.814 t |
|
NT |
1.311 t |
|
Number of 20ft containers |
366 |
|
Length |
99,49 m overall 62,19 m registered |
|
Breadth |
16,90 m |
|
Draught |
5,91 m |
|
Forecastle |
7,44 m |
|
Depth |
7,55 m |
|
Speed |
15,0 knots |
|
Built |
1999 |
|
Keel laid |
18.02.1998 |
|
Launch date |
19.08.1998 |
|
Date of completion |
28.04.1999 |
|
Builder casco |
Navol S.A. |
|
Builder completion |
Kroger Werft GmbH & Co. KG Germany |
|
Yard number |
1545 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
3 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 12 V 28/32 - 4 stroke 12 cylinder 280 x 320 mm diesel engine - 2.940 kW at 775 rpm Year of manufacture: 1999 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller - aft at 231 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar Heating Surface: 15,2 m² Year of manufacture: 1998 |
|
Electric installation |
2x Plants each 440/220 V - 320 kVA 1x Plant 440 V - 783 kVA 1x Plant 440 V - 32 kVA |
|
Shaft generator |
1x 783 kVA |
|
Generators |
2x Main diesel generatorsets each 230 kVA |
|
Emergency generator |
1x Diesel generatorset 32 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 350 kW, forward |
|
Cargo capacity |
Grain:4.456 m³ Bales: 4.166 m³ |
|
Tank capacities |
Fuel oil: 254 m³ Ballast water: 1.661 m³ |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
|
Manager |
V.o.F. Orion |
|
Registered owner |
Pride of Sneek B.V. |
