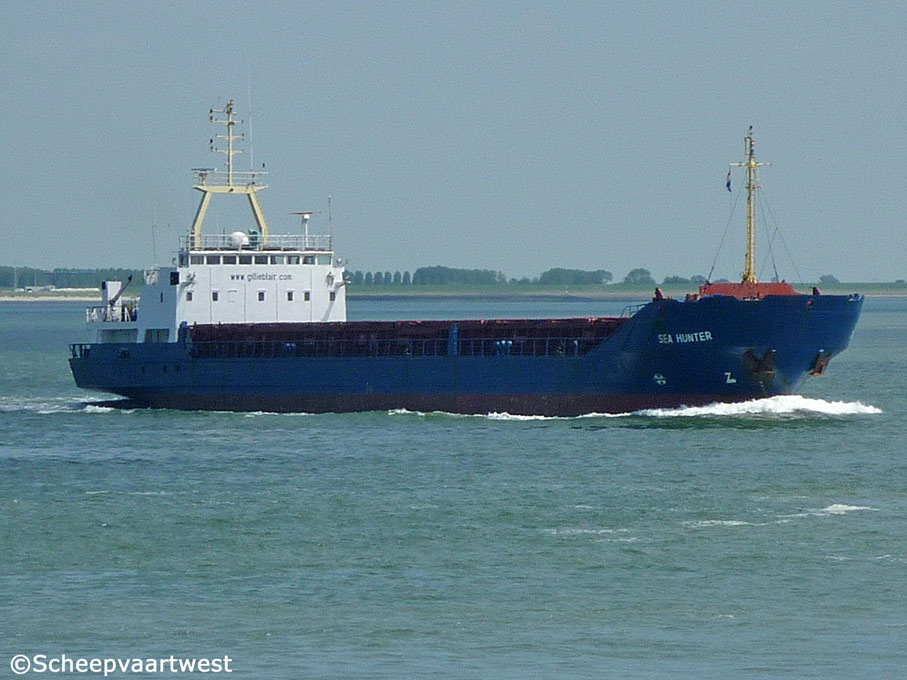

Sea Hunter 04

Westerschelde 14 June 2012

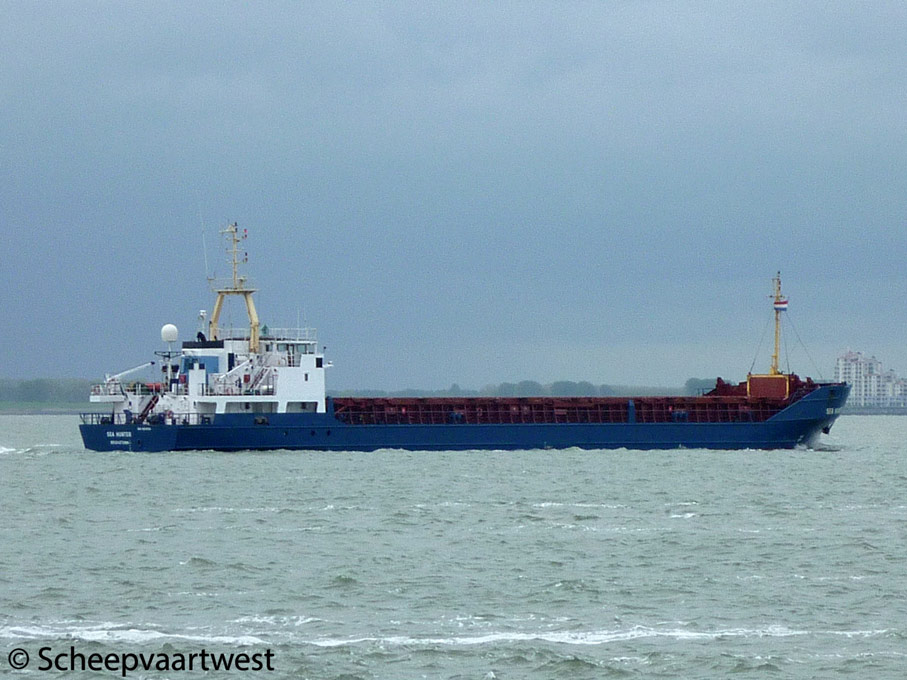

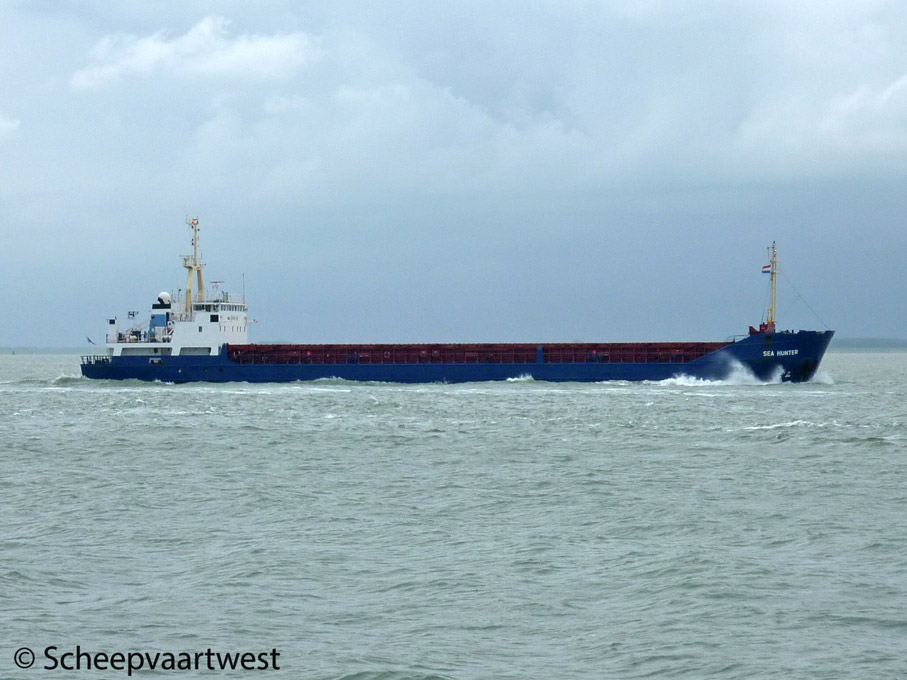

Sea Hunter 01   Sea Hunter 03
Westerschelde 15/05/12 Westerschelde 15/05/12



Name

SEA HUNTER

Previous names

1990 - 01/1995 Sirrah

1995 - 1999 Highland

1999 - 11/2007 Sirius P

Type

General cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

IMO-number

8914154

Call sign

8PUY

Flag

Barbados

Port of registry

Bridgetown

GT

2.443 t

DWT

3.148 t

NT

1.182 t

Number of 20ft containers

153

Length

87,44 m overall

82,83 m registered

Breadth

13,00 m registered

Draught

4,98 m

Forecastle

5,90 m

Freeboard

2.132 mm

Depth

7,10 m moulded

Speed

Loaded: 10,3 knots

Ballast: 11,5 knots

Built

1990

Keel laid

11/07/1990

Launch date

13/10/1990

Date of completion

20/12/1990

Builder

ENVC - Estaleiros Navais de Viana do Castelo, S.A.

Avenida Praia do Norte

4901-851 Viana do Castelo

Portugal

Yard number

155

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

4

Movable bulkhead

2

Continuous decks

1

Main engine

1x MAN-B&W 6L28/32A - 4 stroke 6 cylinder 280 x 320 mm combustion engine 835 kW at 750 rpm

Year of manufacture: 1990

Manufacturer: MAN B&W Diesel A/S Frederikshavn

Niels Juels Vej 15

9900 Frederikshavn

Kingdom of Denmark

Propellers

1x Controllable pitch propeller - aft at 194 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

Year of manufacture: 1990

Electric installations

2x Plants each 380/220 V - 169 kVA

1x Plant 380 V - 270 kVA

1x Plant 380 V - 90 kVA

Shaft generator

1x 270 kVA

Generators

2x Main diesel generatorsets each 169 kVA

Emergency generator

1x Diesel generatorset 90 kVA

Compressed air receivers

3x Receivers each 150 litres - 30,0 bar

1x Receiver 100 litres - 15,0 bar

1x Receiver 100 litres - 7,0 bar

Bow thruster

1x Transverse thruster HATLAPA - 130 kW, forward

Number of holds

1

Dimensions: : 57,40 x 10,20 x 8,20 m

Hatch type

Kvaerner Folding Type

Cargo capacity

Grain: 4.576 m³ / 161.000 ft³

Water ballast

1.597 m³

Anchor equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Diameter: 34 mm

Manager

Torbulk Ltd.

Royal Dock Chambers Flour Square

Grimsby, DN31 3LW Lincolnshire

United Kingdom

Operator

Boddingtons Shipping Ltd.

Braintree, Essex

United Kingdom

Registered owner

Torbulk Ltd.

Royal Dock Chambers Flour Square

Grimsby, DN31 3LW Lincolnshire

United Kingdom

Renamed

03/2021 Anastasia K

Greece - Call sign: SVB2749

Latest data adjustment

08 April 2021
