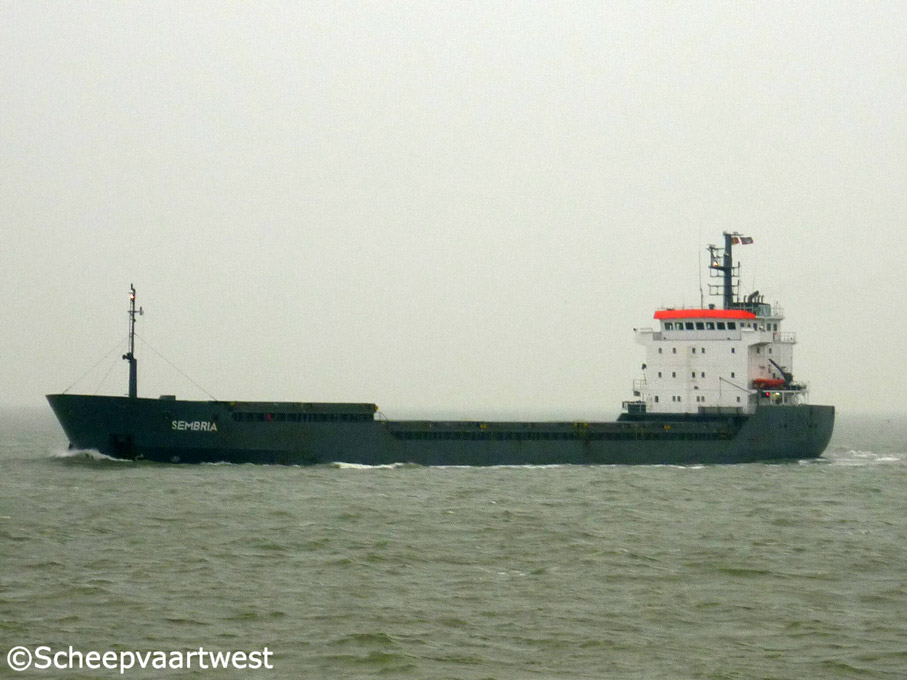

| Westerschelde 18 January 2012 |
|
Name |
SEMBRIA |
|
Previous names |
1998 - 05/2011 Alina |
|
Type |
Multi-Purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9147875 |
|
Call sign |
V2QG7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
5.381 t |
|
DWT |
7.580 t |
|
NT |
2.626 t |
|
Number of 20ft containers |
375 |
|
Length |
107,57 m overall 103,12 m registered |
|
Breadth |
18,20 m registered |
|
Draught |
6,63 m |
|
Air Draft |
33,00 m draught max. |
|
Forecastle |
29,70 m |
|
Poop |
13,80 m |
|
Depth |
9,00 m moulded |
|
Speed |
11,5 knots |
|
Built |
1998 |
|
Keel laid |
01/10/1996 |
|
Launch date |
10/10/1997 |
|
Date of completion |
22/05/1998 |
|
Builder |
Turkiye Gemi Sanayii A.S. Halic Tersanesi c/o Gema Maritime Industry Inc. Fahrettin Kerim Gökay Cad. Ortaklar is Merkezi 71/45 Hasanp. Kadiköy 81040 Istanbul Turkey |
|
Yard number |
241 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S26 MC - 2 stroke 6 cylinder 260 x 980 mm combustion engine 2.400 kW / 3.263 hp at 250 rpm Year of manufacture: 1997 Manufacturer: MAN B&W Diesel A/S Frederikshavn Niels Juels Vej 15 9900 Frederikshavn Kingdom of Denmark |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Water heater, oil fired - 5,5 bar Year of manufacture: 1996 |
|
Electric installations |
2x Plant each 440/220 V - 312 kVA 1x Plant 440 V - 312 kVA |
|
Generators |
2x Main diesel generatorsets each 312 kVA |
|
Emergency generator |
1x Diesel generatorset 312 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 170 kW, forward |
|
Number of holds |
3 Dimensions: Hold 1: 20,30 x 6,35 - 15,10 x 10,62 m Hold 2: 28,60 x 15,10 x 8,92 m Hold 3: 24,60 x 15,10 - 9,70 x 8,92 m |
|
Cargo hold capacity |
Grain: 9.729 m³ / 350.000 ft³ Bales: 345.000 ft³ |
|
Number of hatches |
3 Dimensions: Hatch 1: 17,49 x 15,20 m Hatch 2: 25,89 x 15,20 m Hatch 3: 23,09 x 15,20 m |
|
Max permitted loads |
Tanktop: Steel floored - max. load 15,0 t/m² |
|
Tank capacities |
Fuel oil: 537 m³ Ballast water: 2.358 m³ |
|
Anchor Equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m Diameter: 46 mm |
|
Manager |
Alpha Shipping Company SIA 7, Visbijas prospekts 1014 Riga Latvia |
|
Registered owner |
Medea Shipping Company Limited 60, Nevis Street St. Johns Antigua and Barbuda |
|
Renamed |
02/2015 Lady Debora Antigua & Barbuda, St. John’s - Call sign: V2QG7 reg. owner: Hadar Management Ltd. Manager: Mestex Shipping & Trading Ltd. |
|
Latest data adjustment |
16 November 2020 |
