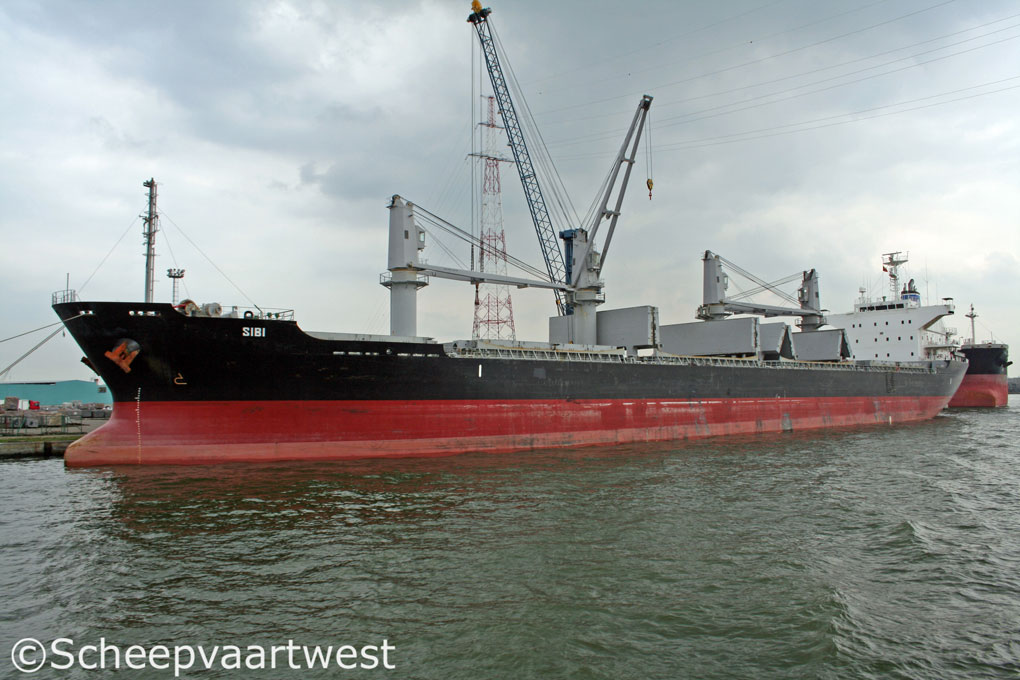

| Antwerpen 31 Augst 2011 |
|
Name |
SIBI |
|
Previous names |
Panarrow Tri Arrows |
|
Type |
Bulk carrier |
|
IMO-number |
9519224 |
|
Official number |
368044 |
|
Call sign |
AQQH |
|
Flag |
Pakistan |
|
Port of registry |
Karachi |
|
GT |
17.018 t |
|
DWT |
28.442 t |
|
NT |
10.109 t |
|
Length |
169,37 m overall |
|
Breadth |
27,20 m |
|
Draught |
9,819 |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Freeboard |
Summer: 3.825 mm |
|
Depth |
13,60 m moulded |
|
Built |
2009 |
|
Keel laid |
20.02.2009 |
|
Launch date |
30.07.2009 |
|
Date of completion |
28.09.2009 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters |
|
Yard number |
1550 |
|
Main engine |
1x 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine - 5.850 kW at 129,0 rpm Manufacturer: Makita Corporation |
|
Number of screws |
1 |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,07 t/h Manufacturer: Miura Co., Ltd. |
|
Diesel generators |
4x Main diesel generatorsets each 1.715 kVA |
|
Cargo capacity |
Grain: 37.320 m³ Bales: 35.742 m³ |
|
Tank capacities |
Fuel oil: 1.369 m³ Fresh water: 308 m³ Water ballast: 8.261 m³ |
|
Cargo gear |
4x Cranes - SWL 30,7 t each |
|
Lifting equipment |
1x Crane - SWL 0,9 t 1x Crane - SWL 1,5 t |
|
Manager |
Pakistan National Shipping Corporation |
|
Registered owner |
Sibi Shipping (Private) Limited |
