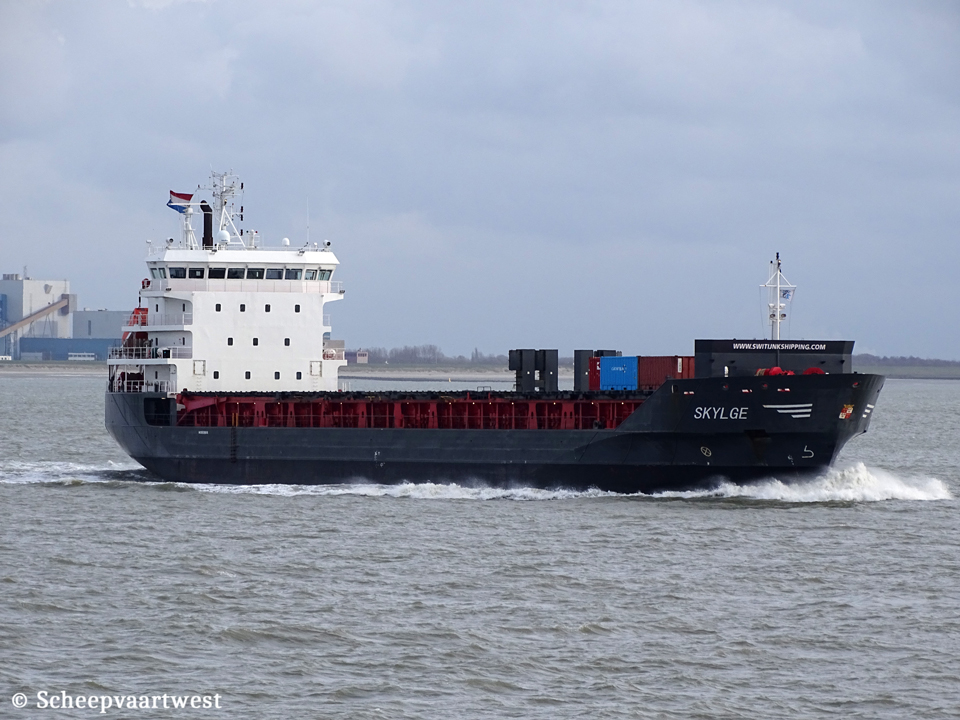

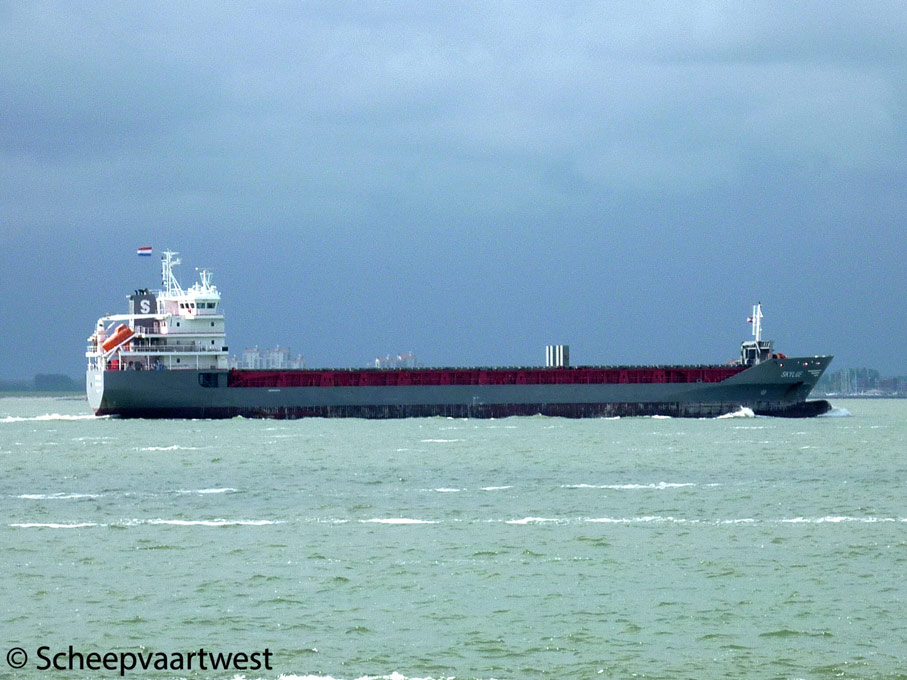

Westerschelde 07 May 2019 |
 |
 |
 |
 |
 |
 |
|||||

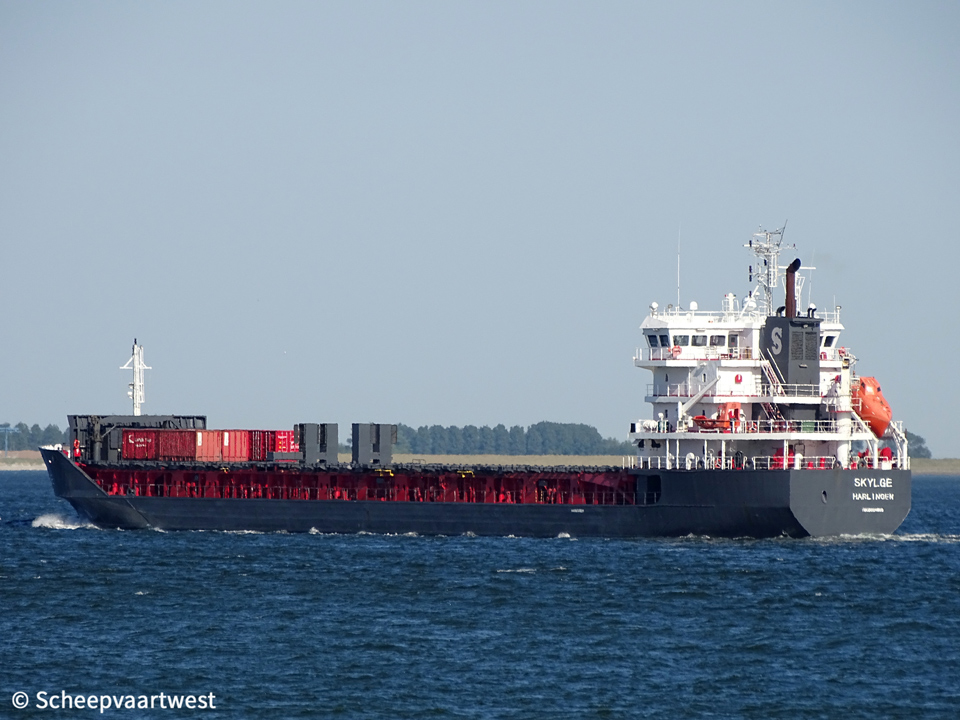

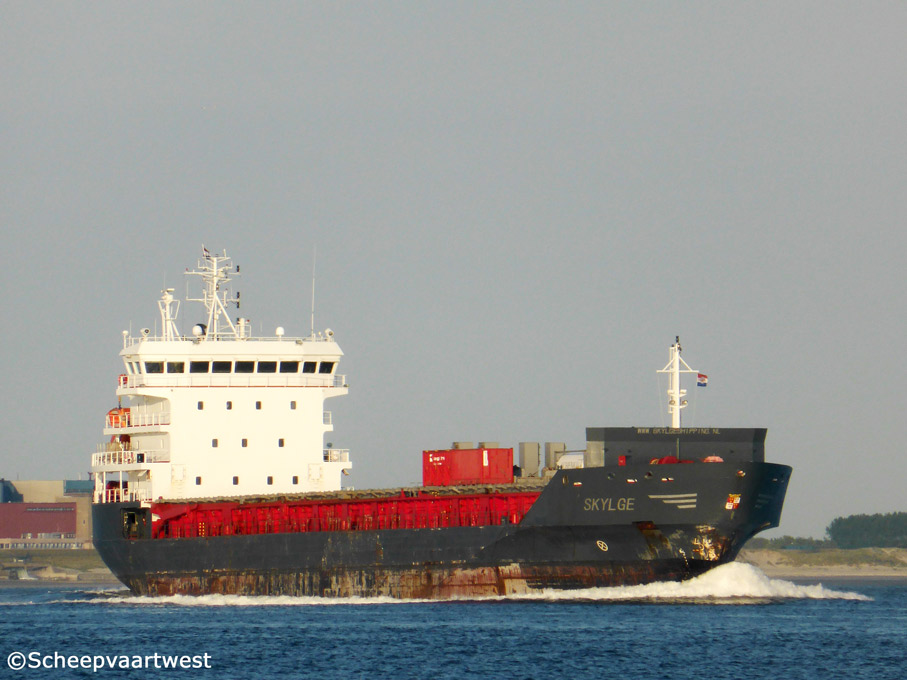

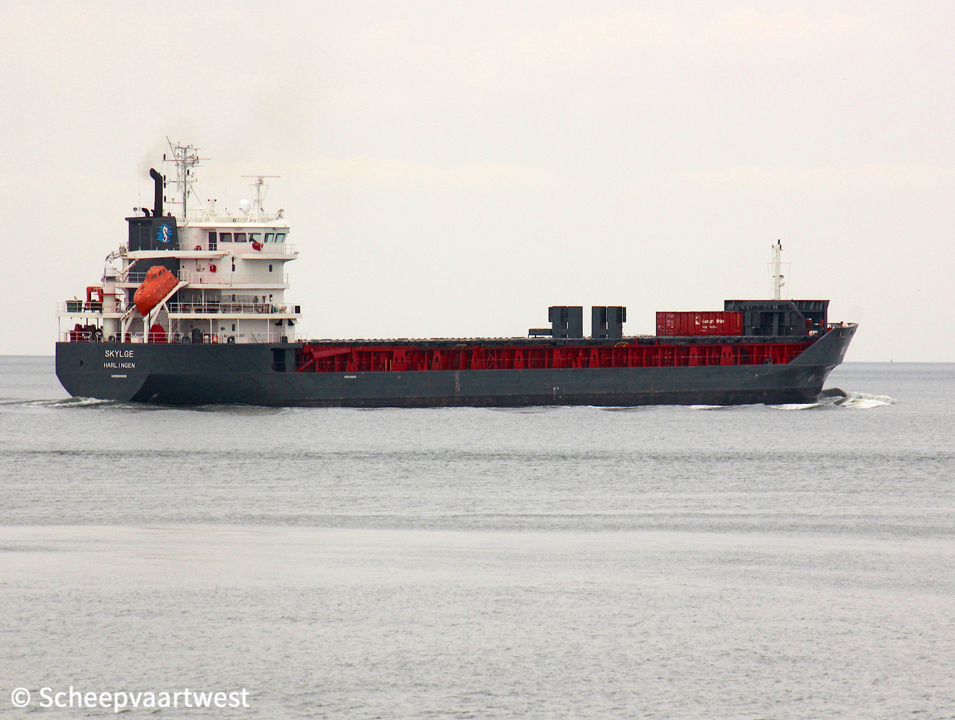

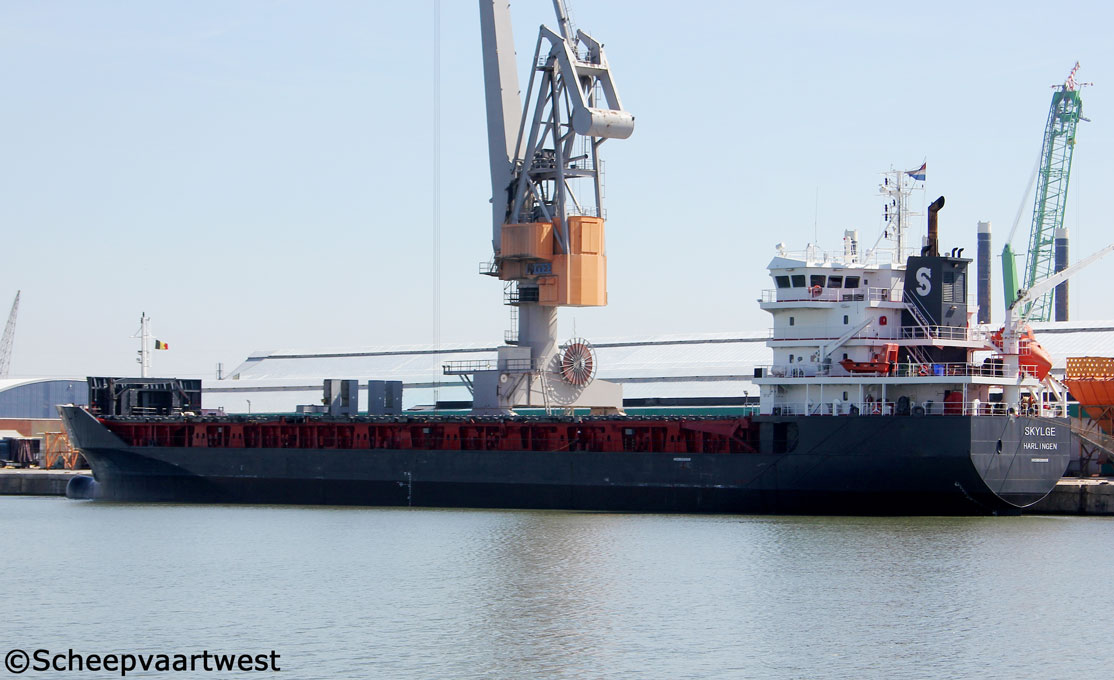

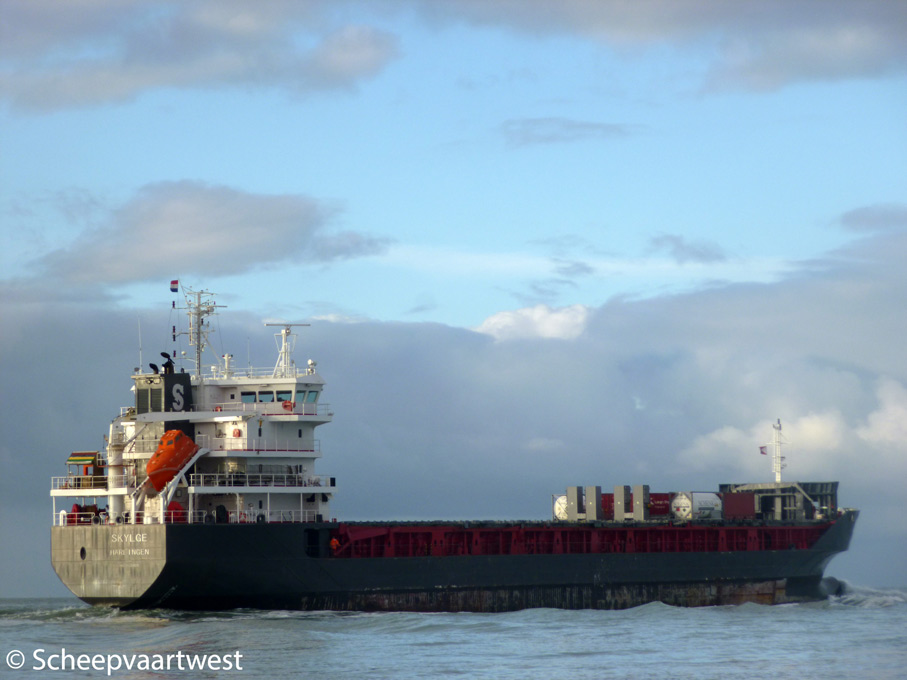

| Westerschelde 07/05/19 | Westerschelde 23/06/14 | Westerschelde 15/02/12 | Westerschelde 26/11/13 | Westerschelde 26/11/13 | Antwerpen 21/04/15 | |||||
 |
 |
 |
||||||||

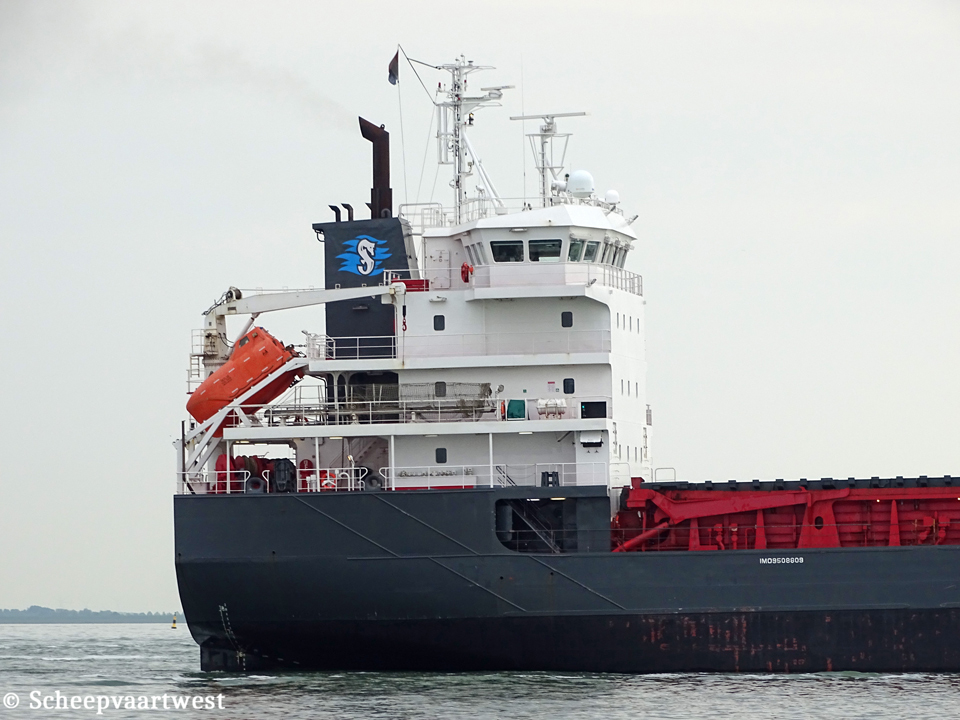

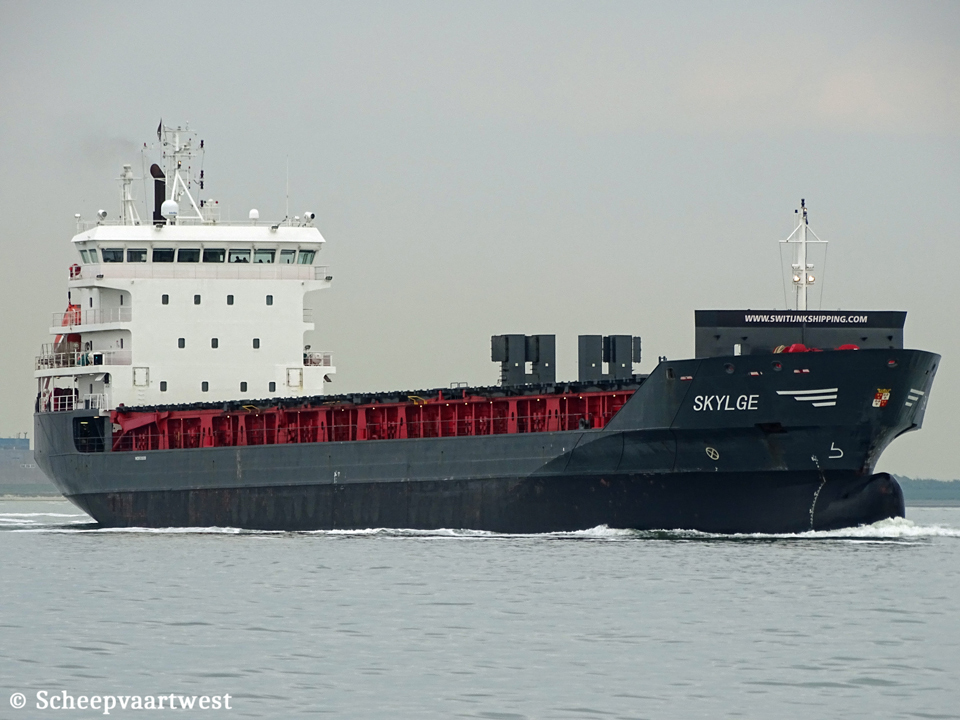

| Westerschelde 01/07/18 | Terneuzen 11/07/19 | Westerschelde 17/01/20 | ||||||||
|
Name |
SKYLGE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9508809 |
|
Call sign |
PBVJ |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
GT |
6.120 t |
|
DWT |
7.616 t |
|
NT |
2.959 t |
|
Number of 20ft containers |
412 |
|
Reefer capacity |
24 |
|
Length |
122,11 m overall 115,40 m between perpendiculars 116,32 m registered |
|
Breadth |
16,60 m over all 16,50 m registered |
|
Draught |
Summer: 7,20 m |
|
Air draft |
27,00 m |
|
Forecastle |
9,90 m |
|
Poop |
15,71 m |
|
Freeboard |
2.812 mm |
|
Depth |
10,00 m moulded |
|
Speed |
14,0 knots |
|
Built |
2010 |
|
Keel laid |
09/06/2008 |
|
Launch date |
22/09/2009 |
|
Date of completion |
19/03/2010 |
|
Builder |
Zhejiang Hongxin Shipbuilding Co., Ltd. Jiang Kou Dao Tou Huangyan Taizhou, 318020 Zhejiang People's Republic of China |
|
Yard number |
HX200716 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Movable bulkhead |
1x In 4 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 Stroke single acting 8 cylinder 320 x 480 mm combustion engine 4.000 kW / 5.435 hp at 600 rpm Year of manufacture: 2008 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 165 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 24,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 98,4 m² Year of manufacture: 2008 Manufacturer: Apparate- und Kesselbau AKB GmbH Baiertaler Str. 98 69168 Wiesloch Federal Republic of Germany |
|
Electric installations |
2x Plants each 400 V - 475 kVA 1x Plant 400 V - 813 kVA 1x Plant 400 V - 115 kVA |
|
Shaft generator |
1x 813 kVA |
|
Generators |
2x MAN main diesel generatorsets each 475 kVA - 380 kW - 602 hp |
|
Emergency generator |
1x MAN diesel generatorset 115 kVA - 92 kW - 149 hp |
|
Compressed air receivers |
2x Receivers each 250 litres - 33,0 bar 1x Receiver 250 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster SCHOTTEL - 450 kW, forward |
|
Number of holds |
2x Type box |
|
Hold dimensions |
Hold 1: 27,30 x 13,50 x 11,00 m Hold 2: 50,40 x 13,50 x 11,00 m |
|
Number of hatches |
2 |
|
Hatch cover |
Folding (Mac Gregor) |
|
Cargo capacity |
380.940 ft³ |
|
Strength |
Max tweendeck: 3,5 t/m² Hatch cover: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Heavy fuel oil: 500 t Marine gas oil: 82,5 t Fresh water: 68 t Lub oil: 24,8 t Sludge: 14,5 t Dirty oil: 9,60 t |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m Diameter: 43 mm |
|
Cargo gear |
None |
|
Crew size |
13 |
|
Manager |
Wagenborg Shipping B.V. Harlingen The Netherlands |
|
Registered owner |
Skylge Shipping B.V. Harlingen The Netherlands |
|
Latest data adjustment |
28 November 2022 |
