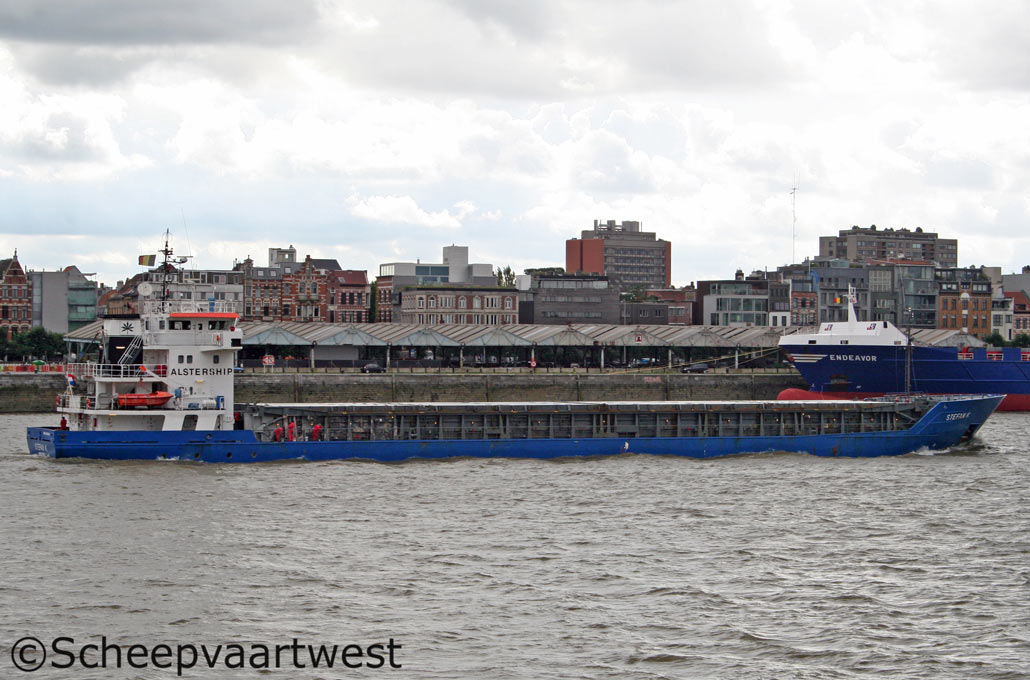

| Antwerpen 27 August 2011 |
 |

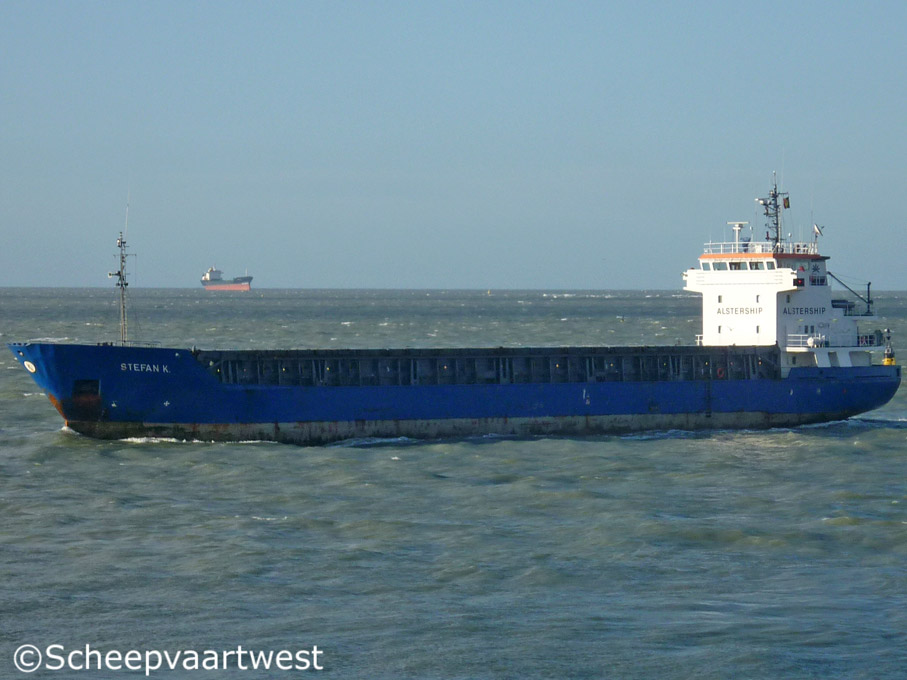

| Westerschelde 18/12/11 |
|
Name |
STEFAN K |
|
Type |
General cargo - Boxshaped single decker - Multi-purpose |
|
IMO-number |
9006394 |
|
Call sign |
PBER |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flag |
1995 - 2001 Austria |
|
GT |
2.449 t |
|
DWT |
Summer: 3.710 t |
|
NT |
1.380 t |
|
Number of 20ft containers |
180 |
|
Length |
87,90 m overall 81,84 m between perpendiculars |
|
Breadth |
12,80 m moulded |
|
Draught |
Max: 5,47 m |
|
Forecastle |
6,40 m |
|
Depth |
7,10 m moulded |
|
Speed |
Max: 12,0 knots Service: 10,5 knots |
|
Built |
1995 |
|
Keel laid |
14/12/1993 |
|
Launch date |
02/12/1994 |
|
Date of completion |
04/1995 |
|
Builder |
Peene-Werft Werften GmbH |
|
Yard number |
414 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 - Which 2 movable bulkheads |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBV 8M628 - 4 stroke single acting 8 cylinder 240 x 280 mm combustion engine 1.500 kW / 2.050 hp at 900 rpm Year of Manufacture: 1994 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG Mannheim Federal Republic of Germany |
|
Propeller |
1x Solid propeller - aft at 228 rpm |
|
Boiler |
1x Water heater, oil fired - 4,0 bar Heating surface: 4,71 m² Year of manufacture: 1994 |
|
Electric installations |
1x Plant 380/220 V - 210 kVA 1x Plant 380/220 V - 210 kVA 1x Plant 380 V - 72 kVA |
|
Generators |
2x Main diesel generatorsets each 210 kVA |
|
Emergency generator |
1x Diesel generatorset 72 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receive r30 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 184 kW / 250 hp, forward |
|
Cargo capacity |
Grain:4.666 m³ / 166.642 ft³ Bales: 4.635 m³ |
|
Hold |
1 Dimension: 56,55 x 10,20 x 7,99 m |
|
Hatch |
1 Dimension: 56,55 x 10,20 m |
|
Type of hatch covers |
Kvaerner Multifold |
|
Tank capacities |
Fuel: 122,8 m³ Fresh water: 57 m³ Water ballast: 1.642 m³ |
|
Hold ventilation |
6x Air exchanges / hour |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Manager |
Flagship Management B.V. Farmsum |
|
Previous managers |
1995 - 2001 Oesterreichischer Lloyd GmbH & Co. KG, Vienna - Austria |
|
Owner |
Rederij K & T Holland C.V. |
|
Previous owner |
1995 - 2001 Krohn Schiffahrts GmbH, Wien - Austria 2001 - 2015 Rufinia Beheer B.V., Delfzijl,- The Netherlands 2015 - 2017 Lian Shipping B.V., Appingedam - The Netherlands |
|
Renamed |
08/2019 Stefany Republic of panama, Panama City - Call sign: 3FNW7 Manager & owner: IB Carriers Corp., Majuro - Marshall Islands Renamed at: Novorossiejsk - Russia |
|
Latest data adjustment |
11 November 2019 |
