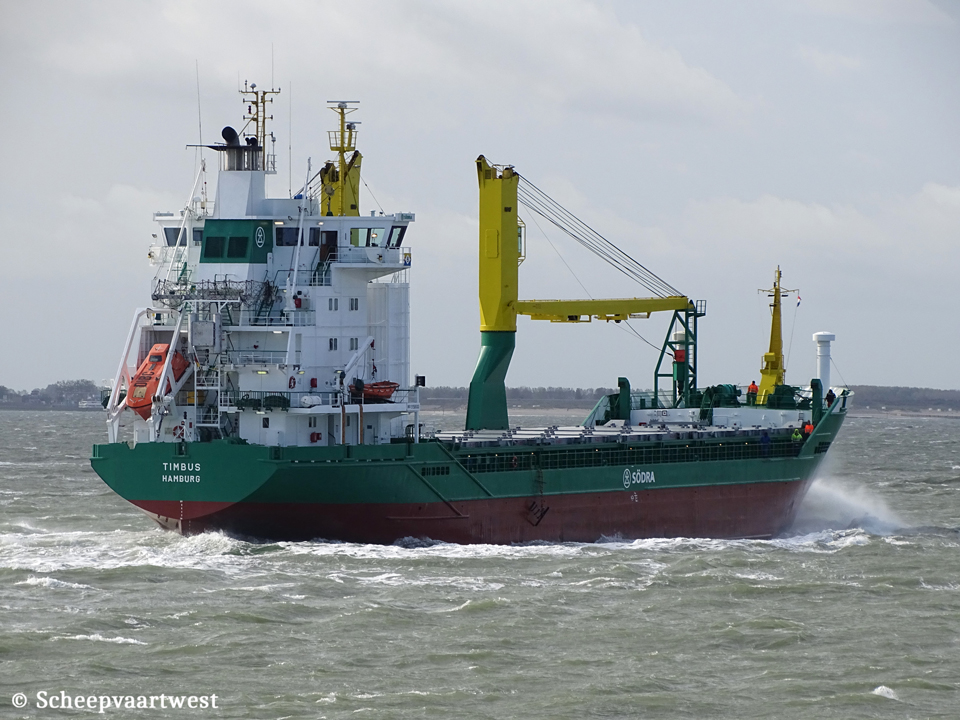

| Westerschelde 15 August 2020 |
 |
 |
 |
||

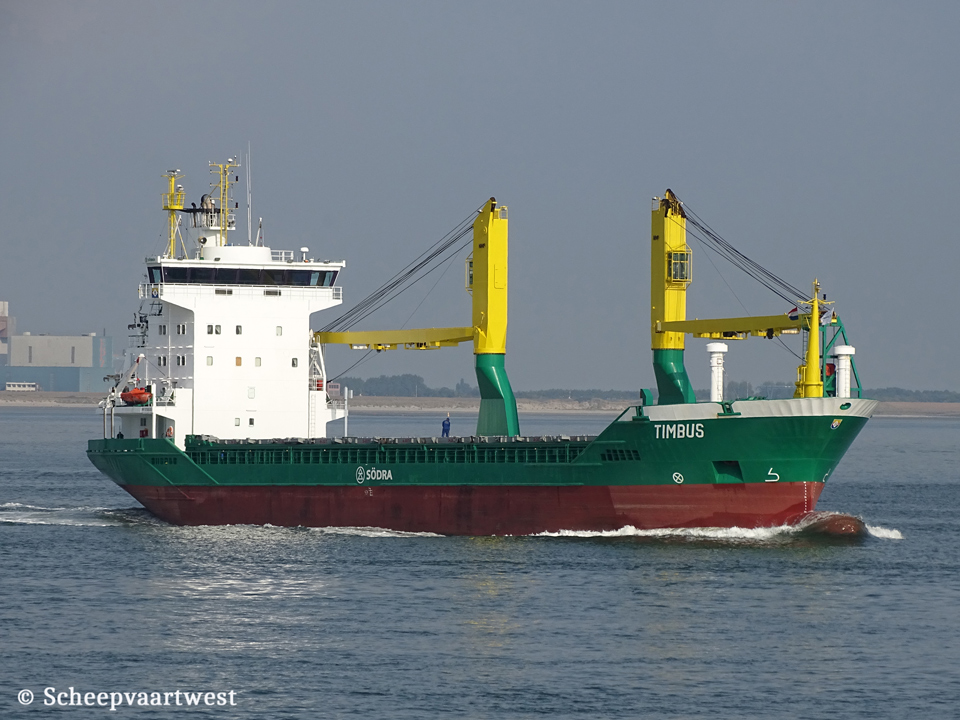

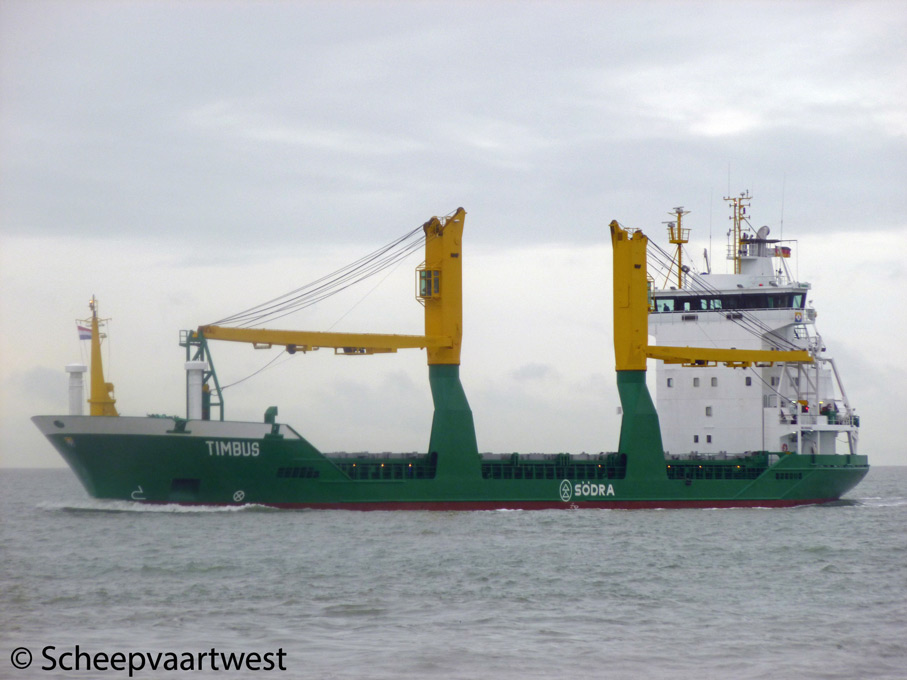

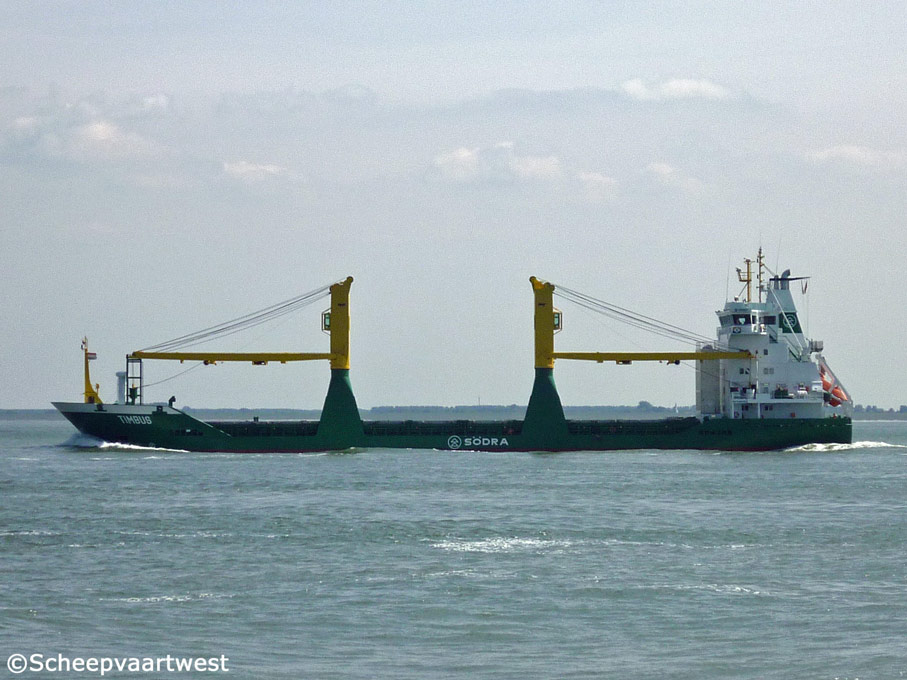

| Westerschelde 23/11/12 | Westerschelde 14/06/12 | Westerschelde 18/10/19 |
|
Name |
TIMBUS |
|
Previous names |
1999 - 12/1999 Brar Braren |
|
Type |
Multi-purpose general cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9198680 |
|
Call sign |
DIBC |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
4.230 t |
|
DWT |
6.389 t |
|
NT |
2.150 t |
|
Number of 20ft containers |
Under deck: 117 On deck: 197 Total: 314 |
|
Length |
99,91 m overall 92,44 m registered |
|
Breadth |
17,00 m registered |
|
Draught |
7,27 m |
|
Forecastle |
9,84 m |
|
Poop |
13,30 m |
|
Depth |
9,25 m |
|
Speed |
15,0 knots |
|
Built |
1999 |
|
Keel laid |
12/07/1994 |
|
Launch date |
06/11/1999 |
|
Date of completion |
12/1999 |
|
Builder |
Peterswerft Wewelsfleth GmbH & Co. KG Am Hafen 6 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
656 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
3 |
|
Main engine |
1x Krupp MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.222 bhp at 600 rpm Built: 1999 Builder: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 159 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Heating surface: 14,2 m² Year of Manufacture: 1999 |
|
Electric installations |
1x Plant 380/220 V - 374 kVA 1x Plant 380 V - 982 kVA 1x Plant 380 V - 140 kVA 1x Plant 24 V - 35 Ah |
|
Shaft generator |
1x 982 kVA |
|
Generators |
1x MAN B&W 6 L16/24 diesel generatorset 374 kVA |
|
Emergency generator |
1x Volvo TAMD 162 A diesel generatorset 140 kVA |
|
Batteries |
1x Battery for automation 35 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 300 kW, forward |
|
Number of holds |
1x Boxed |
|
Number of hatches |
1 28,10 x 14,00 m |
|
Cargo capacity |
Grain & bales: 7.137 m³ / 252.039 ft³ |
|
Tank capacities |
Fuel oil: 382 m³ Ballast water: 2.558 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m |
|
Cargo gear |
2x NMF deck cranes with lifting capacities up to SWL 35,0 t each |
|
Crew |
10 |
|
ISM & commercial manager |
Rörd Braren Bereederungs-GmbH & Co. KG Bielenberg 18 23577 Kollmar Federal Republic of Germany |
|
Operator |
Södra Shipping AB Växjö Sweden |
|
Registered owner |
MS "BRAR BRAREN" GmbH & Co. KG Care of Roerd Braren Bereederungs GmbH & Co KG , Bielenberg 18 23577 Kollmar Federal Republic of Germany |
|
Previous names & owners |
1999 - 12/1999 Brar Braren - Roerd Braren Bereederungs GmbH - Germany |
|
Latest data adjustment |
15 February 2022 |
