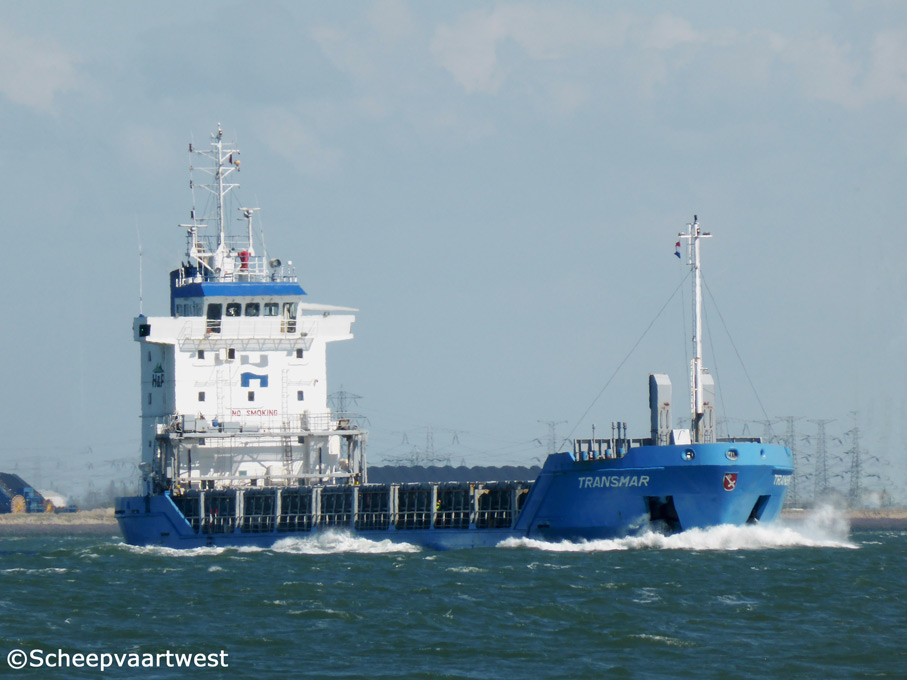

| Westerschelde 23 July 2017 |
 |
 |
 |
 |
|||

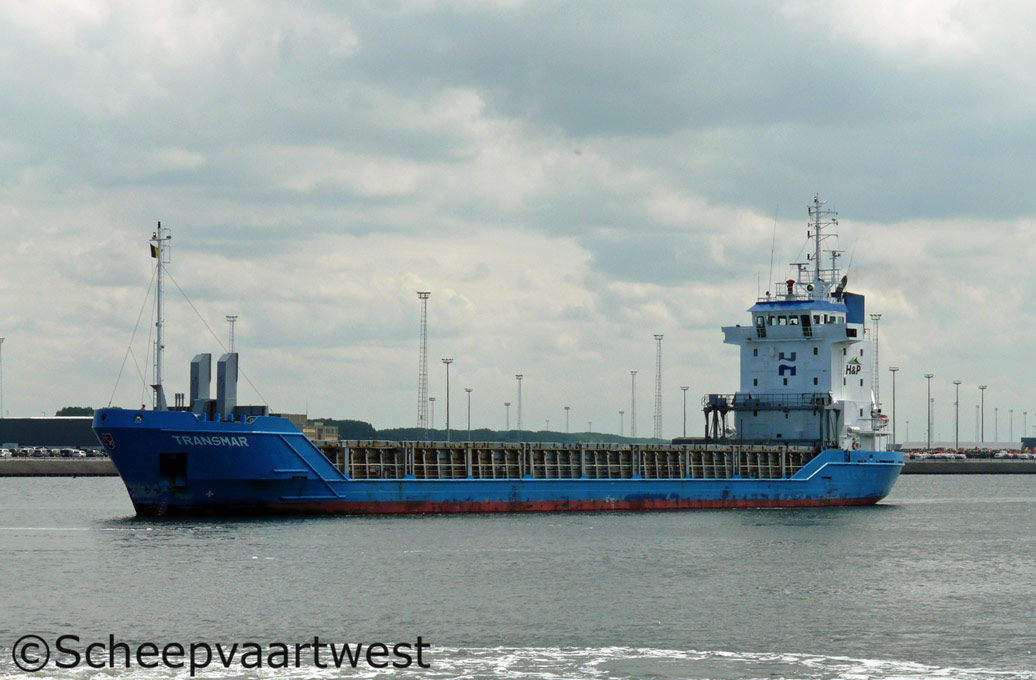

| Zeebrugge 19/07/11 | Zeebrugge 19/07/11 | Zeebrugge 19/07/11 | Westerschelde 30/04/15 | |||
|
Name |
TRANSMAR |
|
Type |
Multi-purpose cargo carrier - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9167332 |
|
Call sign |
YLRZ |
|
Flag |
Latvia |
|
Port of registry |
Riga |
|
Previous flags |
2000 Isle of Man 2004 Cyprus, Limassol - Call sign: P3WD9 2008 Antigua & Barbuda, St. John's - Call sign: V2DX4 2010 Gibraltar - United Kingdom - Call sign: ZDKA6 2014 - 2022 Cyprus, Limassol - Call sign: 5BDN4 |
|
GT |
2.820 t |
|
DWT |
Summer: 4.023 t Winter: 3.894 t |
|
NT |
1.503 t |
|
Light ship |
1.54 t |
|
Number of 20ft containers |
Hold: 111 Deck: 135 Total: 246 |
|
Container capacity 14t |
164 |
|
Reefer plugs |
20 |
|
Length |
89,72 m overall 84,98 m registered |
|
Breadth |
13,76 m overall 13,60 m registered |
|
Draught |
Summer: 5,694 m |
|
Air draft |
31,60 m |
|
Forecastle |
6,00 m |
|
Poop |
14,42 m |
|
Depth |
7,20 m moulded |
|
Speed |
11,5 knots |
|
Discharge |
Steel |
|
Built |
1998 |
|
Keel laid |
27/03/1997 |
|
Launch date |
07/03/1998 |
|
Date of completion |
08/04/1998 |
|
Builder |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
582 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Moveable bulkheads |
4x Moveable bulkheads - transversal to tweendeck |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 440 mm combustion engine 2.400 kW / 3.263 hp at 750 rpm Year of manufacture: 1998 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 165 rpm |
|
Electric installations |
1x Plant 380/220 V - 325 kVA 1x Plant 380/220 V - 325 kVA 1x Plant 380 V - 330 kVA 1x Plant 380 V - 120 kVA |
|
Shaft generator |
1x 330 kVA |
|
Generators |
2x Main diesel generatorsets each 325 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 200 kW, forward |
|
Number of holds |
1 Dimension: 62,88 x 11,0 x 8,35 m |
|
Hold capacity |
Grain / Bales: 5.628 m³ - 198.000 ft³ |
|
Number of hatches |
1 62,88 x 11,00 m |
|
Strength |
Hatch covers: 1,7 t/m² Tweendeck: 3,0 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 324 m³ Diesel oil: 56,5 m³ Water ballast: 1.719 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Crew |
9 |
|
Manager |
Held Bereederungs GmbH & Co. KG Gartenstr. 2 49733 Haren/Ems Federal Republic of Germany |
|
Operator |
Haren & Partner Maritime Services GmbH, Bremen, Germany |
|
Owner |
H & H Schiffahrts GmbH & Co. KG MS "ALLERTAL" Gartenstr. 2 49733 Haren/Ems Federal Republic of Germany |
|
Renamed |
05/2024 Ponem Antigua & Barbuda, St. John’s - Call sign: V2RD7 Owner: Ponem Shipping Ltd., Tallinn - Estonia. Manager: Atrica-Marine Ltd (Atrica-Marine OU) |
|
Latest data adjustment |
30 June 2024 |
