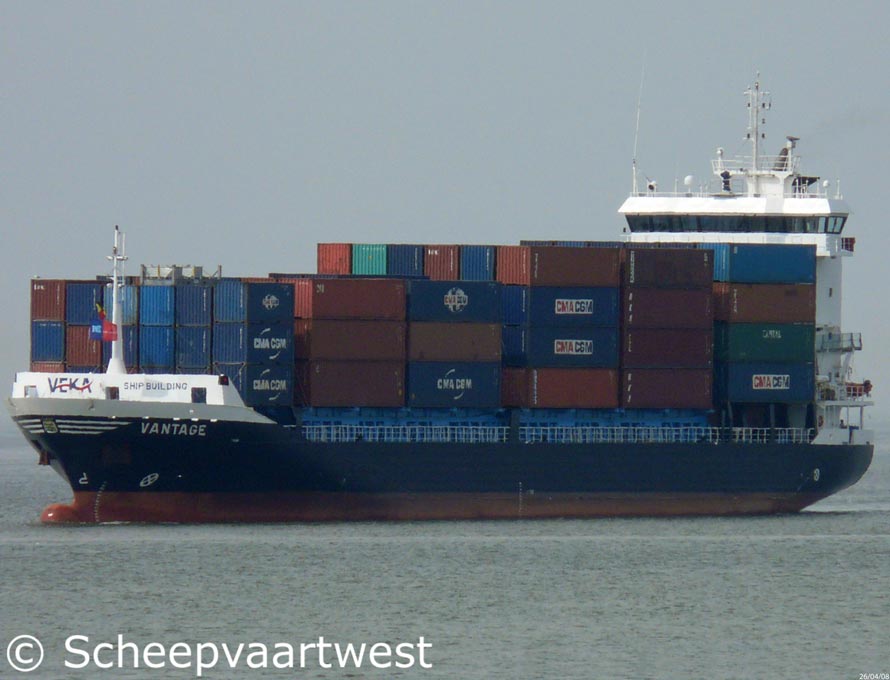

| Zeebrugge 26 April 2008 |
 |
| Zeebrugge 25/06/08 |
|
Name |
VANTAGE |
|
Type |
General Cargo ship - Containership |
|
IMO-number |
9375111 |
|
Call sign |
PBMC |
|
Flag |
The Netherlands |
|
Port of registry |
Werkendam |
|
GT |
3.925 t |
|
DWT |
Summer: 3.650 t |
|
NT |
1.333 t |
|
Number of 20ft containers |
Max. 354 |
|
Reefer capacity |
120 |
|
Length |
99,97 m overall 93,24 m between perpendiculars |
|
Breadth |
15,85 m moulded |
|
Draught |
Max: 5,65 m |
|
Freeboard |
3.850 mm |
|
Depth |
8,85 m moulded |
|
Speed |
15,0 knots |
|
Built |
2007 |
|
Keel laid |
19/05/2006 |
|
Launch date |
10/02/2007 |
|
Delivery date |
24/11/2007 |
|
Contractor |
Van Sluisveld Marine Constructions B.V. Heusden The Netherlands |
|
Builder casco |
Dongfeng Shipyard Hangzhou China |
|
Builder completed |
Veka Shipyard Lemmer The Netherlands |
|
Yard number |
738 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8R32LN - 4 stroke single acting 8 cylinder 320 x 250 mm combustion engine 3.280 kW / 4.459 hp at 750 rpm Built: 02/04/2007 Builder: Wärtsilä Finland OY, Vaasa Factory |
|
Electrical propulsion generator |
680 kW - 440 Volt |
|
Propeller |
1x Controllable pitch propeller - aft at 220 rpm Diameter: 3.200 mm |
|
Generators |
2x Cummins N14 D(M) main diesel engines each 385 hp at 1.500 rpm connected with 2 Marathon 433 PSL 6220 generators each 330 kVA / 264 kW |
|
Emergency generator |
1x Cummins 4BT 3.9 G4 diesel engine connected with generator Marathon 361 CSL 1602 - 60 kVA at 1.500 rpm |
|
Bow thruster |
Wärtsilä CT125H - 300 kW Diameter 1.250 mm |
|
Number of holds |
2 |
|
Cargo hold capacity |
Grain: 6.638 m³ |
|
Tank capacities |
Fuel: 430,77 m³ |
|
ISM & commercial manager |
VMS Ship Management BV Sijlweg 10 4251 NS Werkendam The Netherlands |
|
Owner |
Vantage CV Biesboschhaven Zuid 10A 4251 NM Werkendam Netherlands |
|
Last data adjustment |
14 January 2024 |
