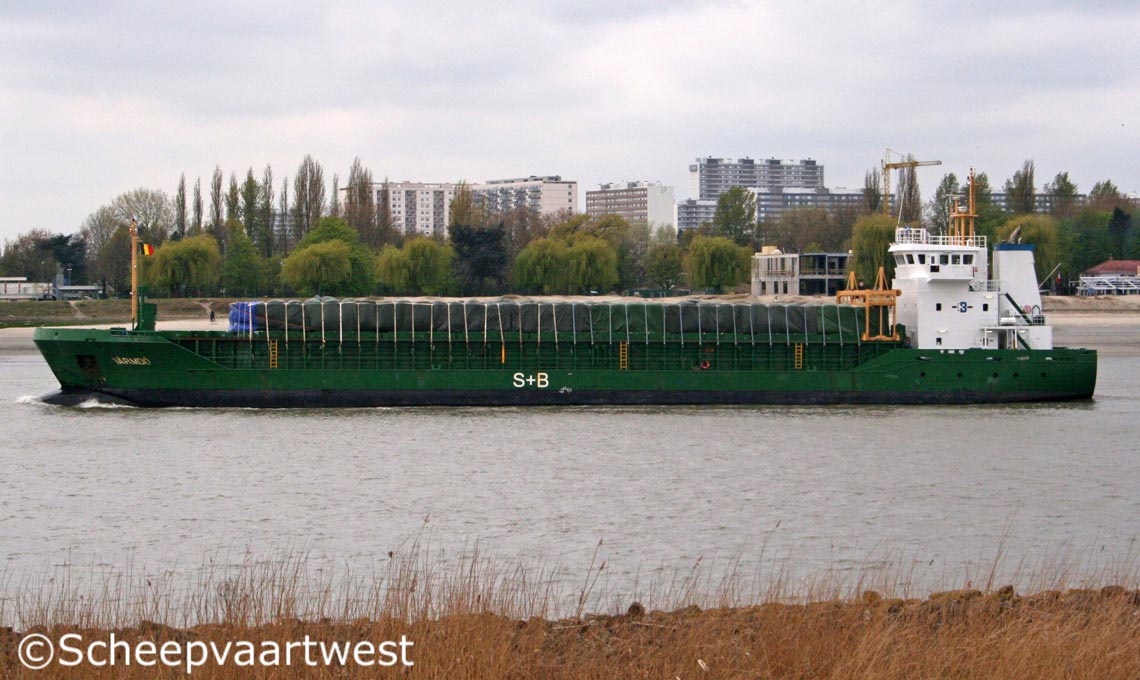

Varmdo 01
Antwerpen 19 April 2012

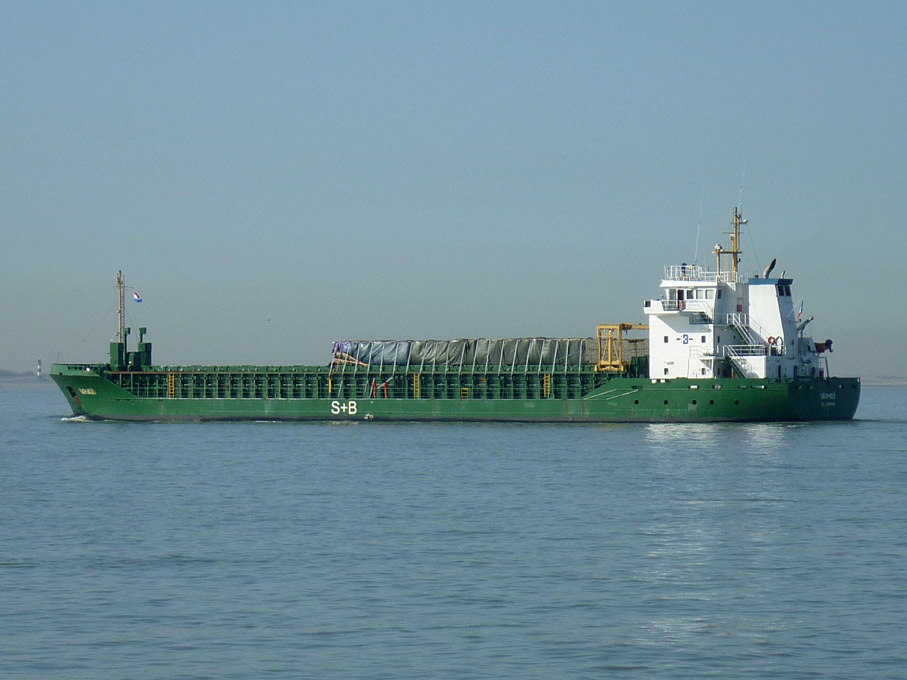

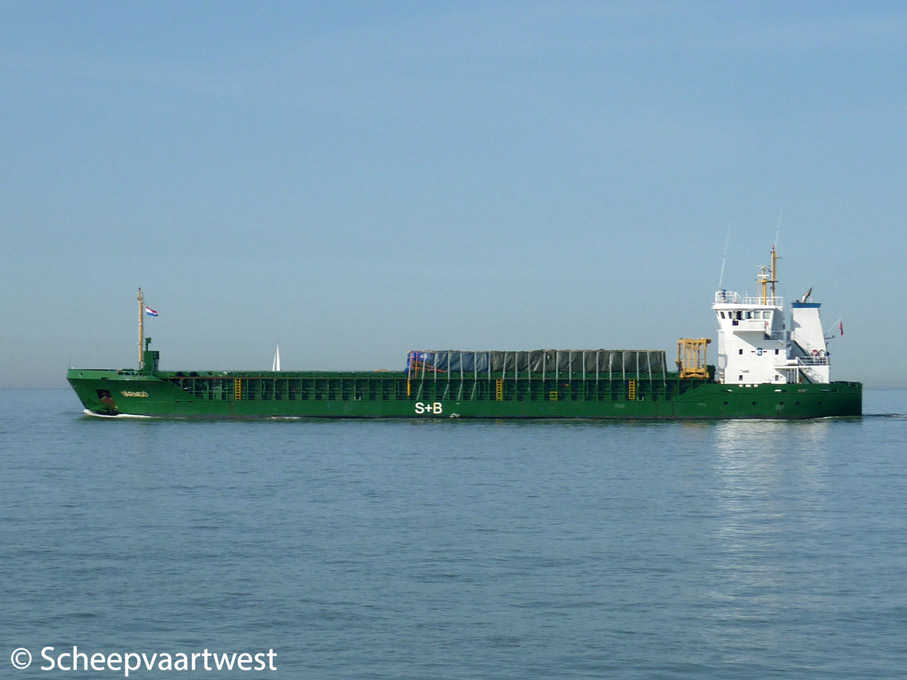

Värmdö 02   Värmdö 03
Westerschelde 27/03/12 Westerschelde 27/03/12



Name

VÄRMDÖ

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers, strengthened for heavy cargo

IMO-number

9290684

Call sign

V2OS4

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.183 t

DWT

4.501 t

NT

1.765 t

Number of 20ft containers

218

Reefer capacity

94

Length

89,98 m overall

85,19 m registered

Breadth

15,20 m registered

Draught

5,25 m

Forecastle

8,37 m

Bridge

51,75 m

Quarterdeck

15,00 m

Freeboard

1.358 m

Depth

6,60 m moulded

Speed

12,0 knots

Built

2004

Keel laid

13.06.2002

Launch date

22.02.2004

Date of completion

08.074.2004

Builder

Bodewes Shipyards B.V.
Werfkade 22
9601 LG Hoogezand
The Netherlands

Yard number

632

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

2

Continuous decks

1

Main engine

1x Caterpillar Mak 6 M 25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine- 1.850 kW at 750 rpm

Year of Manufacture: 2004

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of German

Propeller

1x Controllable pitch propeller - aft at 201 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Heating surface: 7,0 m²

Year of manufacture: 2004

Manufacturer: Carbofuel Officine Meccaniche S.p.A.
Via delle Brughiere angolo Via Sicilia
20020 Bienate di Magnago (Milano)
Italy

Electric installations

1x Plant 400/220 V - 175 kVA

1x Plant 400 V - 435 kVA

1x Plant 400 V - 175 kVA

Shaft generator

1x 435 kVA

Generators

1x Diesel generatorset 175 kVA

Emergency generator

1x Diesel generatorset175 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster, forward

Cargo capacity

6.393 m³

Largest Hatch

59,25 x 12,65 m

Anchor equipment

3x Anchors weight each 2.280 kg

Chain length: 467,50 m

Crew size

9

Manager

Hermann Buss GmbH & Cie KG
Hafenstr. 2
26789 Leer
Federal Republic of Germany

Operator

Schulte & Bruns GmbH & Co. KG
Deverhafen - Dockerhaus
26871 Papenburg
Germany

Owner

MS "VÄRMDÖ" Schiffahrts GmbH & Co. KG
Hafenstr. 2
26789 Leer
Federal Republic of Germany
