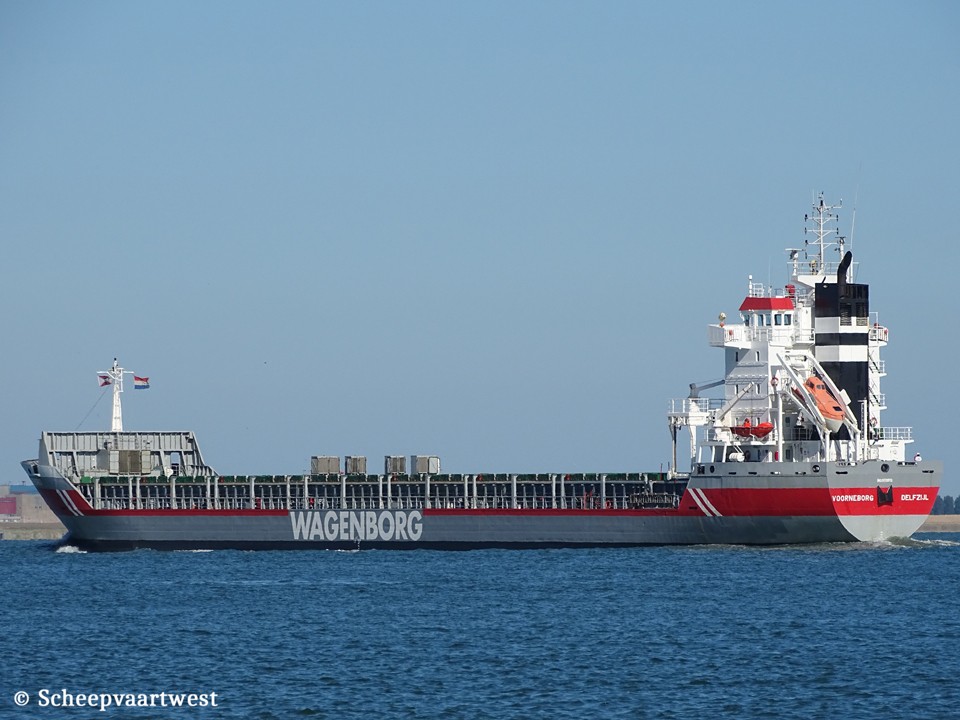

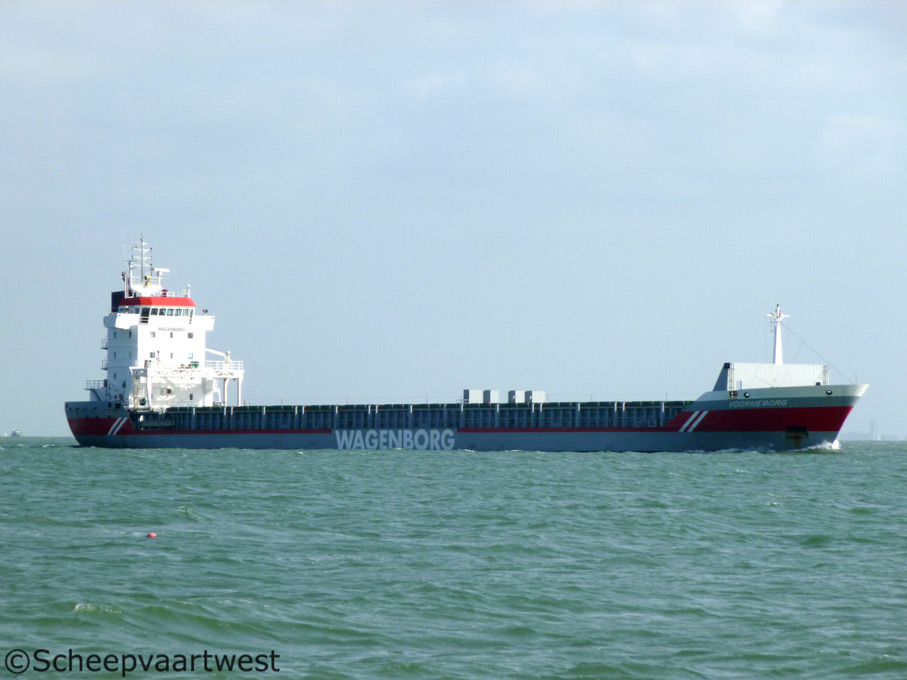

| Westerschelde 15 September 2012 |
 |
|
| Westerschelde 15/09/12 | |
|
Name |
VOORNEBORG |
|
Type |
Multi-purpose dry cargo carrier - heavy cargo - container ship Singledecker |
|
IMO-number |
9179373 |
|
Call sign |
PCGI |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.130 t |
|
DWT |
9.567 t |
|
DWCC |
Summer: 8.800 t Winter: 8.600 t |
|
NT |
3.608 t |
|
Number of 20ft containers |
548 |
|
Length |
132,23 m overall 124,59 m between perpendiculars |
|
Breadth |
15,87 m overall |
|
Draught |
Summer: 7,50 m Winter: 7.34 m |
|
Air draft |
33,43 m in ballast |
|
Freeboard |
2.612 mm |
|
Depth |
9,65 m moulded |
|
Speed |
Max: 16,0 knots |
|
Built |
1999 |
|
Keel laid |
30/06/1998 |
|
Launch date |
25/09/1999 |
|
Date of completion |
15/11/1999 |
|
Builder |
Bodewes Volharding Shipyard BV Hoogezand The Netherlands |
|
Yard number |
344 |
|
Hull material |
Steel |
|
Hull type |
Duoble skinned |
|
Movable blukheads |
2 |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä NSD 6R38 - 4 stroke single acting 6 cylinder 380 x 475 mm combustion engine 3.960 kW / 5.380 hp at 600 rpm Build: 1999 Builder: Wärtsilä NSD Nederland B.V., Zwolle - The Netherlands |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO Wiesloch 17,50 m² - 13,0 bar 1x CHR Wiesloch 55,00 m² - 13,0 bar |
|
Electric installation |
Power voltage: 440 V Lighting voltage: 250 V Frequency: 60 Hz |
|
Shaft generator |
1x 811 kVA - 649 kW |
|
Generators |
2x Main diesel generatorsets each 305 kVA - 244 kW - 353 hp |
|
Emergency generator |
1x Diesel generatorset 87 kVA - 70 kW - 109 hp |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2 Hold 1: 39,90 x 13,20 x 10,84 m Hold 2: 52,54 x 13,20 x 10,84 m |
|
Total capacity of holds |
Grain 12.855 m³ / 454.000 ft³ |
|
Hold ventilation |
12x Air changes per hour electrical hold ventilation Both holds fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 39,96 x 13,20 m Hatch 2: 52,54 x 13,20 m |
|
Tank capacities |
HFO: 464,7 m³ MGO: 47,2 m³ Water ballast: 3.178 m³ Fresh water: 60,0 m³ |
|
Manager |
Wagenborg Shipping Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Wagenborg Rederij B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previuos owner |
1999 - 05/2005 C.V. Scheepvaartonderneming Voorneborg, Groningen - The Netherlands |
|
Latest data adjustment |
14 September 2024 |
