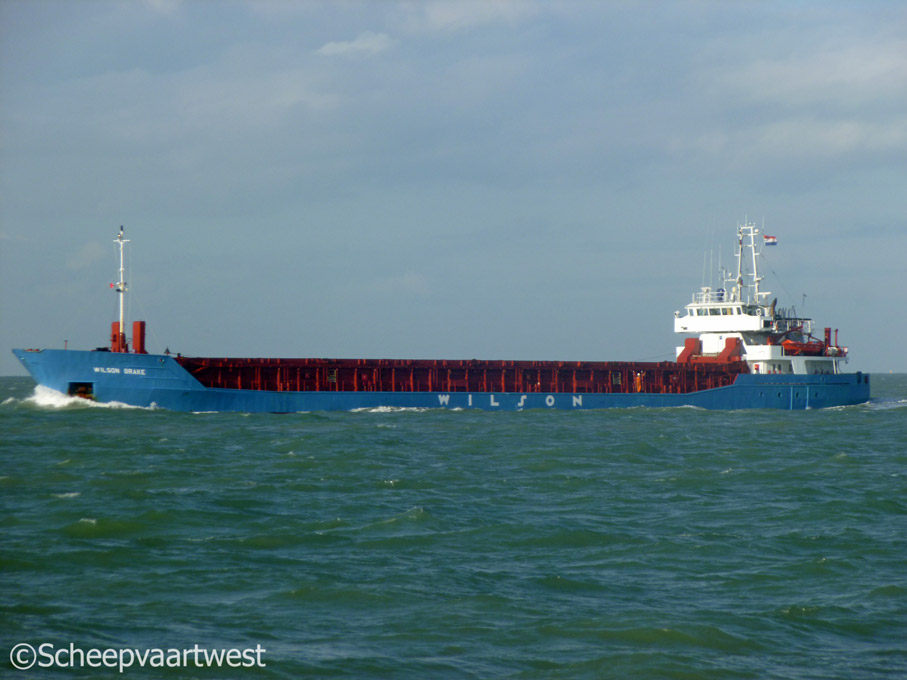

| Westerschelde 28 September 2012 |
 |

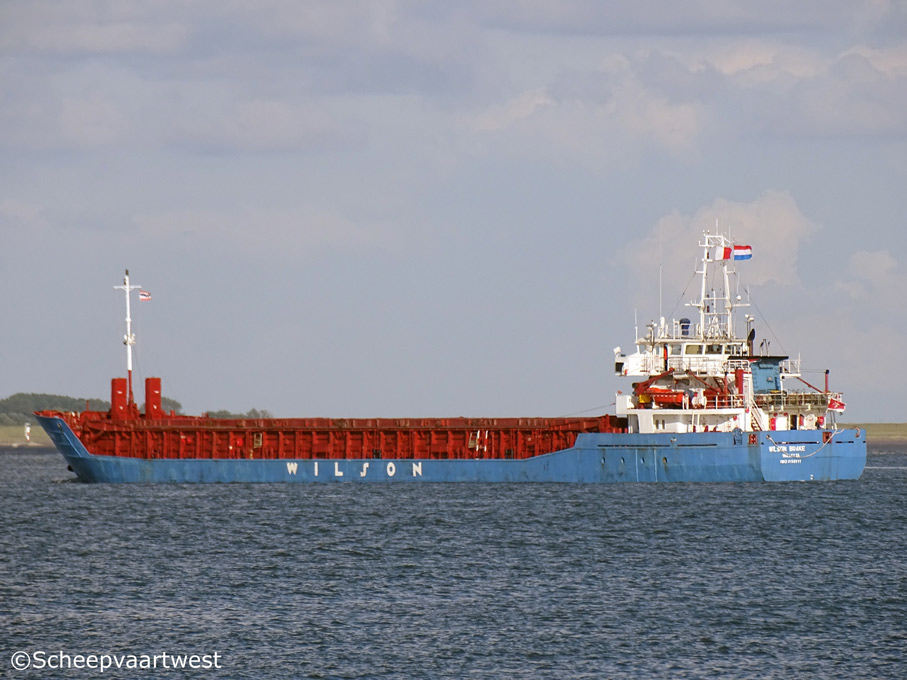

| Westerschelde 13/047/16 |
|
Name |
WILSON BRAKE |
|
Previous names |
1997 - 2004 Northern Lindnes |
|
Type |
General cargo ship - Heavy cargo - Containership |
|
IMO-number |
9150511 |
|
Call sign |
9HJI5 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
2.446 t |
|
DWT |
Summer: 3.710 t Winter:3.592 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
In hold: 108 On deck: 68 Total: 176 |
|
Length |
87,90 m overall 83,50 m between perpendiculars |
|
Breadth |
12,80 m |
|
Draught |
Summer: 5,51 m Winter: 5,40 m |
|
Air draft |
Max.: 19,00 m |
|
Freeboard |
1.615 mm |
|
Depth |
7,10 m moulded |
|
Speed |
11,7 knots Service: 10,5 knots |
|
Built |
1997 |
|
Builder |
Slovenske Lodenice |
|
Yard number |
2934 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Moveable bulkheads |
2x Moveable bulkheads, full hold height, 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBV6M628 - 4 stroke 8 cylinder 240 x 280 mm diesel engine - 1.500 kW / 2.038 kW at 900 rpm Built: 1995 Builder: Deutz-MWM Motorenwerke AG, Mannheim - Germany |
|
Propelling system |
1x Screw Propeller Solid LB 10.00 at 227 rpm |
|
Electric installation |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
4x Diesel generatorsets each 106 kVA - 84 kW - 134 hp |
|
Bow thruster |
250 hp |
|
Number of holds |
1 56,55 x 10,20 x 8,15 m |
|
Cargo hold capacity |
Bales: 4.620 m³ / 163.155 ft³ Grain: 4.650 m³ / 164.215 ft³ |
|
Number of hatches |
1 56,50 x 10,20 m |
|
Hatch type |
Kvaerner Multifold crocodile, with hydraulic control |
|
Max. permitted loads |
On deck: 1,56 t/m² Tanktop: 15,0 t/m² |
|
Free length on tanktop |
55,90 m when bulkheads stored in aft position |
|
Tank capacities |
Fuel oil: 163 m³ Gas oil:30 m³ Water ballast: 1.648 m³ |
|
Manager |
2004 Wilson Shipmanagement A.S. |
|
Operator |
Wilson |
|
Previous names & owners |
1997 Northern Lindnes - Olga Shipping Co. Ltd. (Jebsens Ship Management), Valletta - Malta 1998 Northern Lindnes - Olga Shipping Co. Ltd. (Wilson Ship Management), Valletta - Malta |
|
Registered owner |
2004 Olga Shipping Co., Ltd. |
|
Latest data adjustment |
14 August 2016 |
