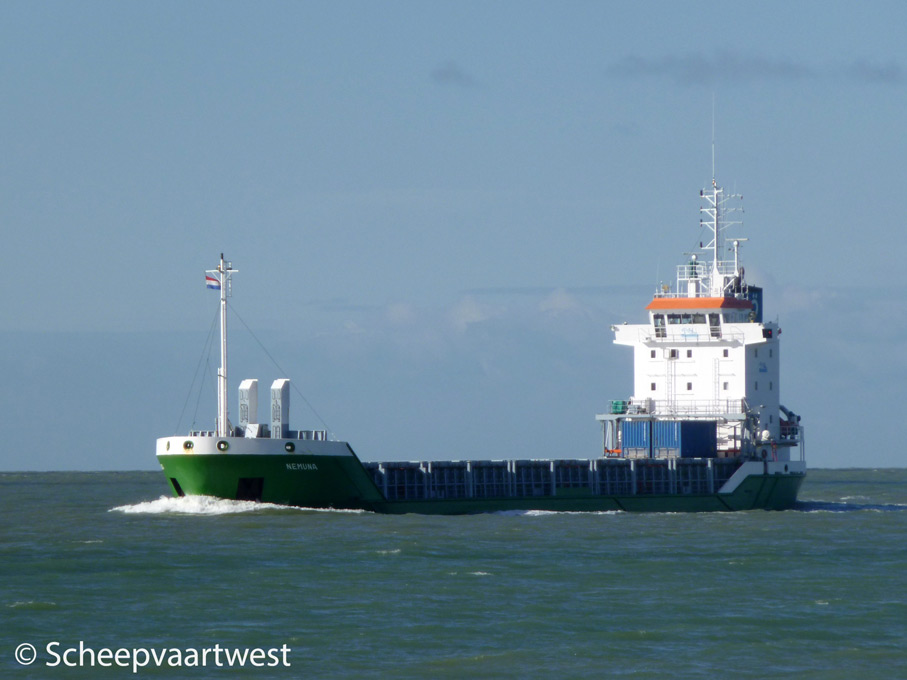

Nemuna 01
Westerschelde 15 October 2012



Name

NEMUNA

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9179361

Call sign

V2AR9

Flag

Antigua & Barbuda

Previous flags

1998 - 2003 Germany

Port of registry

St. John's

GT

2.863 t

DWT

4.161 t

NT

1.527 t

Number of 20ft containers

On deck: 150

In hold: 102

252

Reefer points

20

Length

89,72 m overall

84,98 m registered

Breadth

13,60 m registered

Draught

5,71 m

Air draft

38,10 m with antenna above basis

Forecastle

8,74 m

Quarterdeck

15,04 m

Depth

7,20 m moulded

Speed

12,0 knots

Built

1998

Keel laid

29.04.1996

Launch date

19.09.1998

Date of completion

10.1998

Builder casco

Bodewes Scheepswerven B.V.
Hoogezand
The Netherlands

Yard number: 584

Builder completion

Bodewes Scheepswerf "Volharding" Foxhol B.V.
Scheepswervenweg 14
9607 PX Hoogezand
The Netherlands

Yard number: 342

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

4

Movable bulkhead

2 bulkheads, 5 positions

Continuous decks

1

Main engine

1x MaK 6 M 453 C - 4 stroke 6 cylinder 320 x 420 mm diesel engine - 2.200 kW at 600 rpm

Year of manufacture: 1997

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 175 rpm

Boilers

1x Water heater, oil fired

Year of manufacture: 1998

Electric installations

2x Plants each 380/220 V - 170 kVA

1x Plant 380 V - 810 kVA

1x Plant 380 V - 78 kVA

Shaft generator

1x 810 kVA

Generators

2x Main diesel generatorsets each 170 kVA

Emergency generator

1x Diesel generatorset 78 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 200 kW, forward

Number of holds

1

Dimension: 62,88 x 11,00x 8,30 m

Hatch covers

Steel pontoon type - handled by gantry crane

Cargo capacity

Grain: 5.628 m³ / 198762 ft³

Bales: 5.521 m³ / 195.000 ft³

Max. permitted loads

Tweendeck: 3,0 t/m²

Tanktop Strength: 15,0 t/m²

Hatch Cover Strength: 1,7 t/m²

Tank capacities

Fuel oil: 231 m³

Ballast water: 1.719 m³

Fresh water: 60 t

Ventilation

12x Electric

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Crew size

10

Manager

ShipCom Bereederungs GmbH
Rheinallee 14
47119 Duisburg
Federal Republic of Germany

Operator

Österströms Rederi AB.
Norrköping
Sweden

Registered owner

ShipCom Bereederungs GmbH & Co. Betriebs-KG MS "NEMUNA"
Rheinallee 14
47119 Duisburg
Federal Republic of Germany

Last update

22.04.2013
