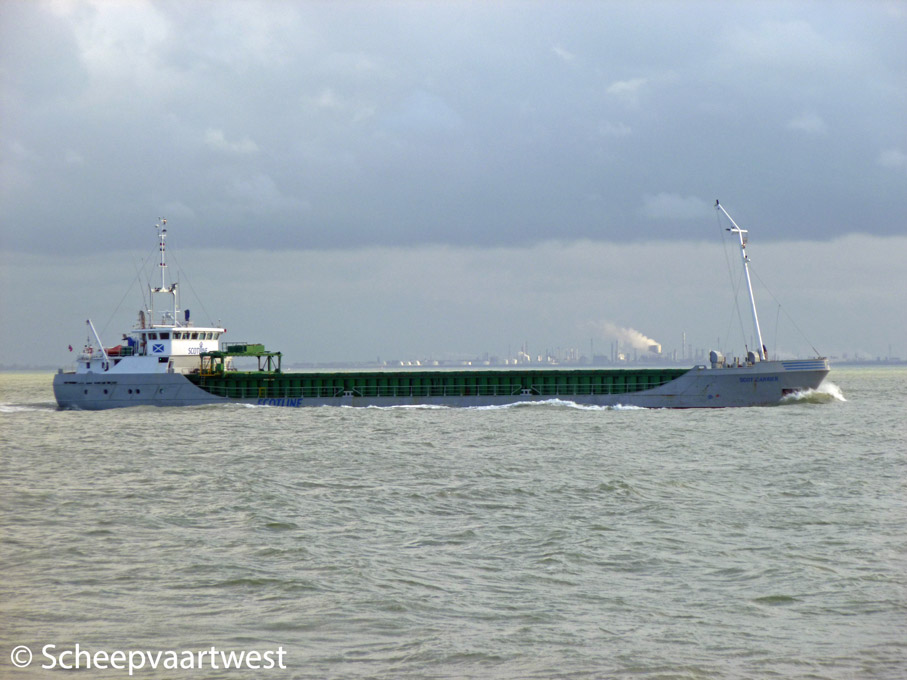

| Westerschelde 08 November 2012 |
|
Name |
SCOT CARRIER |
|
Previous names |
Deo Juvante 1997 - 12.2004 Dependia - Call sign: PDOK - Delfzijl - The Netherlands Owner: C.V. Scheepvaartbedrijf Sander, Delfzijl - The Netherlands Managing: Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Type |
General cargo ship - Box shaped singledecker - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9137208 |
|
Call sign |
MGMT3 |
|
Flag |
United Kingdom |
|
Port of registry |
Inverness |
|
GT |
1.882 t |
|
DWT |
2.495 t |
|
NT |
1.020 t |
|
Number of 20ft containers |
144 |
|
Length |
81,80 m overall 78,00 m registered |
|
Breadth |
12,40 m registered |
|
Draught |
Summer: 4,25 m |
|
Air draft |
6,50 m in ballast |
|
Forecastle |
8,30 m |
|
Poop |
13,90 m |
|
Depth |
5,40 m moulded |
|
Speed |
11,0 knots |
|
Built |
1997 |
|
Keel laid |
20.07.1995 |
|
Launch date |
05.06.1996 |
|
Date of completion |
01.06.1997 |
|
Builder casco |
Navol S.A.Societatea Comerciala Navol S.A. |
|
Builder completion |
IHDA Shipbuilding Service B.V. |
|
Yard number |
108 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x ABC 6 MDZC 900-166 A - 4 stroke single acting 6 cylinder 256 x 310 mm diesel engine - 1.103 kW at 850 rpm Year of manufacture: 1995 Manufacturer: Anglo Belgian Corporation N.V. Wiedauwkaai 43 |
|
Propellers |
1x Solid propeller - aft at 250 rpm |
|
Electric installations |
1x Plant 380/220 V - 77 kVA 1x Plant 380/220 V - 113 kVA 1x Plant 380 V - 77 kVA |
|
Shaft generator |
1x Valmet diesel generatorset 77 kVA 1x Valmet diesel generatorset 113 kVA |
|
Generators |
1x Valmet diesel generatorset 77 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 254 kW, forward |
|
Number of holds |
1 Dimensions: 55,80 x 10,30 x 6,50 m |
|
Total hold capacity |
Grain & bales: 3.860 m³ / 130.000 ft³ |
|
Timber fitted capacity |
4.100 m³ |
|
Number of hatches |
1 Dimensions: 55,80 x 10,30 m |
|
Type of hatches |
Pontoons |
|
Max. permitted loads |
Tank top: 12,0 t/m² Hatch covering: 1,6 t/m² |
|
Tank capacities |
Fuel oil: 168 m³ Ballast water: 1.193 m³ |
|
Anchor equipment |
3x Anchors weight each 1.290 kg Chain length: 385,00 m |
|
Manager |
Scotline Ltd. |
|
Operator |
Intrada Ships Management |
|
Registered owner |
Scot Carrier Shipping Ltd. |
|
Previous names & owners |
1997: Dependia - Deo Juvante Scheepvaartbedrijf B.V., Werkendam - The Netherlands |
|
Last update |
26.04.2013 |
