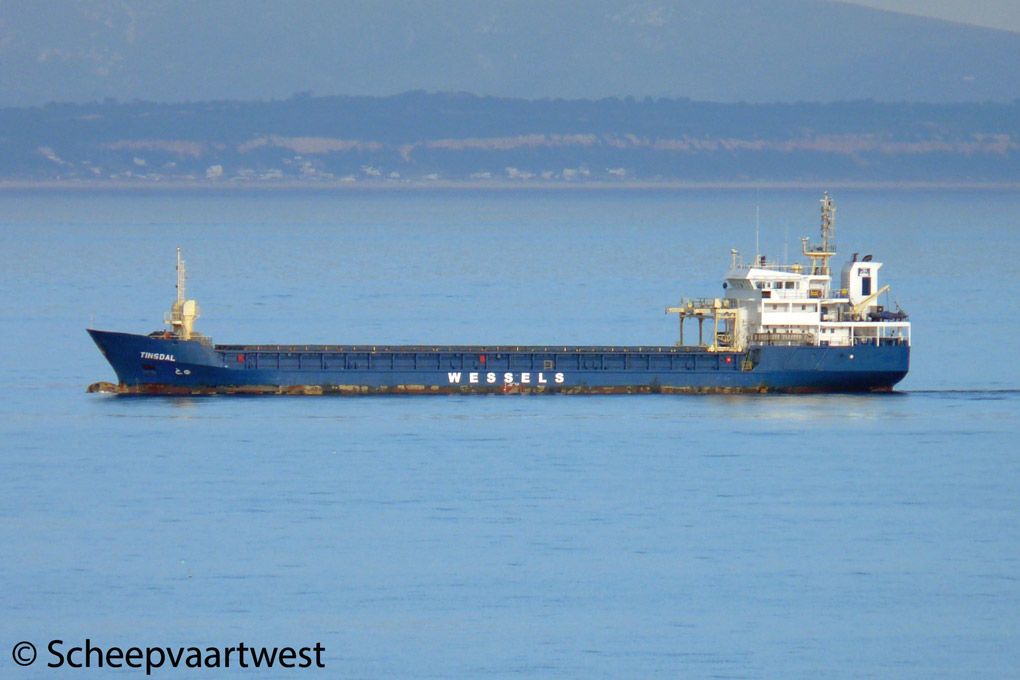

| Cascais - Portugal 10 June 2013 |
|
Name |
TINSDAL |
|
Type |
General cargo ship - Equipped for carriage of containers, strengthened for heavy cargo Boxshapped seagoing multi purpose ship |
|
IMO-number |
9119567 |
|
Call sign |
V2AJ2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.981 t |
|
DWT |
Summer: 4.310 t |
|
NT |
1.505 t |
|
Number of 20ft containers |
114 |
|
Length |
90,29 m overall 84,90 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
5,64 m |
|
Forecastle |
7,02 m |
|
Poop |
15,10 m |
|
Depth |
7,10 m moulded |
|
Speed |
12,0 knots |
|
Built |
1998 |
|
Keel laid |
31.01.1996 |
|
Launch date |
25.02.1998 |
|
Date of completion |
30.10.1998 |
|
Builder |
Rousse Industry A.D. |
|
Yard number |
390 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 6 M 453 C - 4 stroke 6 cylinder 320 x 420 mm diesel engine - 2.080 kW at 600 rpm Reduced Power: 1.040 kW Year of manufacture: 1995 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 175 rpm |
|
Electric installations |
2x Plants each 380/220 V - 260 kVA 1x Plant 380 V - 550 kVA 1x Plant 380 V - 83 kVA |
|
Shaft generator |
1x 550 kVA |
|
Generators |
2x MAN type D 2866 LXE 30 - 4 stroke 6 cylinder diesel engines 238 kW at 1.500 rpm coupled with A. van KAICK, Type DSG 52 M1-4 generators 297 kVA at 1.500 rpm - 3x380 Volt, 50 Hz each |
|
Emergency generator |
1x MAN type 0226 MTE - 4 stroke 6 cylinder diesel engine 85 kW at 1.500 rpm coupled with A. van KAICK, Type DSG 36 L 2-4 generator 103 kVA - 3x380 Volt 50 Hz |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 200 kW, forward |
|
Number of holds |
1 52,20 x 12,90 x 8,10 m |
|
Number of hatches |
2 Hatch 1&2: 26,40 x 12,90 m |
|
Hatch type |
2x Steel bulkheads hatch covers are pontoon type consisting of 10 panels operated by gantry crane |
|
Cargo capacity |
Grain: 5.519 m³ |
|
Ventilation |
6 times |
|
Tank capacities |
Fuel oil: 257 m³ / 205 t Ballast water: 1.992 m³ / 1.990 t |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Crew size |
12 |
|
Manager |
Wessels Reederei GmbH & Co. KG |
|
Operator |
Wessels |
|
Owner |
Wessels Reederei |
|
Registered owner |
MS "TINSDAL" Klaus Koss Schiffahrts KG |
|
Last update |
23 June 2013 |
