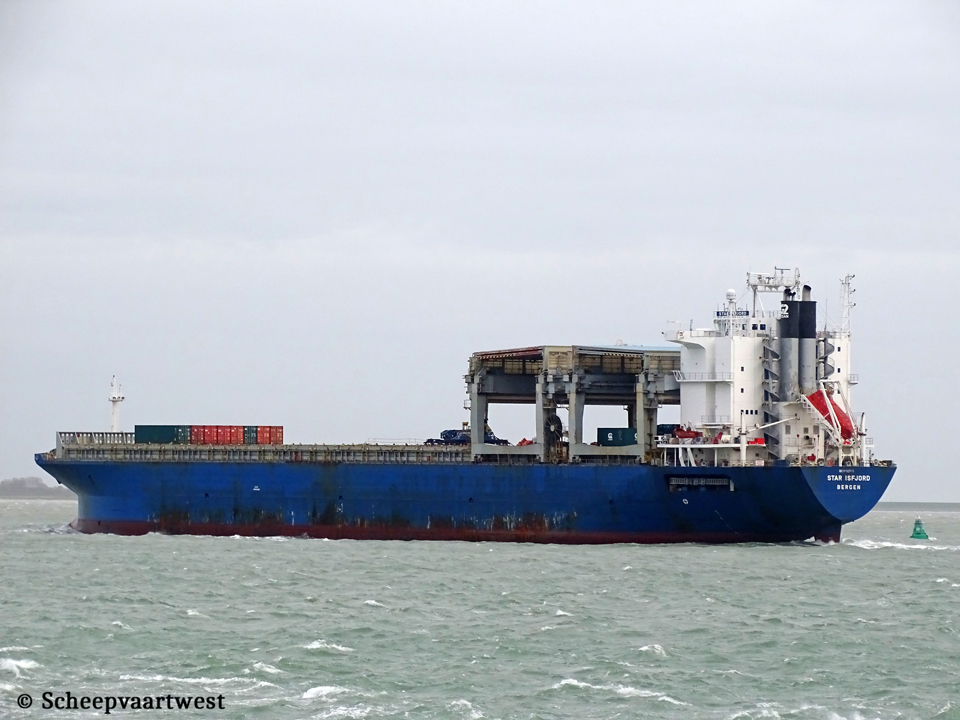

| Westerschelde 25 February 2017 |
 |
 |
 |
||

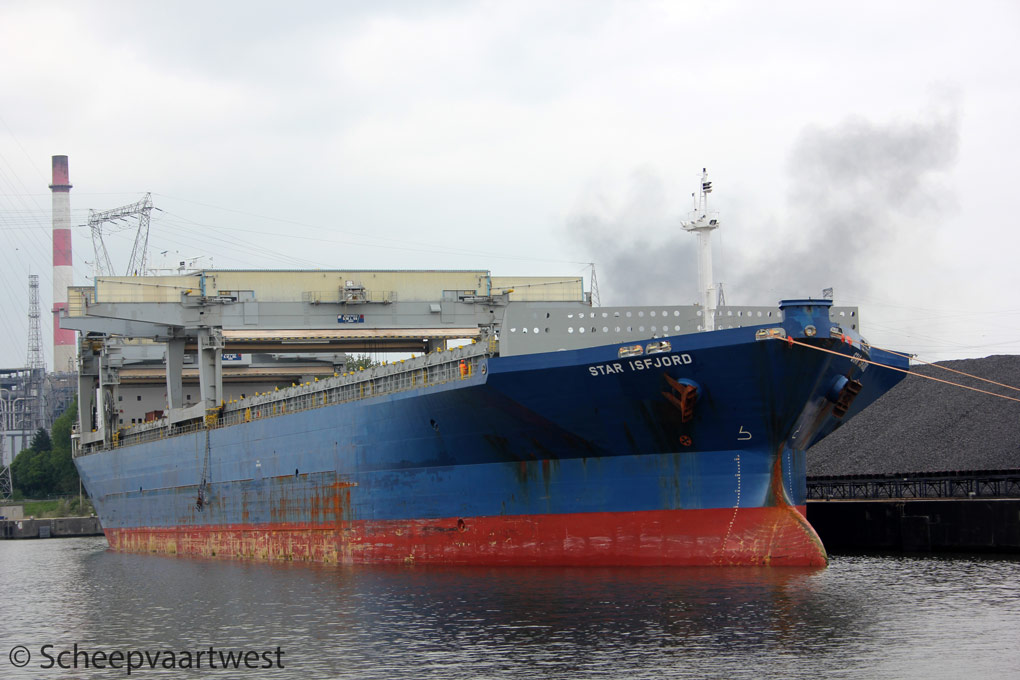

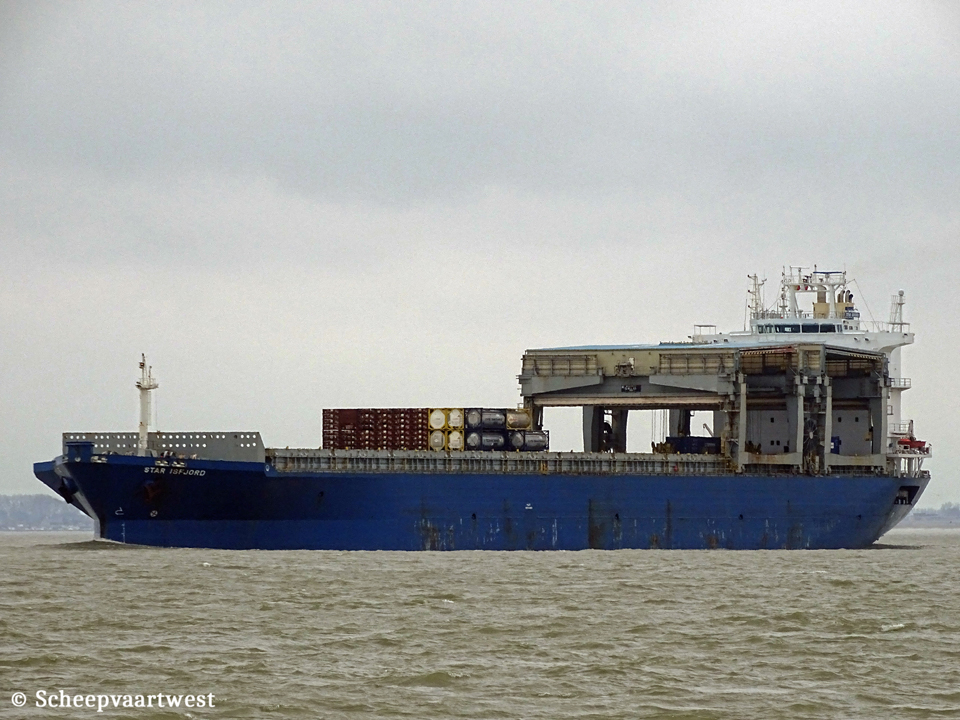

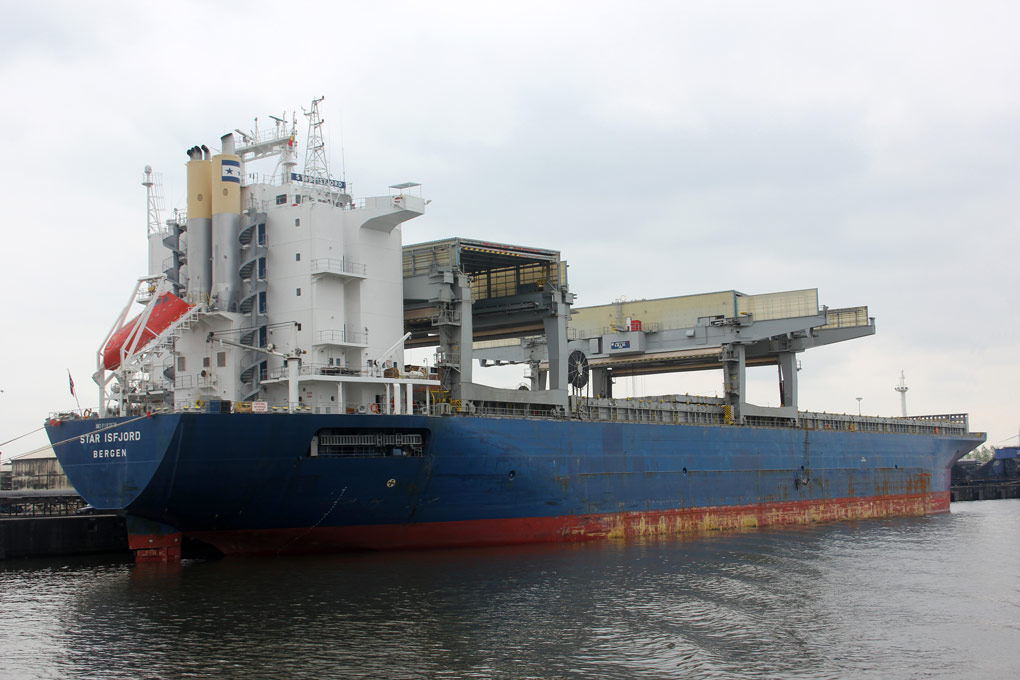

| Gent, Belgium 18/05/13 | Gent, Belgium 18/05/13 | Westerschelde 01/11/19 | ||
|
Name |
STAR ISFJORD |
|
Type |
General cargo - Heavycargo - Equipped for carriage of container |
|
IMO-number |
9182978 |
|
Call sign |
LAOX5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
32.680 t |
|
DWT |
46.428 t |
|
NT |
13.038 t |
|
Number of 20ft containers |
On hatch covers: 720 In holds: 1.174 Total 1.914 |
|
Length |
198,00 m overall 189,02 m between perpendiculars |
|
Breadth |
31,12 m overall |
|
Draught |
12,32 m |
|
Air draft |
Max.: 47,00 m |
|
Freeboard |
3.316 mm |
|
Depth |
19,00 m to main deck |
|
Speed |
16,0 knots at full Eco: 14,7 knots Super eco: 13,2 knots |
|
Built |
2000 |
|
Keel laid |
22/09/1999 |
|
Launch date |
01/02/2000 |
|
Date of completion |
31/05/2000 |
|
Builder |
Mitsui Engineering & Shipbuilding 3-1-1 Tama 706-8651 Tamano Japan |
|
Yard number |
1489 |
|
Hull material |
Mild steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Number of tweendecks |
4 |
|
Bulkheads |
Transverse: 12 |
|
Main engine |
1x Mitsui/MAN-B&W 6S60MC - 2 stroke single acting 6 cylinder 600 x 2292 mm combustion engine 11.050 kW / 15.014 hp at 98,0 rpm Builder: Mitsui & Co., Ltd., Tamano - Japan |
|
Propellers |
1x Fixed pitch propeller aft at 98,0 rpm 5 blades |
|
Boilers |
1x Auxiliary boiler, vertical shell type AQ-12-160-17 Steam production: 1.200 kg/h Working pressure: 6 kg/cm² Builder: Aalborg Industries A/S 1x Auxiliary boiler, exhaust gas water tube EG-183242-H Bare Tube Steam production: 1.100 kg/h Working pressure: 6 kg/cm² Builder: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
2x Rolls-Royce KR-8 - 4 stroke single acting 8 cylinder diesel engines 1.395 kW at 720 rpm couples with generator each output 1.300 kW 1x Rolls-Royce KR-5 - diesel engines 775 kW couples with generator each output 720 kW Builder: Rolls-Royce Marine AS |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset 100 kVA - 80 kW - 135 hp |
|
Compressed air receivers |
2x SPERRE HV2/200 main air compressor s- each 136 m³/h capacity at 30,0 bar 1x SPERRE HV2/300 working air compressor - 437 m³/h capacity at 8,0 bar 1x SANWA Iron Works S10A diesel generator cold start air compressor - 41,5 m³/h at 30,0 bar |
|
Thruster |
1x Bow thruster - 2.000 bhp 1x Stern thruster - 1.000 bhp |
|
Number of holds |
11 |
|
Cargo hold capacity |
Bales: Hold 1: 4.049 m³ / 142.983 ft³ Hold 2: 5.511 m³ / 194.603 ft³ Hold 3-4-5-6-7-8-9: 6.207 m³ / 219.179 ft³ Hold 10: 5.780 m³ / 204.240 ft³ Hold 11: 2.765 m³ / 97.632 ft³ Total: 61.497 m³ / 2.171.550 ft³ |
|
Deck capacity |
Under deck: 4.841 m² Weather deck: 3.550 m² |
|
Mas permitted loads |
Hatch covers: 3,60 t/m² Tweendecks: 5,50 t/m² Tanktop hold 1: 22,0 t/m² Tanktop hold 2 - 10: 28,0 t/m² Hold 11: 17,0 t/m² |
|
Fresh water generator |
1x Fresh water generator NIREX Type JWP-26-C100 Capacity: 30 t/day |
|
Tank capacities |
Ballast: 26.110 m³ Diesel oil: 695 m³ Fuel oil: 1.317,6 m³ |
|
Cargo gear |
2x Gantry cranes - SWL 68 t full rain protection Builder: Mitsui Paceco |
|
Accommodation |
Aft for a total of 29 persons |
|
Commercial manager |
Ocean G2 Grieg-Gaarden, C. Sundtsgate 17 Bergen Norway |
|
ISM manager |
Grieg Star AS C. Sundts gate 17/19 5004 Bergen Norway |
|
Operator |
Grieg Star AS |
|
Registered owner |
Grieg International II AS / Grieg Shipping II AS C. Sundts gate 17/19 5004 Bergen Norway |
|
Latest data adjustment |
02 June 2022 |
