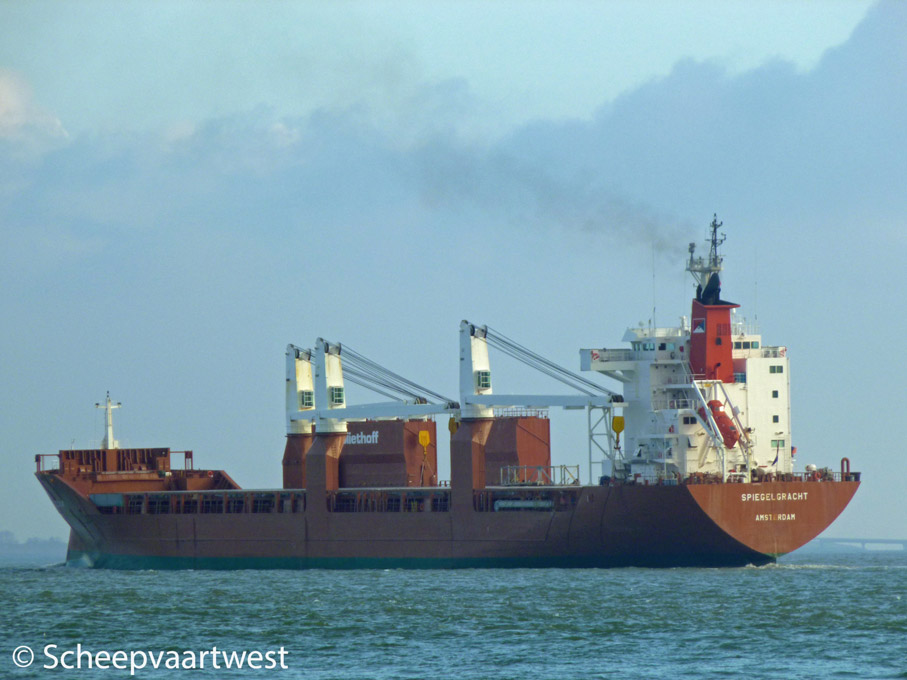

| Westerschelde 11 November 2012 |
|
Name |
SPIEGELGRACHT |
|
Type |
General dry cargo ship |
|
IMO-number |
9197911 |
|
Call sign |
PCEO |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
16.641 t |
|
DWT |
Summer: 21.402 t |
|
NT |
6.700 t |
|
Number of 20ft containers |
1.127 |
|
Reefer capacity |
120 |
|
Length |
168,14 m |
|
Breadth |
25,20 m |
|
Draught |
10,74 m |
|
Depth |
14,60 m |
|
Speed |
19,8 knots |
|
Built |
2000 |
|
Launch date |
28.08.1999 |
|
Date of completion |
18.04.2000 |
|
Builder |
Tsuneishi Zosen K.K Shipbuilding |
|
Yard number |
1172 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä 6L6 - 4 stroke 6 cylinder diesel engine - 12.060 kW / 16.415 hp |
|
Propellers |
1x Pitch propeller |
|
Shaft generator |
1x 1.000 kW |
|
Generators |
3x Main diesel generatorsets each 450 kW |
|
Bow thruster |
850 kW |
|
Cargo capacity |
Bales/grain: 23.815 m³ |
|
Cargo gear |
3x Cranes - SWL each 120 t |
|
Crew |
15 |
|
Manager |
Spliethoff´s Bevrachtingskantoor |
|
Operator |
Spliethoff |
|
Owner |
C.V. Scheepvaartonderneming Spiegelgracht |
|
Last update |
29.04.2013 |
