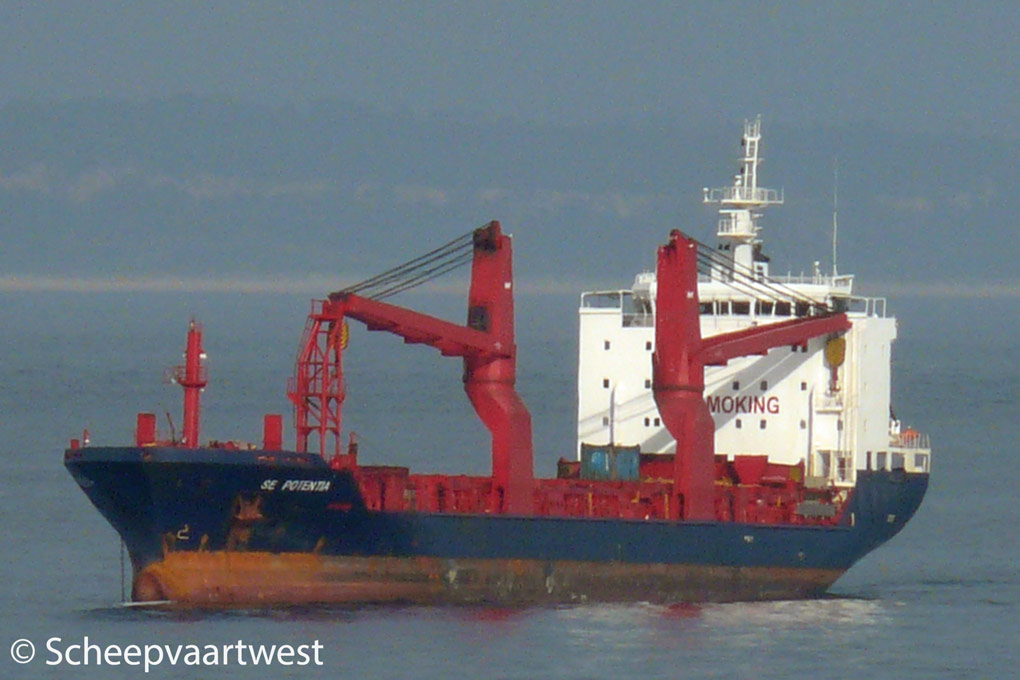

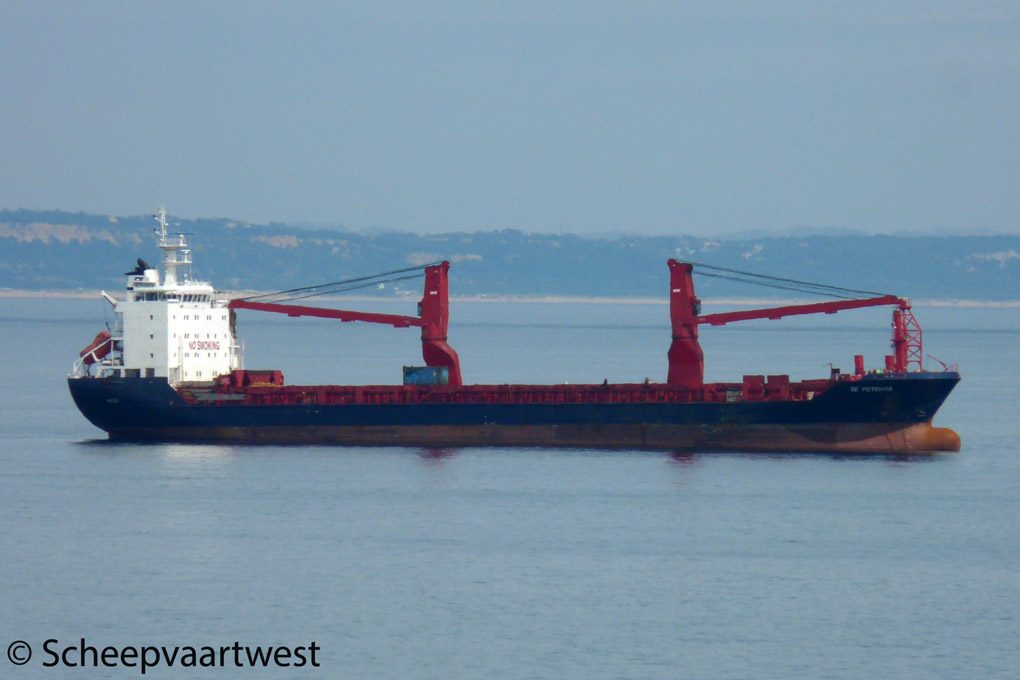

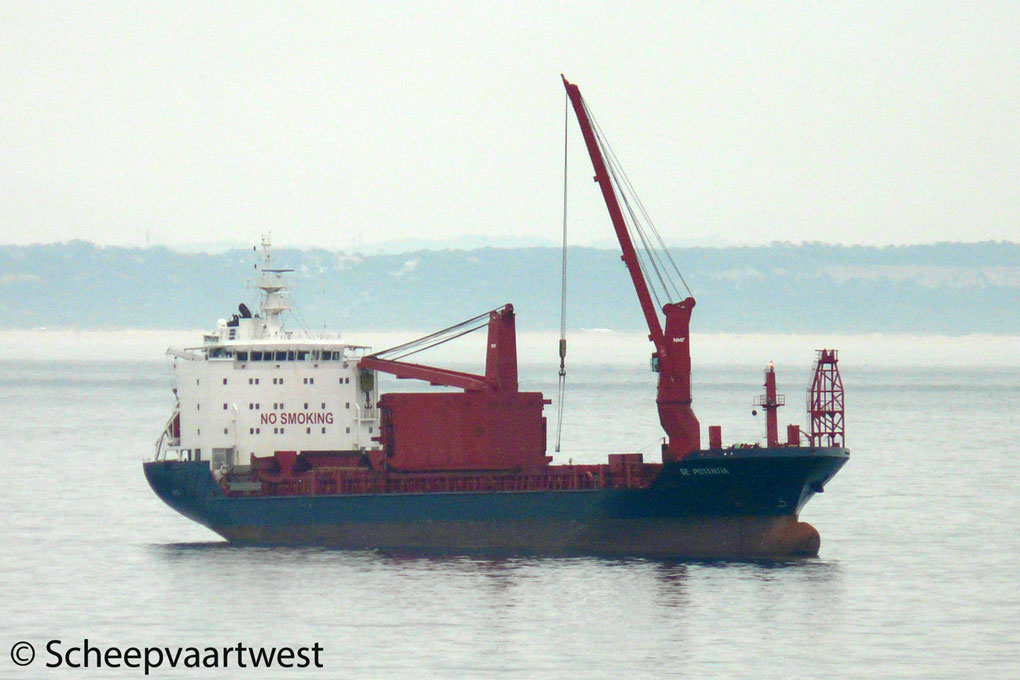

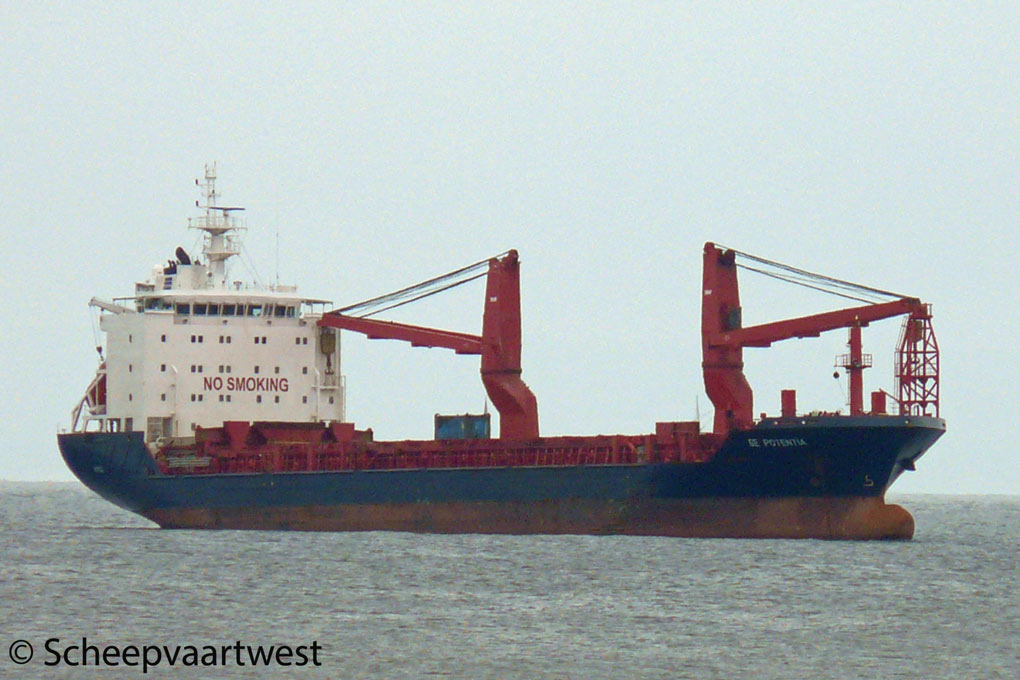

| Cascais, Portugal 09 June 2013 |
 |
 |
 |
||
| Cascais 10/06/13 | Cascais 10/06/13 | Cascais 06/06/13 |
|
Name |
SE POTENTIA |
|
Previous names |
2009 - 27.10.2009 Brattingsborg |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9431472 |
|
Call sign |
9V8833 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
9.627 t |
|
DWT |
12.767 t |
|
NT |
4.261 t |
|
Number of 20ft containers |
658 |
|
Length |
138,53 m overall 130,71 m registered |
|
Breadth |
21,00 m registered |
|
Draught |
8,00 m |
|
Forecastle |
9,96 m |
|
Poop |
12,60 m |
|
Depth |
11,00 m moulded |
|
Speed |
15,0 knots |
|
Built |
2009 |
|
Keel laid |
22.12.2008 |
|
Launch date |
07.09.2009 |
|
Date of completion |
21.12.2009 |
|
Builder |
Taizhou Sanfu Ship Engineering Co., Ltd. |
|
Yard number |
SF070101 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 6M43 - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.400 kW at 500 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar TUBE-TEC Rohrverformungstechnik GmbH 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 39,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
3x Plants each 400 V - 532 kW 1x Plant 400 V - 700 kW 1x Plant 400 V - 110 kW 2x Plants each 24 V - 80 Ah 1x Plant 24 V - 85 Ah 1x Plant 24 V - 102 Ah 3x Plants each 24 V - 120 Ah |
|
Shaft generator |
1x 700 kW |
|
Generators |
3x Main diesel generatorsets each 532 kW |
|
Emergency generator |
1x Diesel generatorset 110 kW |
|
Batteries |
3x Batteries for diesel start each 120 Ah 1x Battery for automation 102 Ah 1x Battery for automation 85 Ah 2x Batteries for diesel start each 80 Ah |
|
Compressed air receivers |
2x Receivers each1.000 litres - 30,0 bar 1x Receiver 60 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster - 500 kW, forward |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Cargo gear |
2x Cranes - each SWL 150.00 / 120.00 / 95.00 / 70.00 t |
|
Crew size |
20 |
|
Manager |
SE Ship Management Pte., Ltd. |
|
Registered owner |
Shaneaka Shipping Pte., Ltd. |
|
Last update |
22 June 2013 |
