Vectis Castle - IMO 9626168

Name

VECTIS CASTLE

Type

Multi-purpose low emission dry cargo ship - heavycargo - Equipped for carriage of containers

IMO-number

9626168

Call sign

2GAS9

Flag

United Kingdom

Port of registry

Cowes - Isle of Wight

GT

7.227 t

DWT

10.294 t

NT

3.124 t

Panama: 6.145 t

Suez: 6.749 t

Number of 20ft containers

In hold: 244
On hatches: 250
Total: 494

Length

123,96 m overall

121,70 m between perpendiculars

Breadth

17,40 m moulded

Draught

8,00 m

Air draft

31,40 m ballast

Freeboard

3.411 mm

Depth

11,40 m moulded

Speed

13,0 knots

Built

2013

Keel laid

20.12.2011

Date of completion

21.01.2013

Builder

Jiangsu Yangzijiang Shipyard
Jiangyin
China

Yard number

1000

Hull material

Steel

Watertight compartments

38

Movable bulkhead

Grain bulkheads: 6

Continuous decks

1

Main engine

1x MAK 6M32C - 4 stroke 6 cylinder 320 x 410 mm diesel engine - 3.000 kW / 4.076 hp at 600 rpm

Built: 2012

Builder: Caterpillar Motoren GmbH & Co,.KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 112 rpm Diameter: 4.290 mm

Boilers

1x CHO 17,50 m² - 15,0 bar
1x CHR 86,70 m² - 15,0 bar

Shaft generator

1x AEM SE 400 S4 - 525 kVA at 1.500 rpm

Generators

2x CAT C-18 Acert DITA main diesel generatorsets each 500 kVA - 400 kW at 1.500 rpm

Emergency generator

1x CAT C-18 Acert DITA diesel generatorset - 275 kW at 1.500 rpm

Bow thruster

400 kW

Diameter: 1.300 mm

Number of holds

2

Dimension:

Hold 1: Length: 25,20 m
Breadth: 13,80 m / 8,28 m (L x B 14,00 x 13,80 + 8,28 x 11,20 m)
Height: 11,30 m

Hold 2: Length: 63,70 m
Breadth: 13,80 m
Height: 11,30 / 5,30 m (L x H 57,40 x 11,30 + 6,30 x 5,30 m)

Hold capacity

Hold 1: 3.234 m³
Hold 2: 9.420 m³
Total: excl Tweendeck: 12.655m³ / 446.900 ft³

Tweendeck

15 panels, covering complete hold (L x B 57,40 x 13,80 + 25,20 x 13,80/8,28)

Total capacity of holds

12.643,02 m³

Max permitted loads

Weather deck hatches: 2,5 ton/ m²
Tweendeck load: 3,5 ton/m²
Tank top load: 18,0 ton / m²

Tank capacities

Heavy fuel oil: 252 m³
Gas oil: 222 m³
Ballast water: 4.324 m³
Fresh water: 69 m³

Ventilation

12 air changes per hour

Cargo gear

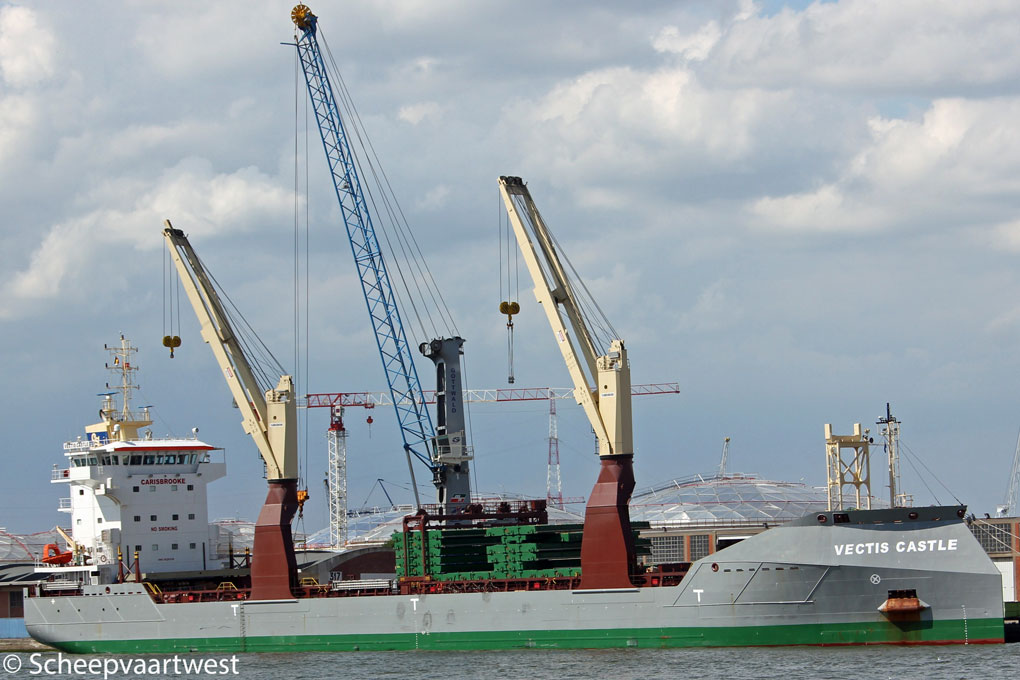

2x Cranes each SWL 80 t at 15,00 m radius, starboard mounted cranes

Max outreach 45 t at 26,00 m

Manager

Carisbrooke Shipping UK
38 Medina Roa
Cowes - Isle of Wight
United Kingdom

Owner

Carisbrooke Shipping UK
38 Medina Roa
Cowes - Isle of Wight
United Kingdom

Last update

27 June 2013
