| Antwerpen 18 October 2013 |
 |
 |
|
| Antwerpen 18/10/13 | Antwerpen 18/10/13 |
|
Name |

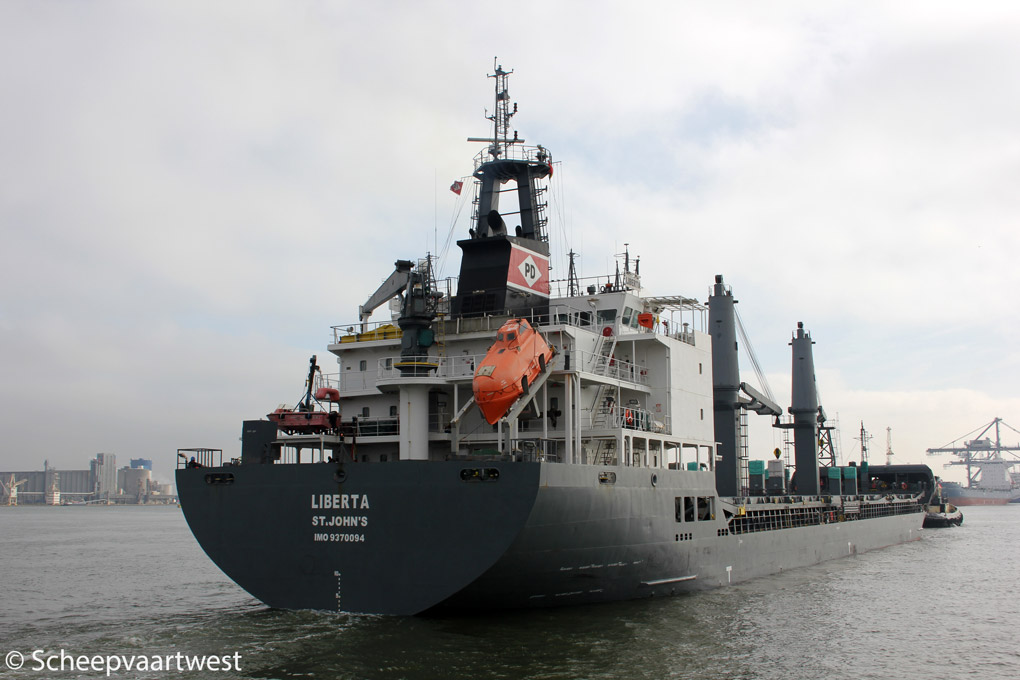

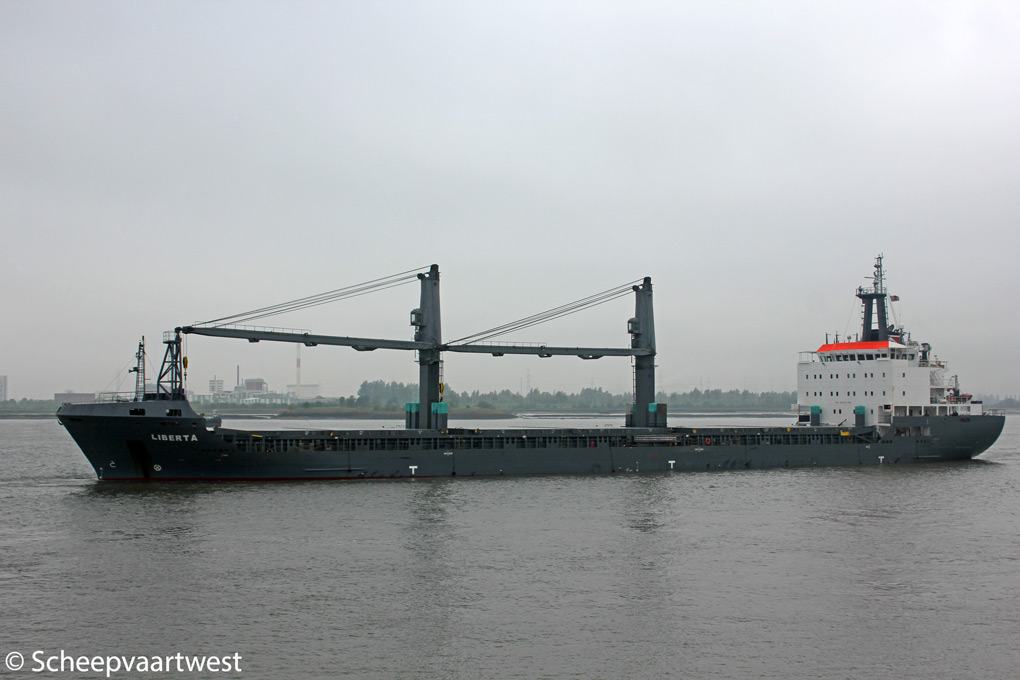

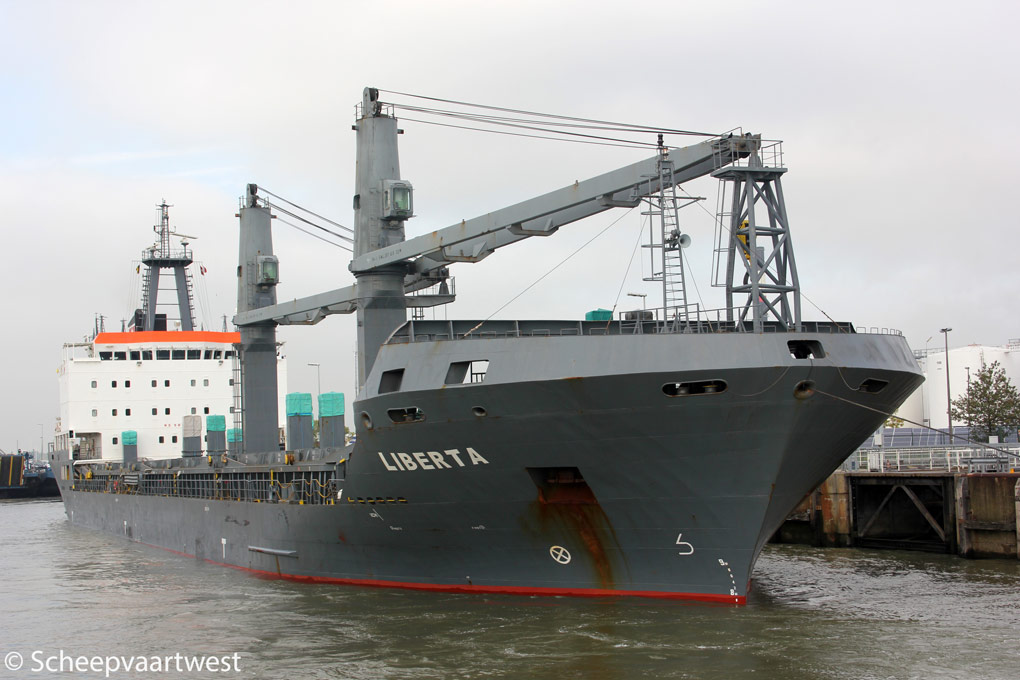

LIBERTA |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9370094 |
|
Call sign |
V2CM3 |
|
Flag |
Antugua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.556 t |
|
DWT |
13.447 t |
|
NT |
4.378 t |
|
Number of 20ft containers |
771 |
|
Length |
138,09 m overall 130,71 m registered |
|
Breadth |
21,00 m registered |
|
Draught |
8,00 m |
|
Forecastle |
9,68 m |
|
Poop |
13,87 m |
|
Depth |
11,00 m |
|
Speed |
Max.: 14,7 knots Service: 12,0 knots |
|
Built |
2007 |
|
Keel laid |
25.05.2007 |
|
Launch date |
30.07.2007 |
|
Date of completion |
15.11.2007 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. |
|
Yard number |
YZJ2005-693C |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 7 S35MC - 2 stroke 7 cylinder 350 x1.400 mm diesel engine - 5.180 kW at 173,0 rpm Year of manufacture: 2007 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller - aft at 173,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 26,8 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 197,5 m² Year of manufacture: 2007 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
3x Plants each 450 V - 500 kVA 1x Plant 450 V - 875 kVA 1x Plant 450 V - 125 kVA |
|
Shaft generator |
1x 875 kVA |
|
Generators |
3x Main diesel generatorsets each 500 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Batteries |
2 Receivers each 1.000 litres - 30,0 bar 1 Receiver 160 litres - 30,0 bar 1 Receiver 250 litres - 11,0 bar 1 Receiver 80 litres - 8,3 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Number of holds |
3 |
|
Cargo Capacity |
Bales: 550.000 ft³ Grain: 278.500 ft³ |
|
Number of hatches |
3 |
|
Anchor equipment |
3x Anchors weight each 4.320 kg Chain length: 550,00 m |
|
Cargo gear |
2x Cranes each SWL 25,0 t |
|
Crew size |
19 |
|
Manager |
Peter Döhle Schiffahrts-KG |
|
Registered owner |
MS "MANTO" Schifffahrtsges. mbH & Co. KG |
|
Last update |
20 November 2013 |
