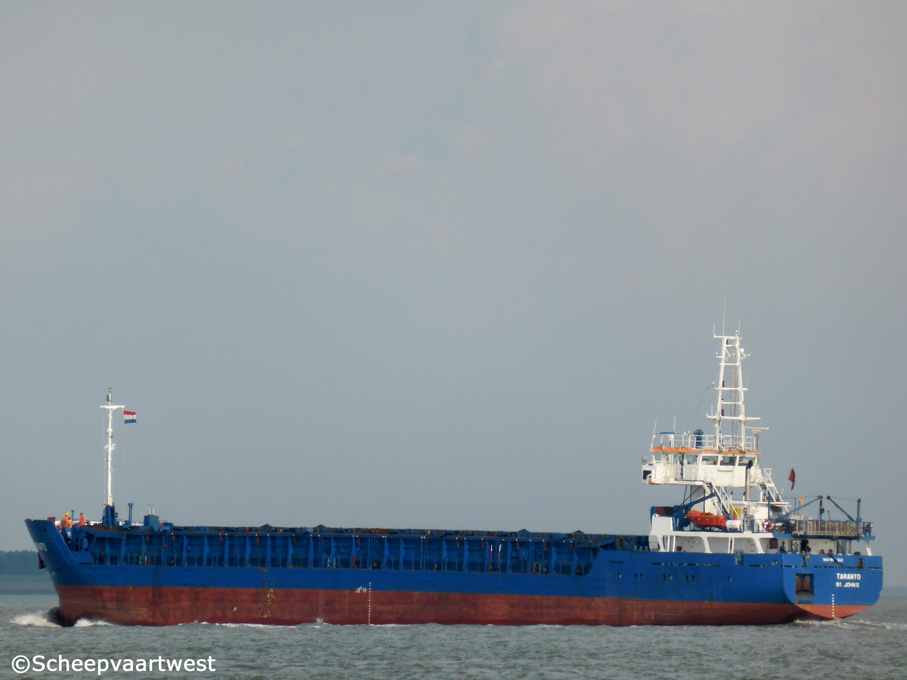

| Westerschelde 24 July 2014 |
 |

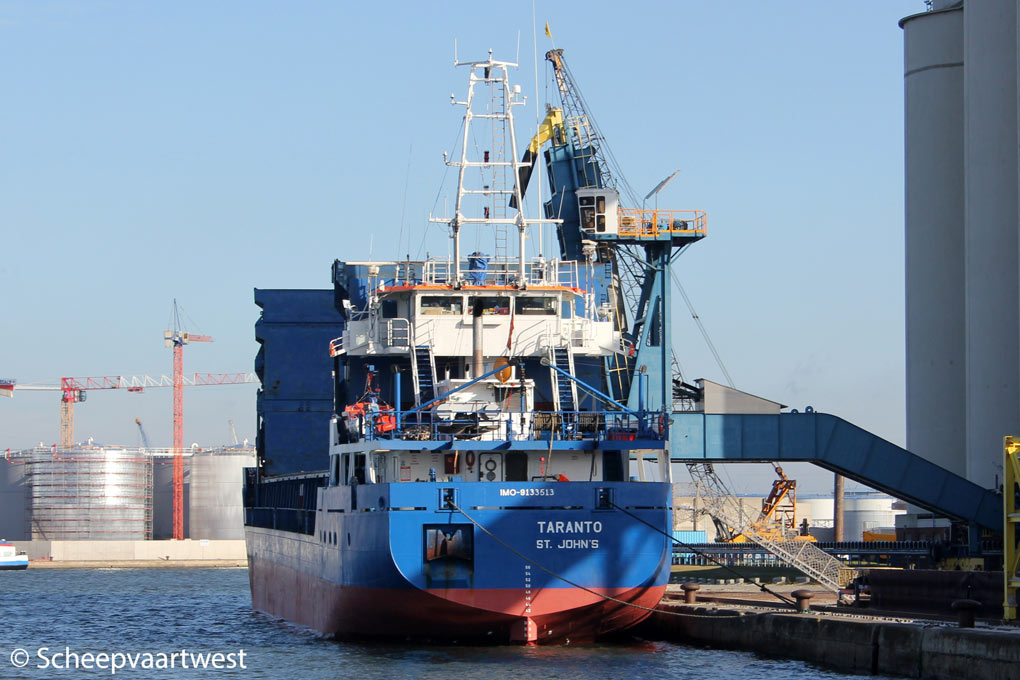

| Antwerpen 26/10/13 |
|
Name |
TARANTO |
|
Type |
General cargo ship - Equipped for carriage of containers Box Sid |
|
IMO-number |
9133513 |
|
Call sign |
V2AK2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
1995 - 1995 Germany |
|
GT |
2.061 |
|
DWT |
Summer: 3.005 t |
|
DWCC |
2.850 t |
|
NT |
1.161 |
|
Number of 20ft containers |
In hold: 78 On deck: 48 Total: 126 |
|
Reefer plugs |
6 |
|
Length |
88,54 m overall 84,96 m between perpendiculars |
|
Breadth |
11,35 m extreme |
|
Draught |
4,94 m |
|
Air draft |
25,10 m full ballast |
|
Forecastle |
6,46 m |
|
Poop |
10,80 m |
|
Freeboard |
1.460 mm |
|
Depth |
6,40 m moulded |
|
Speed |
10,5 knots |
|
Built |
1995 |
|
Keel laid |
14/03/1995 |
|
Launch date |
16/08/1995 |
|
Date of completion |
01/11/1995 |
|
Builder |
Slovenske Lodenice A.S. Rolnickej Skoly 1519 945 25 Komarno Slovak Republic |
|
Yard number |
1707 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2x Movable bulkheads making 3 different compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM SBV 6M628 - 4 stroke single acting6 cylinder 240 x 280 mm combustion engine 1.125 kW / 1.530 hp at 900 rpm Reduced power: 600 kW Year of manufacture: 1995 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG, Mannheim - Federal Republic of Germany |
|
Propellers |
1x Fixed pitch propeller - aft at 264 rpm |
|
Boilers |
Water heater, oil fired - 4,0 bar Year of manufacture: 1995 |
|
Electric installations |
2x Plants each 380/220 V each 85 kVA 1x Plant 380 V - 85 kVA 1x Plant 380 V - 116 kVA |
|
Shaft generator |
1x 116 kVA |
|
Generators |
2x Main diesel generatorsets each 85 kVA |
|
Emergency generator |
1x Diesel generatorset 85 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster “JASTRAM” - 175 kW, forward |
|
Number of holds |
1 57,50 x 9,00 x 8,06 m Clear Box over 48,00 x 9,00 m Narrowing forward over 6,50 m down to 5,50 m Narrowing aft over 3,00 m down to 7,00 m |
|
Cargo hold capacity |
Bale: 4.091 m³ / 144.362 ft³ Grain: 4.078 m³ / 143.903 ft³ |
|
Hold ventilation |
6x Air changes per hour (basis empty hold) |
|
Number of hatches |
1 57,50 x 9,00 m |
|
Type of hatches |
Hydraulic folding |
|
Max. permitted loads |
Tank top: Steel / 12 t/m², suitable for grab discharge Hatch cover load: 1,36 t/m² |
|
Tank capacities |
Fuel oil (MGO): 150 m³ Lub oil: 3,7 m³ Fresh water: 25,0 m³ Ballast water: 1.152 m³ |
|
Anchor equipment |
3x Anchors weight each 1.440 kg Chain length: 412,50 m Diameter: 30 mm |
|
Manager |
Bojen Bereederung GmbH & Co. KG Borgwardring 80 26802 Moormerland-Neermoor Federal Republic of Germany |
|
Registered owner |
Siegfried Bojen MS "IBIZA" GmbH & Co. KG Borgwardring 80 26802 Moormerland-Neermoor Federal Republic of Germany |
|
Special annotation |
Wheelhouse hydraulically lowerable |
|
Renamed |
2015 - 11/2020 Mirjam Barbados, Bridgetown - Call sign: 8PMB Owner: MV "Mirjam" LLP Manager: Powdermill Navigation Inc. - Greece 11/2020 - 06/2022 Himmel Republic of Panama, Panama City - Call sign: 3EUP3 Owner: Himmel Shipping Ltd. - Geramy Manager: Frieden Shipping GmbH, Dorsten - Germany 06/2022 Alya Republic of Panama, Panama City - Call sign: 3EUP3 Owner & Manager: New Moon Shipping Co., Ltd., Istanbul - Turkey |
|
Latest data adjustment |
31 December 2024 |
