| Antwerpen 29 July 2013 |
|
Name |

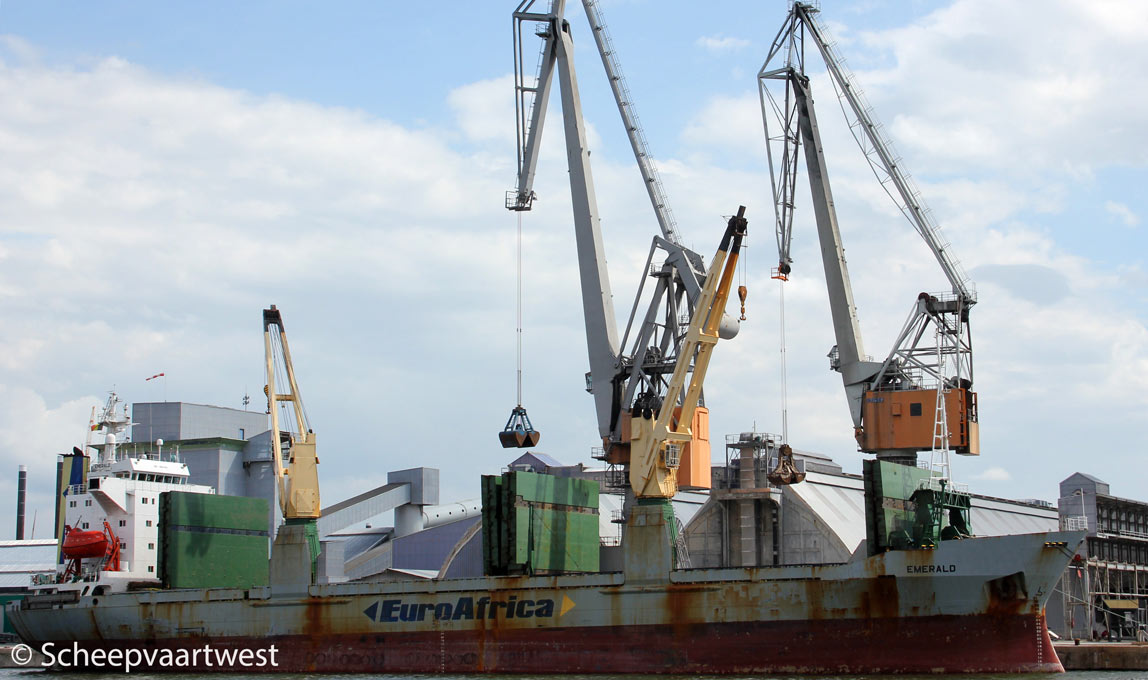

EMERALD |
|
Previous names |
Launch as: 1991 Aurora One 1991 - 08.1992 Mekhanik Poveroy 1992 - 01.1993 Kidira 1993 - 01.1995 Socol 1 1995 - 06.1996 Kowie 1996 - 03.1998 Socol 1 1998 - 03.2000 CMBT Congo 03.2000- 10.2000 Socol 1 2000 - 06.2001 MSC Apapa 2001 - 03.2011 Socol 1 |
|
Type |
General dry cargo ship - Double decker vessel, convertible to single decker |
|
IMO-number |
9004463 |
|
Call sign |
5BFE3 |
|
Flag |
04.03.2011 Cyprus |
|
Previous flags |
1991 - 2000 Republic of Panama 2000 - 2011 Malta |
|
Port of registry |
04.03.2011 Limassol |
|
GT |
6.030 t |
|
DWT |
Summer: 9.597,53 t Winter: 9.268,02 t |
|
Lightweight |
3.668,19 t |
|
Displacement |
13.266,19 t at summer draft |
|
Number of 20ft containers |
564 |
|
Length |
113,12 m overall |
|
Breadth |
18,90 m moulded |
|
Draught |
6,50 m |
|
Air draft |
34,00 m keel to mast |
|
Freeboard |
Summer: 2.965 mm Winter: 2.728 mm |
|
Depth |
11,28 m moulded |
|
Speed |
14,0 knots |
|
Built |
1991 |
|
Keel laid |
1991 |
|
Date of completion |
31.07.1991 |
|
Builder |
Miho Zosensho Shipyard |
|
Yard number |
1381 |
|
Hull material |
Steel |
|
Main engine |
1x Hanshin 6LF58 diesel engine - 4.413 kW |
|
Propellers |
1 |
|
Number of holds |
Lower hold: 73,50 x 15,70 x 4,45 m - Area: 1.084,68 m² Tween deck: 75,60 x 15,70 x 6,00 m - Area: 1.127,28 m² |
|
Hatchway dimensions |
Weather deck: Hatch 1: 33,80 x 15,70 m Hatch 2: 35,70 x 15,70 m Tweendech: Hatch 1: 70,70 x 15,70 m |
|
Hatch cover type |
Weather deck: MacGregor, end folding type, each cover of 4 flat steel panels, hydraulic Tweendeck: Flush type, side opening with crane, except first section opening fwd by hydraulic |
|
Cargo capacity |
Tweendeck hatches closed: Grain: 12.581,89 m³ / Bales: 11.860,22 m³ Tweendeck hatches open: Grain: 11.590,57 m³ / Bales: 11.527,75 m³ |
|
Maximum permissible loads |
Hatch covers (Weather deck): 1,75 t/m² Twin deck covers: 3,70 t/m² tank top: 20,0 t/m² |
|
Cargo gear |
2x Cranes - SWL 50,0 t each |
|
Technical / Crewing & Operations managers |
Unicom Management Services (Cyprus) Ltd. |
|
Commercial managers |
Euroafrica Shipping Lines Cyprus Limited |
|
Previous managers |
1991 - 2009 Unicom Management Services (Cyprus) Ltd. 2009 - 2011 Unicom Management Services (St. Petersburg) Ltd. |
|
Operator |
EuroAfrica |
|
Owner |
EuroAfrica Shipping Lines Cyprus |
|
Previous owners |
1991 - 2011 Pevek Navigation Co. Ltd. 2011 - 2011 Unicom Management Services (Cyprus) Ltd. |
|
Registered owner |
Gerlia Shipping Co., Ltd. |
|
Renamed |
2016 Vyacheslav Anisimov - Sierra Leone - Call sign: 9LU2335 |
|
Last update |
09 April 2016 |
