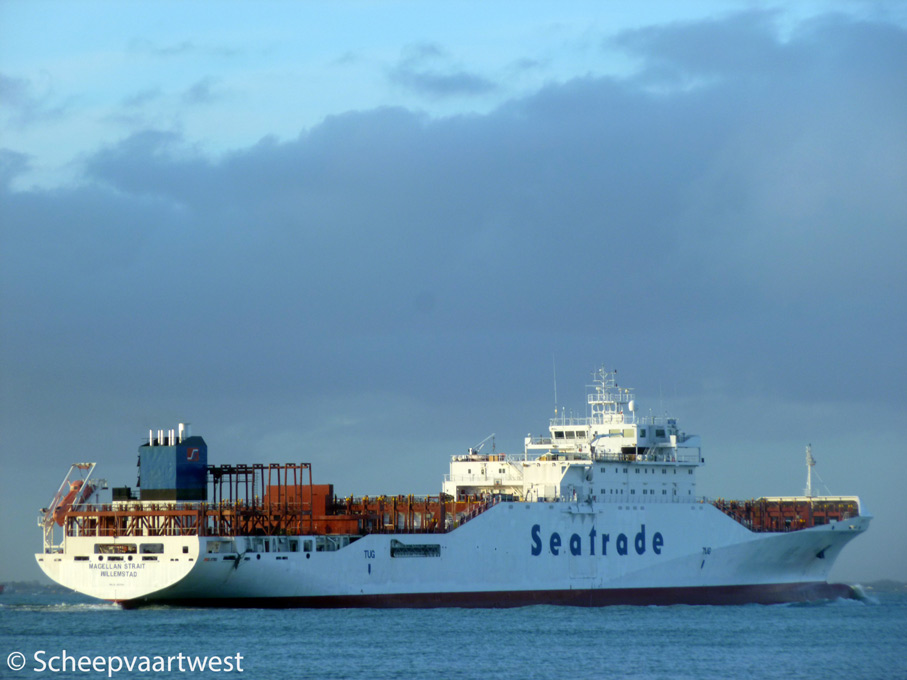

Magellan Strait 01
Westerschelde 30 November 2013

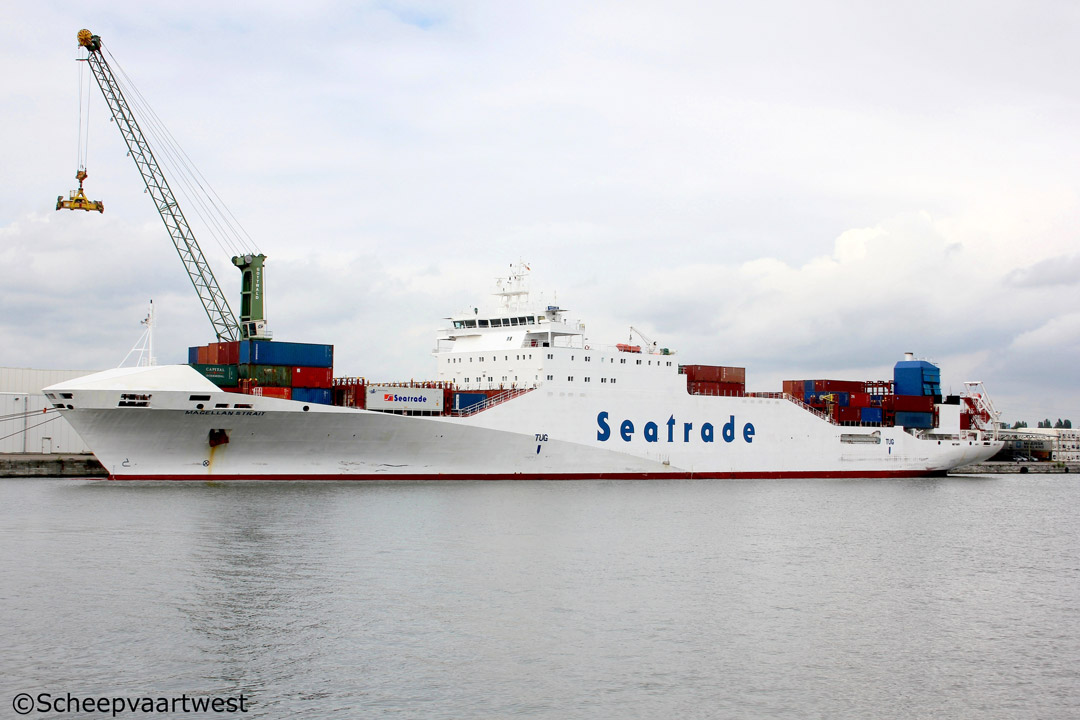

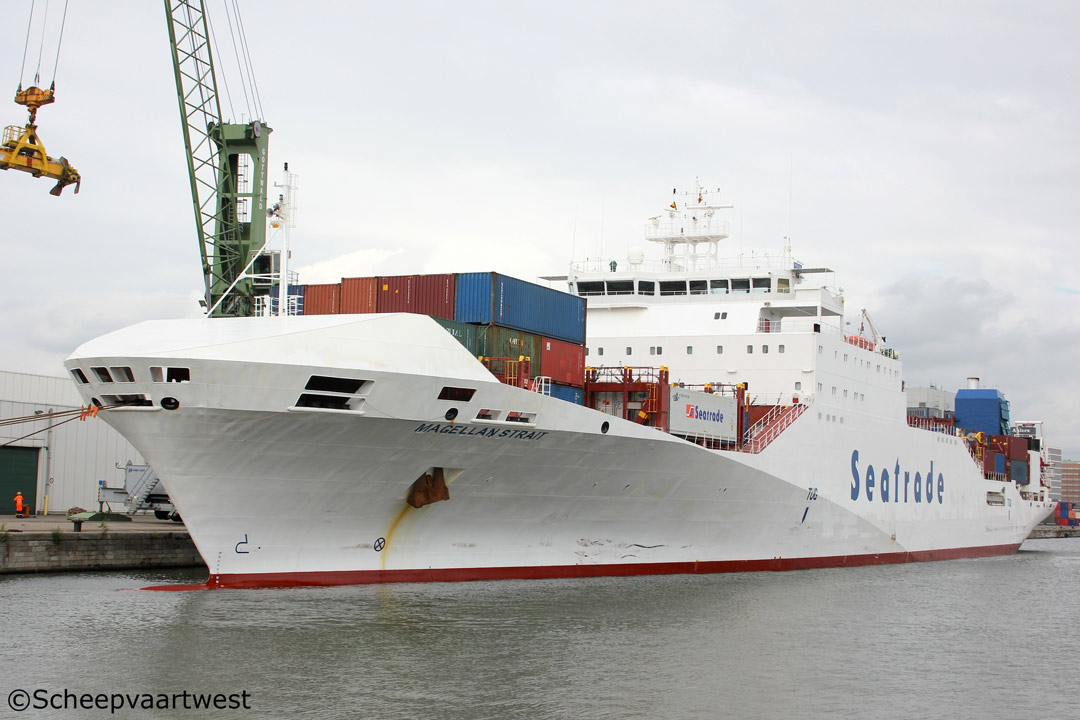

Magellan Strait 03   Magellan Strait 04
Antwerpen 15/07/14 Antwerpen 15/07/15



Name

MAGELLAN STRAIT

Previous names

2001 Start built as: Rio Alexander

11.2003 - 10.2011 Carmel Ecofresh

10.2011 - 05.2013 Cala Paradiso

Type

Refrigerated cargo ship

IMO-number

9267534

Call sign

PJOT

Flag

The Netherlands Antilles - Curaçao

Port of registry

Willemstad

Previous flags

11.2003 - 12.2005 Liberia, Monrovia

12.2005 - 10.2011 Bermuda, Hamilton - Call sign: ZCDQ4

GT

18.931

DWT

Summer: 16.478 t

NT

8.827 t

Container capacity

270 FEU+74 TEU OR 630 TEU

Reefer plugs

192

Length

185,91 m overall

176,33 m between perpendiculars

Breadth

25,14 m

Draught

9,28 m

Freeboard

3.799 mm

Depth

13,40 m

Speed

21,0 knots

Built

2003

Keel laid

05.09.2001

Launch date

04.02.2003

Date of completion

26.11.2003

Builder

ENVC - Estaleiros Navais De Viana Do Castelo, S.A.
Viana Do Castelo
Portugal

Yard number

213

Hull material

Steel

Continuous decks

1

Watertight bulkheads

1

Main engine

1x Wärtsilä-Sulzer 7RT-Flex60C - 2 stroke single acting 7 cylinder 600 x 2.250 mm diesel engine - 16.520 kW / 22.446 hp at 114,0 rpm

Built: 2002

Builder: Wärtsilä Italiana SpA, Venice - Italy

Propellers

1x Screw propeller solid - at 114 rpm

Boilers

1x CHR 185,24 m² - 8,0 bar
1x CHO 185,00 m² - 8,0 bar

Generators

2x Diesel generatorsets each 1.200 kVA - 960 kW - 1.386 hp
2x Diesel generatorsets each 1.820 kVA - 1.456 kW - 2.079 hp

Emergency generator

1x Diesel generatorset 188 kVA - 150 kW - 272 hp

Number of hold

3

Number of compartments

18

Cargo capacity

460.498 ft³

Floorspace

5.204,4 m²

Cooling sections

18

Tank capacities

Fuel oil: 1.650,69 m³

Lifting equipment

1x Sideloader - SWL 10,4 t

Manager

Seatrade Shipmanagement
Laan Corpus den Hoorn 200

9728 JS Groningen

The Netherlands

Previous managers

11.2003 - 12.2005 Columbus Shipmanagement G.m.b.H., Hamburg - Germany

12.2005 - 05.2013 XT Management Ltd., Haifa - Israel

Operator

Seatrade

Owner

Seatrade Management
Athens
Greece

Previous names & owners

2001 Rio Alexander - MPC Münchmeyer Petersen Marine G.m.b.H. & Co. K.G.

11.2003 - 12.2005 Carmel Ecofresh - Horizont Schiffahrts G.m.b.H. & Co. K.G., Hamburg - Germany

12.2005 - 20.2011 Carmel Ecofresh - Valshic Shipping Ltd., Haifa - Israel

10.2011 - 05.2013 Cala Paradiso - Valshic Shipping Ltd., Haifa - Israel

Registered owner

Magellan Strait Shipping Company N.V.

Demolished

08.2007 at Alang - India

Latest data adjustment

11 November 2017
