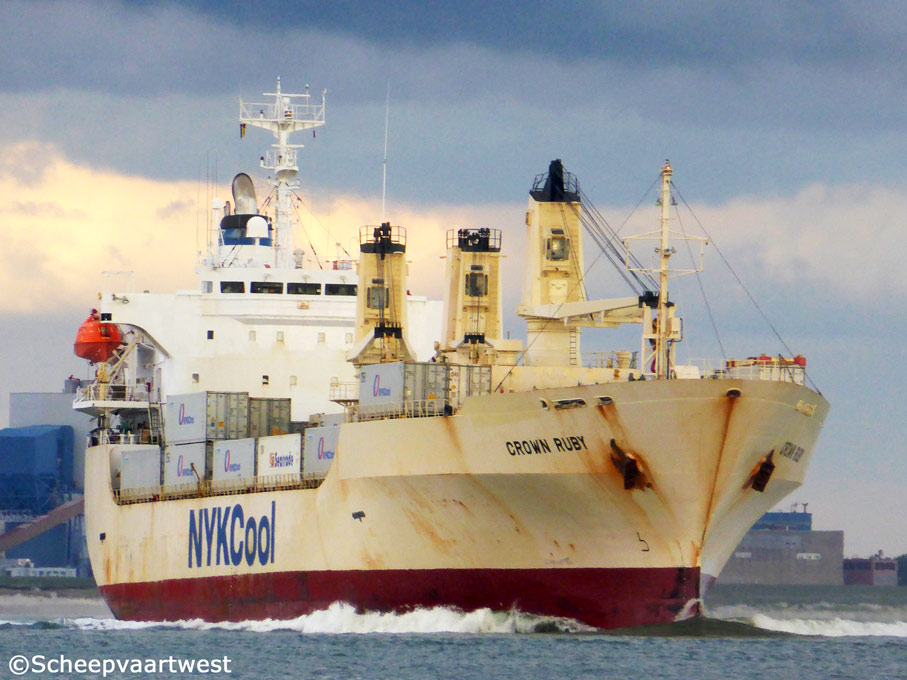

Crown Ruby 02
Westerschelde 19 August 2014

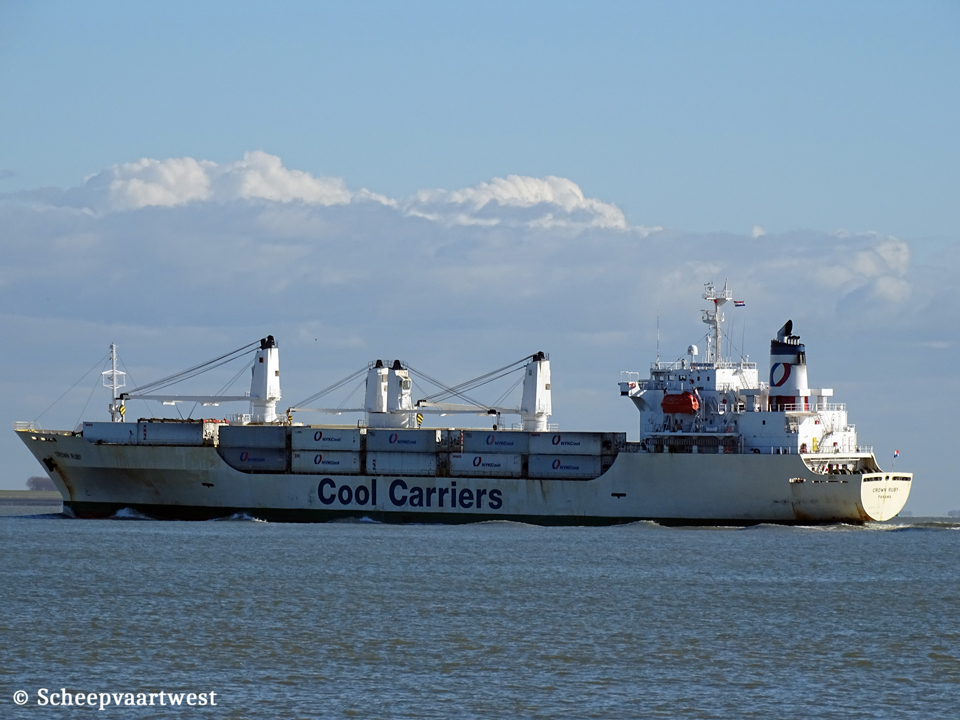

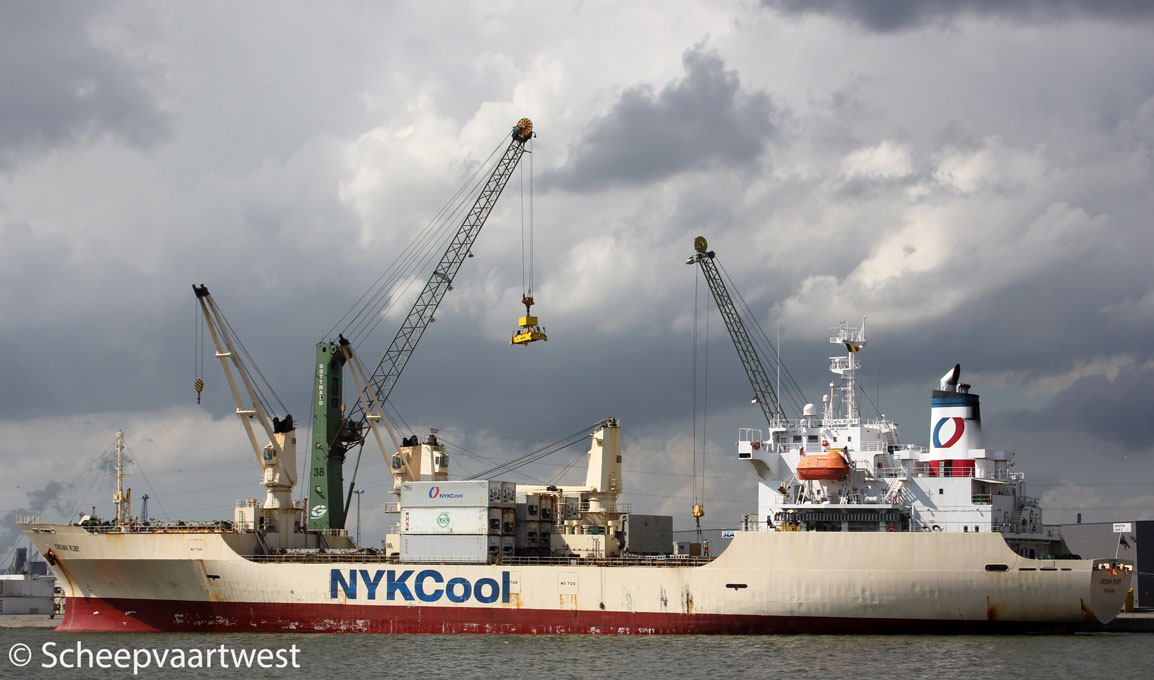

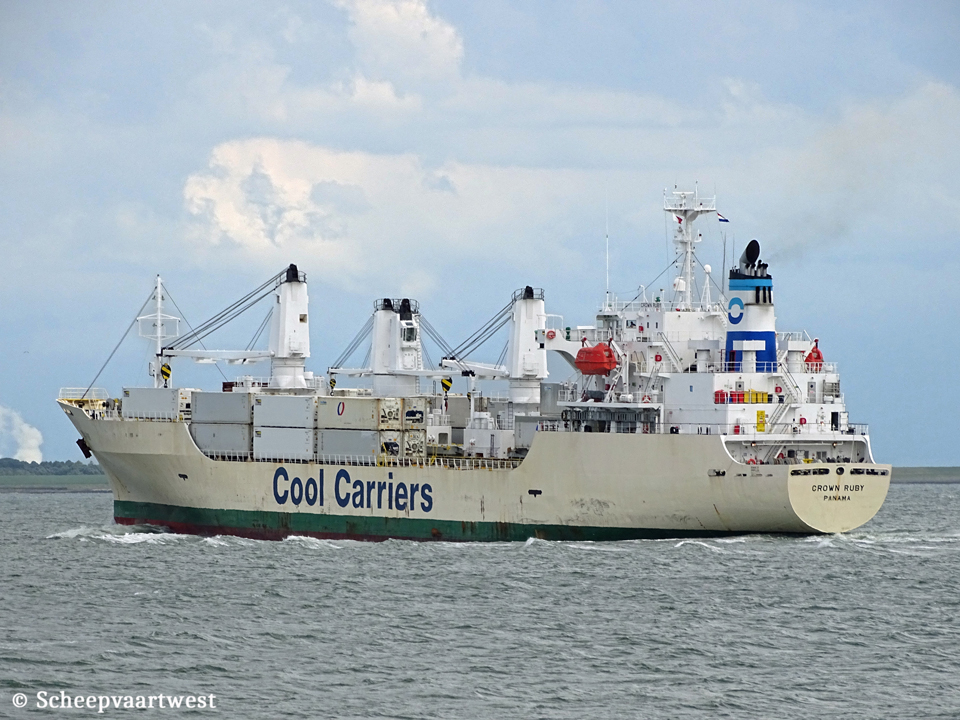

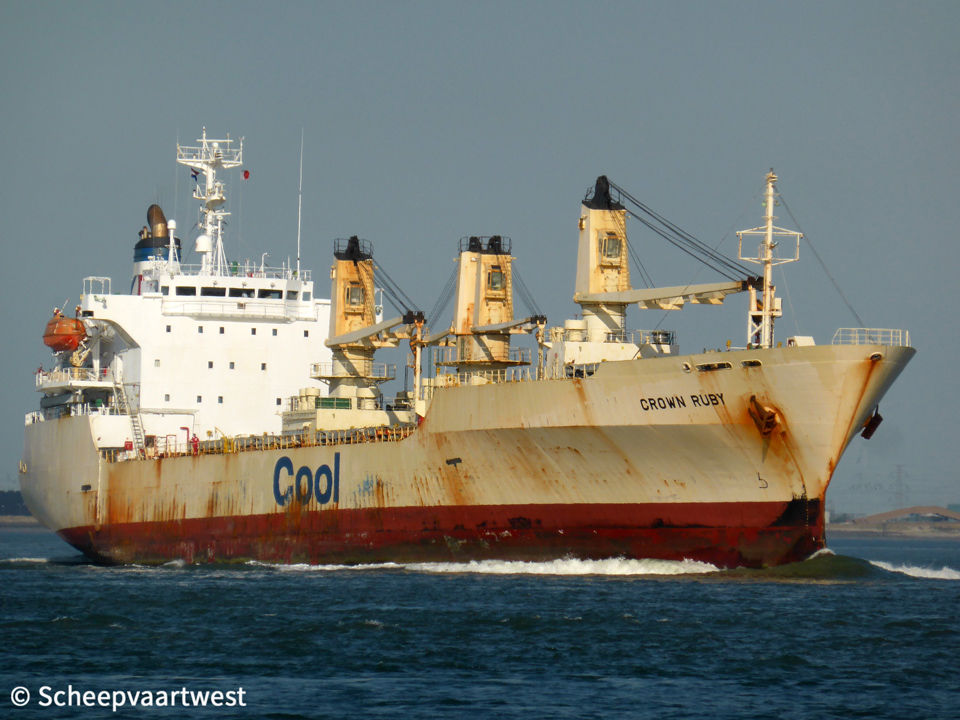

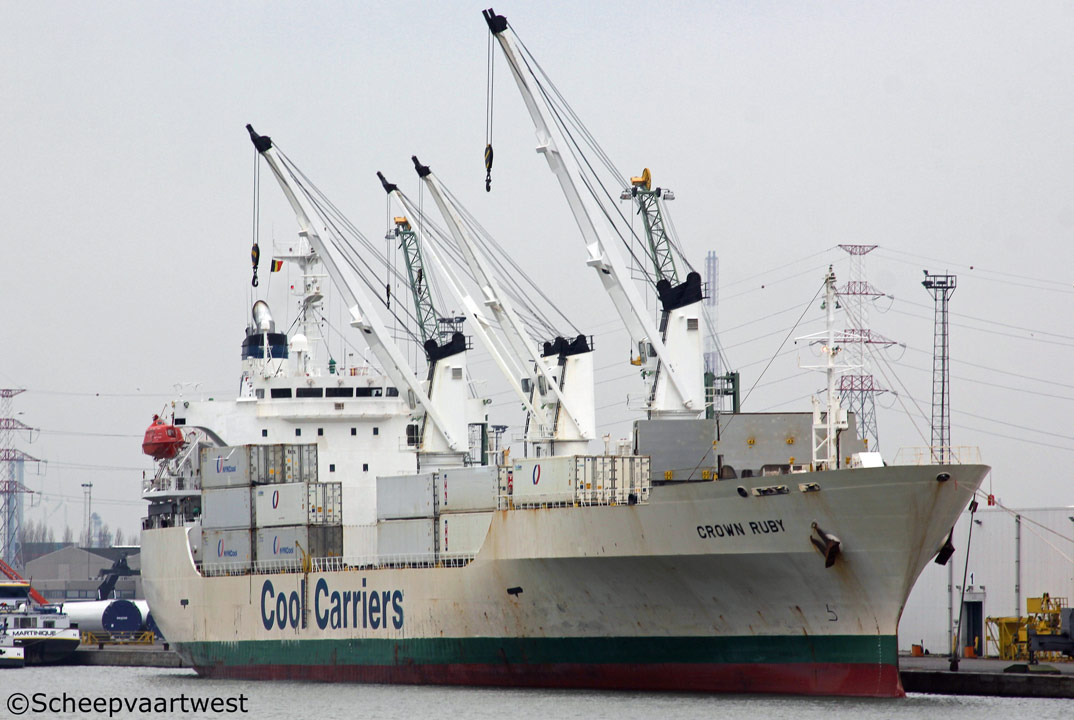

Crown Ruby 01   Crown Ruby 03   Crown Ruby 04   Crown Ruby IMO 9159103 05   Crown Ruby IMO 9159103 06
Antwerpen 29/07/2013 Antwerpen 31/01/17 Westerschelde 30/06/15   Westerschelde 15/02/16   Westerschelde 23/07/17


Name

CROWN RUBY

Type

Refrigerated cargo carrier

IMO-number

9159103

Call sign

C6DV7

Flag

Bahamas

Port of registry

Nassau

Previous flag

1997 - 2018 Republic of Panama, Panama City - Call sign: 3FUG7

GT

10.519 t

DWT

Summer: 10.338 t

NT

5.406 t

Number of 20ft containers

248

Reefer plugs

70

Length

151,99 m

Breadth

23,00 m

Draught

8,66 m m

Moulded L x B x D

139,40 x 23,00 x 13,00 m

Registered L x B x D

141,15 x 23,00 x 13,00 m

Freeboard

4.363 mm

Depth

13,00 m moulded

Speed

22,7 knots

Built

1997

Keel laid

14/05/1997

Launch date

07/07/1997

Date of completion

05/10/1997

Builder

Iwagi Zosen ShipbuildingCo., Ltd.

Kamijima

Japan

Yard number

SZ-171

Hull material

Steel

Number of decks

7

Number of bulkheads

6

Main engine

1x Mitsubishi 6UEC60LS II - 2 stroke single acting 6 cylinder 600 x 2.300 mm combustion engine 11.915 kW / 16.204 hp at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 550 mm

Propellers

1x Fixed pitched solid propeller - 5 blades

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,17 t/h

Manufacturer: Miura Co., Ltd.

Generators

5x Diesel generatorsets 3.810 kVA

Number of holds/Compartments

4/16

Number of hatches

4

13,00 x 7,80 m

Cargo capacity

15.506 m³ / 547.600 ft³

Deck area

6.231 m²

Temp min/max

-30/15°C

Air circs/hour

90

Air renew/hour

4

Tank capacities

Fuel oil: 1.806 m³

Fresh water: 381 m³

Water ballast: 923 m³

Lifting equipment

2x Cranes - SWL 35,0t each

2x Cranes - SWL 8,0 t each

Crew

25

Manager

OWH Shipmanagement GmbH

Ost-West-Handel und Schiffahrt GmbH

Breitenweg 10-12

28195 Bremen

Germany

Previous manager

Nykcool AB, Stockholm - Sweden

Norbulk Shipping U.K. Ltd. - United Kingdom

Ost-West-Handel Und Schiffahrt GmbH - Germany

Operator

Cool Carriers

Sveavägen 17

SE-111 57 Stockholm

Sweden

Registered owner

Sorrell Trading Corp.

Global Bank Tower, 18th Floor, Suit No.1801

50th Street

Panama City

Republic of Panama

Previous owner

1997 - 2001 Luster Maritime SA

2011 Nyk Reefers, London - United Kingdom

Latest data adjustment

29 May 2024
