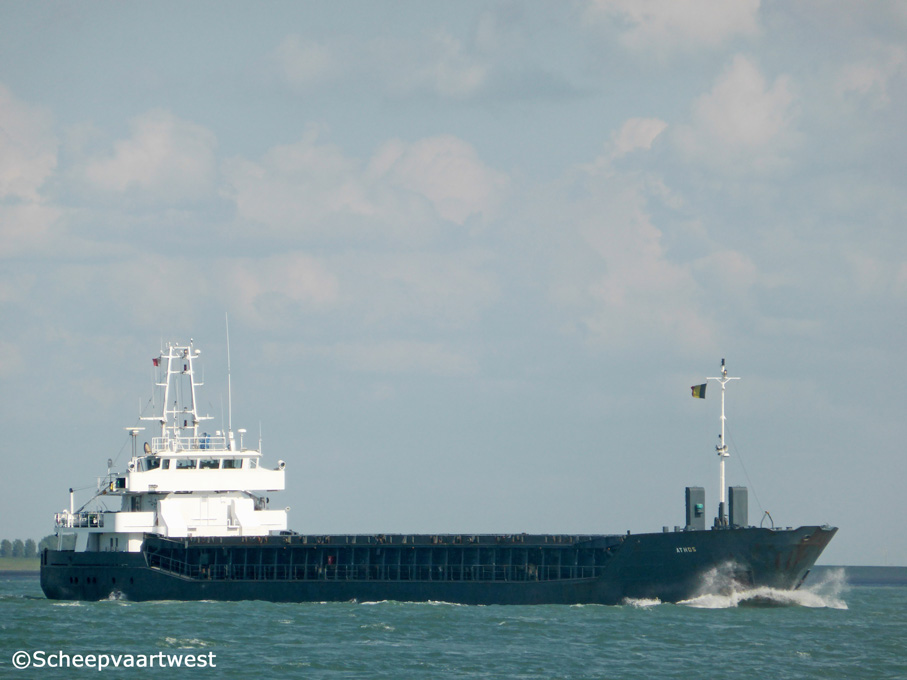

Athos 03
Westerschelde 05 June 2014

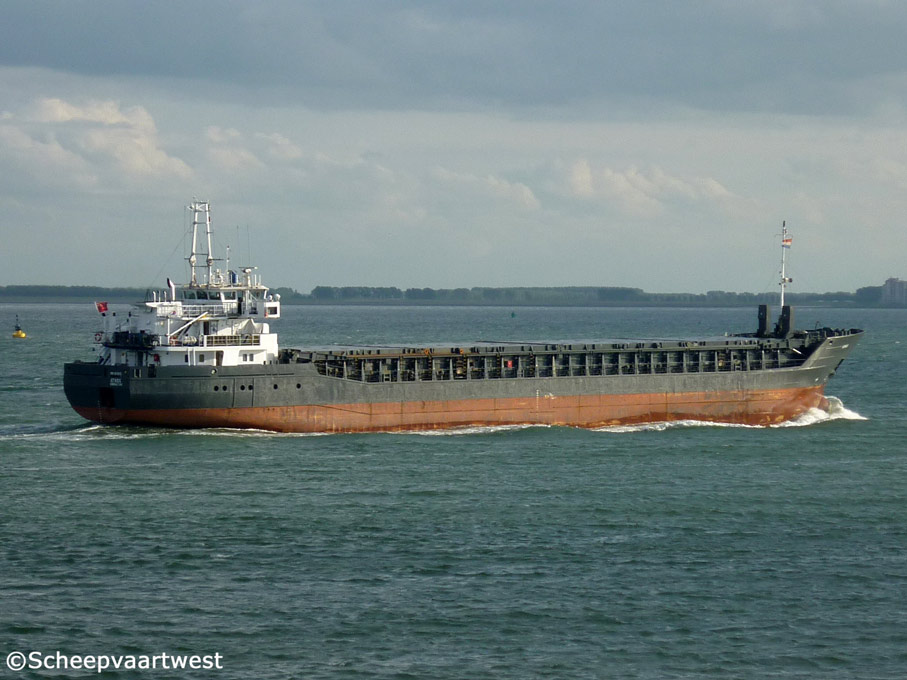

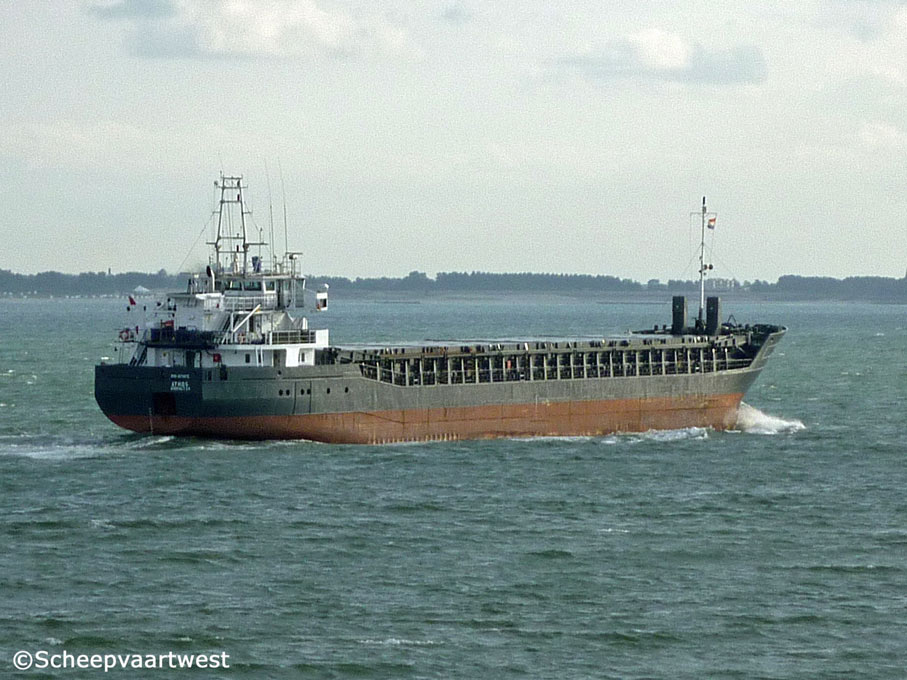

Athos 01   Athos 02
Westerschelde 13/07/12 Westerschelde 13/07/12



Name

ATHOS

Previous names

1997 - 12.2001 Northern Lady

2001 - 12.2010 Antabe

Type

Multi-purpose singledecker dry cargo vessel - equipped for carriage of dangerous goods and grain and for the transportation of cargoes in bulk

IMO-number

9171072

Call sign

ZDFN3

Flag

Gibraltar

Port of registry

Gibraltar

GT

2.446 t

DWT

Summer: 3.735 t

NT

1.396 t

Number of 20ft containers

In hold: 108

On deck: 68

Total: 76

Number of 40ft containers

In hold: 48

On deck: 28

Total: 176

Reefer plugs

6 on deck

Length

87,97 m overall

82,10 m registered

Breadth

12,80 m registered

Draught

5,51 m

Height above keel

16,70 m

Forecastle

6,70 m

Depth

7,10 m moulded

Speed

11,0 knots

Built

1997

Keel laid

17.02.1997

Launch date

21.08.1997

Date of completion

12.1997

Builder

Slovenske Lodenice a.s.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

2940

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Double bottom

Watertight bulkheads

4

Movable bulkhead

2x Movable, can be placed in 11 positions

Grain bulkhead removable

Continuous decks

2

Main engine

1x Deutz MWM SBV 8 M 628 - 4 stroke 8 cylinder 240 x 280 mm diesel engine - 1.500 kW at 900 rpm

Year of manufacture: 1997

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propellers

1x Solid propeller - aft at 228 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

Year of manufacture: 1997

Manufacturer: Somi-Fustamar, S.L.
Carretera Sant Feliu, km 21,5
17240 Llagoster , (Girona) Barcelona
Spain

Electric installations

3x plants each 380/220 V - 130 kVA

1x Plant 380 V - 49 kVA

Generators

3x MAN D 2866E main diesel engines 115 kW couples with generator 130 kVA each

Emergency generator

1x Deutz F6L912 diesel engine 47 kW at 1.500 rpm coupled with generator 49 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

1x Receive r10 litres - 30,0 bar

Bow thruster

1x JASTRAM Type Bu-40 F transverse thruster 185 kW, forward

Number of holds

1

56,55 m x 10,20 m x 8,15 m

Cargo hold capacity

Grain: 4.672 m³

Bales: 4.620 m³

Number of hatches

1

56,55 m x 10,20 m

Hatch cover type

Kvaerner multifold crocodile with hydraulic control

Strength

On tanktop: 15 t/m²

On deck: 1,56 t/m²

Hold ventilation

6 Airchanges per hour

Tank capacities

MGO: 144,30 m³

Ballast water: 1.670,20 m³

Freshwater: 48,30 m³

Lifting equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Cargo gear

Gearless

Crew size

9

Manager

Briese Schiffahrts GmbH & Co. KG
Hafenstrasse 12
26789 Leer
Federal Republic of Germany

Registered owner

Breeze Shipping Co. Ltd.
28 Irish Town
Gibraltar

Remarks

Wheelhouse hydraulic lowering

Last data update

14 January 2014
