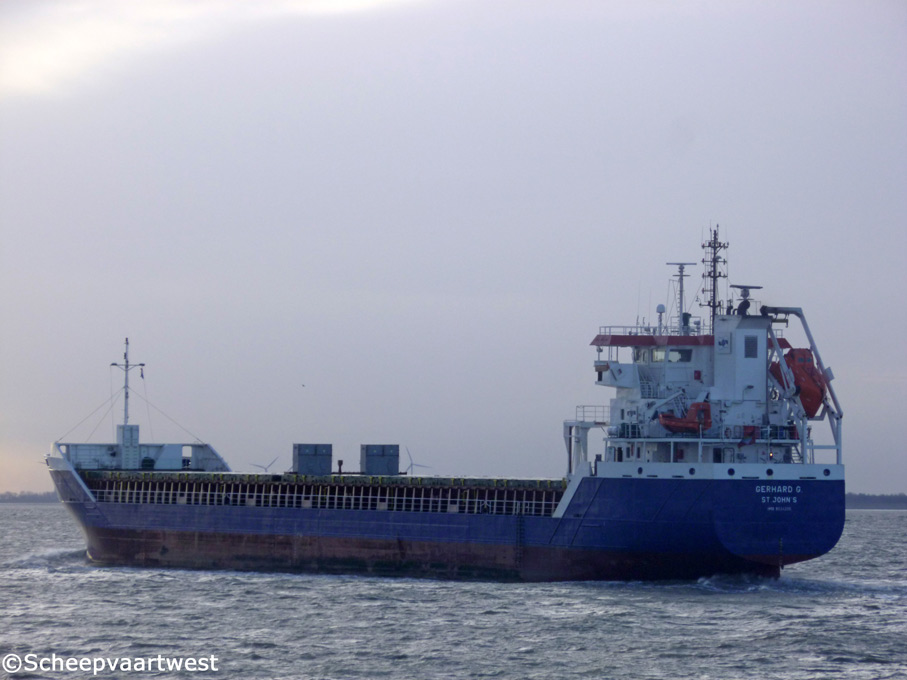

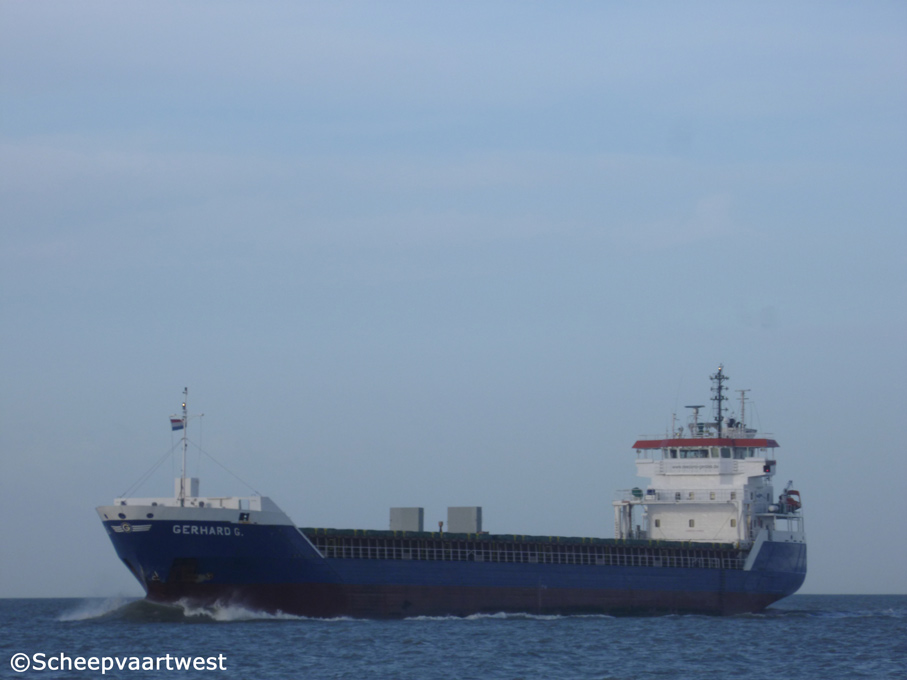

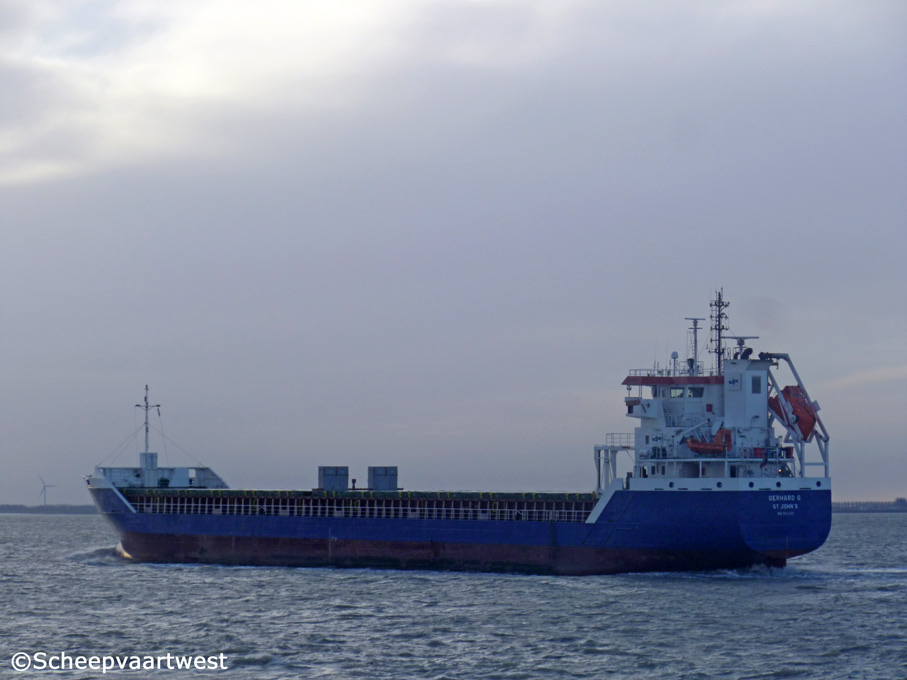

Westerschelde 05 February 2014 |
 |
 |
|
| Westerschelde 05/02/14 | Westerschelde 05/02/14 |
|
Name |
GERHARD G |
|
Type |
Multi-purpose - Bulk carrier - heavycargo - equipped for carriage of containers |
|
IMO-number |
9534286 |
|
Call sign |
V2FD5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
4.255 t |
|
DWT |
Summer: 6.158 t Winter: 5.968 t |
|
NT |
2.341 t |
|
Number of 20ft containers |
256 |
|
Length |
114,40 m overall 108,30 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
Summer 6,03 m Winter: 5,91 m |
|
Keel to top antenna |
27,78 m |
|
Air draft |
23,68 m |
|
Freeboard |
8.112 mm |
|
Depth |
8,10 m |
|
Speed |
Service: 12,0 knots Max: 16,0 knots |
|
Built |
2011 |
|
Keel laid |
10/12/2007 |
|
Date of completion |
16/03/2001 |
|
Builder casco |
Jiangsu Yangzi Changbo Shipbuilding Co.,Ltd. Jiang Yin China Yard number: CBSY06-008 |
|
Builder completion |
Volharding Shipyard Foxhol The Netherlands Yard number: 670 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Moveable bulkhead |
One moveable bulkhead each hold |
|
Main engine |
1x MaK 9M25C - 4 stroke 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 750 rpm Built: 14/04/2009 Builder: Caterpillar Motoren Guangdong Co., Ltd., Fushan - P.R.China |
|
Propellers |
1x Controllable pitch propeller - aft at 194 rpm |
|
Boilers |
1x CHO Heatmaster 8,80 m² - 4,0 bar |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
2x Main diesel generatorsets each 235 kVA - 188 kW - 340 hp |
|
Bow thruster |
1x 359 kW |
|
Number of holds |
2 Hold 1: 37,37 x 11,70 x 8,99 m Hold 2: 43,79 x11,70 x 8,99 m |
|
Cargo hold capacity |
Hold 1: 3.441 m³ / 121.510 ft³ Hold 2: 4.121 m³ / 145.530 ft³ |
|
Hold ventilation |
6x Electric ventilation air changes per h |
|
Number of hatches |
2 Hatch 1: 37,37 x 11,70 m Hatch 2: 43,49 x 11,70 m |
|
Hatch type |
Hydraulically Gantry crane operated pontoons |
|
Max permitted loads |
Tanktop: 15,0 t/m² On deck: 2,2 t/m² |
|
Tank capacities |
MGO: 130 m³ IFO: 219 m³ Water ballast: 2.884 m³ |
|
Manager |
Gerdes Reederei Haren Germany |
|
Owner |
Gerdes Bereederungs GmbH & Co., KG Hermannstraße 1a Haren Germany |
|
Renamed |
2016 - 2020 Wilson Volos Antigua & Barbuda, St. John's - Call sign: V2FD5 Manager: Wilson Ship Managment AS 2020 Gerhard G |
|
Latest data adjustment |
18 August 2021 |
