Malaga - Spain 30 January 2014 |
|
Name |

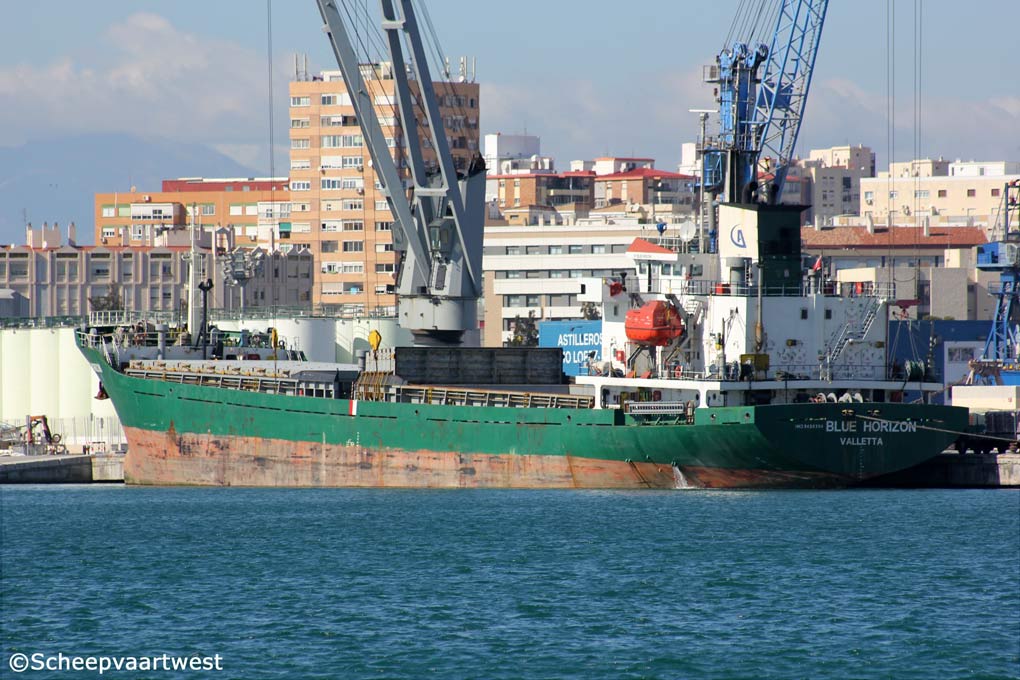

BLUE HORIZON |
|
Previous names |
2007 Launch as: Chang An Honor 05/2007 - 10./2009 Alfa Sun |
|
Type |
Multi-purpose dry cargo ship - Single deck |
|
IMO-number |
9420394 |
|
Call sign |
9HA2128 |
|
Flag |
Malta |
|
Previous flags |
Turkey - Istanbul - Call sign:TCSQ5 |
|
Port of registry |
Valletta |
|
GT |
4.109 t |
|
DWT |
Summer: 6.086 t Winter: 5.886 t |
|
NT |
2.332 t |
|
Length |
99,89 m overall 95,60 m between perpendiculars |
|
Breadth |
16,60 m |
|
Draught |
Summer: 6,70 m Winter: 6,56 m |
|
Freeboard |
1.714 mm |
|
Depth |
8,40 m moulded |
|
Speed |
12,0 knots |
|
Built |
2007 |
|
Date of completion |
26/04/2007 |
|
Builder |
Zhejiang Linhai Hangchang Shipping Manufacture Co., Ltd. Taizhou China |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Yanmar 6N330 - 4 stroke 6 cylinder 330 x 440 mm diesel engine - 2.207 kW / 2.999 hp at 620 rpm Built: 05/2006 Builder: Qingdao Zichai Boyang Diesel Engine Co.,Ltd., Qingdao - China |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHM 82,00 m² - 7,0 bar |
|
Generators |
2x Cummins NTA855G2M main diesel generatorsets each 313 kVA - 250 kW - 386 hp / 440 Volt 50 Hz |
|
Emergency generator |
1x Cummins NTA855G2M diesel generatorset 313 kVA - 250 kW - 386 hp |
|
Number of holds |
2 Hold 1: Length 33,6 m - Breadth aft : 14,6 m fore: 4,08 m Hold 2: Length 33,6 m - Breadth aft : 7,8 m fore: 14,60 m |
|
Total capacity of holds |
Grain: Hold 1: 3.918,79 m³ Hold 2: 4.085,49 m³ Total: 8.004,28 m³ |
|
Number of hatches |
2 Hatch 1: 25,20 x 12,00 m hatch 2: 25,20 x 12,00 m |
|
Type of hatch covers |
Hydraulic single pull weatherdeck hatch covers |
|
Cargo gear |
2x Cranes - SWL 30 t each |
|
Manager |
Sonata Split Croatia |
|
Registered owner |
Blue Horizon Maritime Ltd. Care of Sonata doo ul Spinciceva 2D HR-21000 Split Croatia |
|
Renamed |
2019 Blue H Republic of Panama, Panama City - call sign: 3FRN9 |
|
Latest data adjustment |
19 March 2014 |
