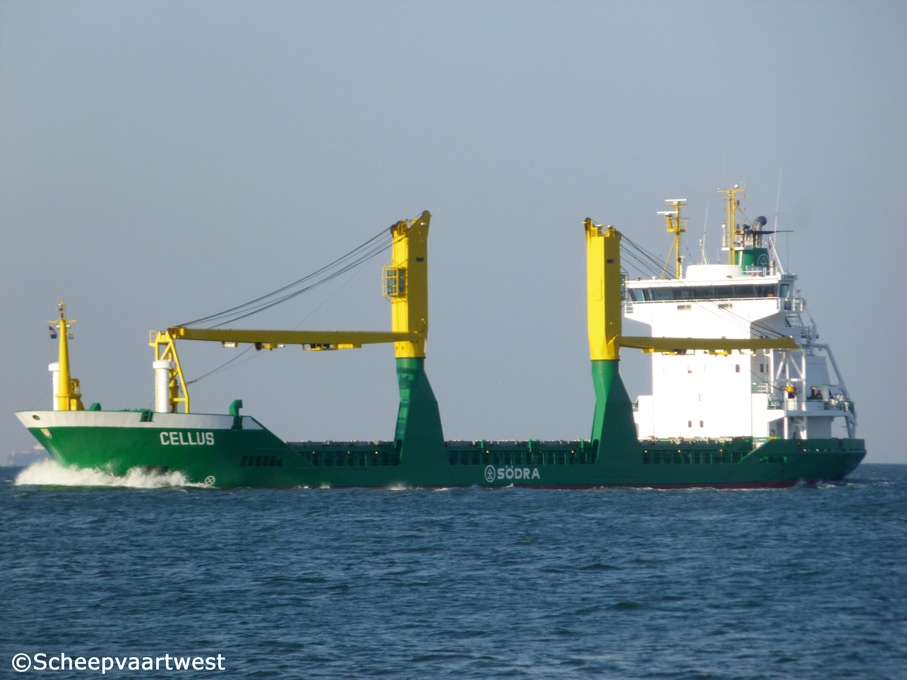

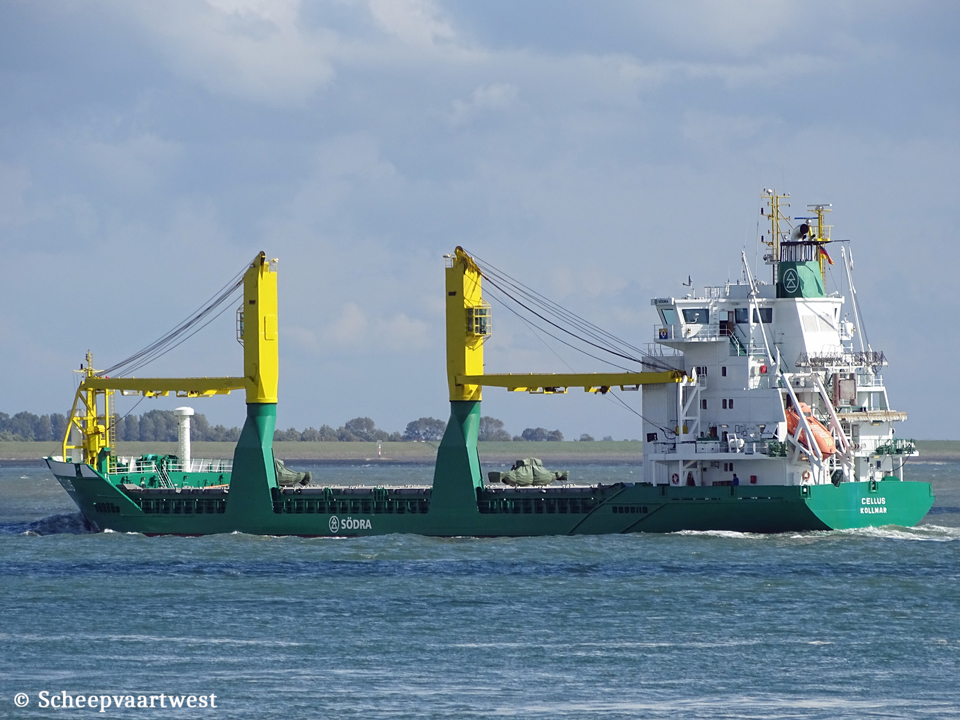

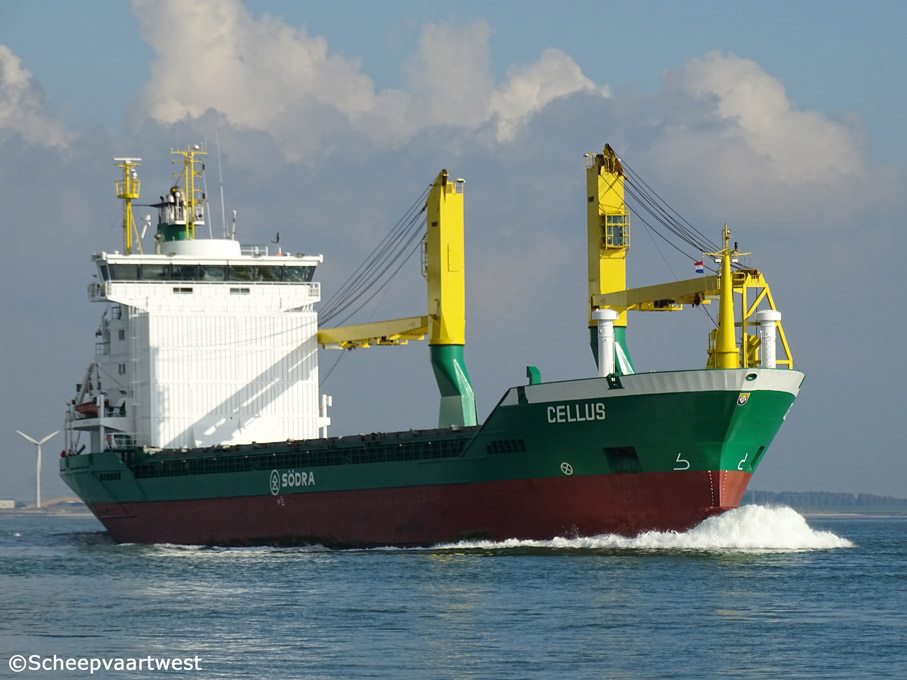

Westerschelde 09 October 2015 |
 |
 |
|
| Westerschelde 29/09/13 | Westerschelde 09/09/17 | |
|
Name |
CELLUS |
|
Previous names |
Launch as: Heike Braren |
|
Type |
General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9173317 |
|
Call sign |
DIUR |
|
Flag |
Germany |
|
Port of registry |
Kollmar |
|
GT |
4.231 |
|
DWT |
Summer: 6.251,93 t |
|
NT |
2.150 |
|
Number of 20ft containers |
333 |
|
Length |
99,98 m overall 92,44 m registered |
|
Breadth |
17,00 m registered |
|
Draught |
7,27 m |
|
Depth |
9,25 m moulded |
|
Speed |
15,0 knots |
|
Built |
1998 |
|
Keel laid |
12/07/1994 |
|
Launch date |
02/08/1998 |
|
Date of completion |
10/1998 |
|
Builder |
Peterswerft Wewelsfleth GmbH & Co. KG Am Hafen 6 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
653 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull - Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Number of decks |
3 |
|
Main engine |
1x MaK 8M32 - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.599 kW / 4.893 hp at 600 rpm Year of manufacture: 1998 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 166 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1997 |
|
Electric installations |
1x Plant 380/220 V - 374 kVA 1x Plant 380 V - 982 kVA 1x Plant 380 V - 140 kVA 1x Plant 24 V - 35 Ah |
|
Shaft generator |
1x 982 kVA |
|
Generators |
1x MAN 6L16/24 main diesel generatorset 982 kVA |
|
Emergency generator |
1x Volvo TAMD 122A diesel generatorset 140 kVA |
|
Batteries |
1x Battery for automation 35 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30 bar 1x Receiver 30 litres - 30 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM 300 kW, forward |
|
Cargo capacity |
Bale: 6.882 m³ Grain: 7.091 m³ |
|
Tank capacities |
Fuel oil: 301 m³ Water ballast: 2.558 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 498,60 m Diameter: 44 mm |
|
Cargo gear |
2x Cranes - SWL 40,0 t each |
|
Crew size |
15 |
|
ISM & commercial manager |
Rörd Braren Bereederungs-GmbH & Co. KG Am Deich 31 25377 Kollmar Federal Republic of Germany |
|
Operator |
Södra Shipping AB Växjö Sweden |
|
Registered owner |
MS "HEIKE BRAREN" GmbH & Co. KG Am Deich 31 25377 Kollmar Federal Republic of Germany |
|
Latest data adjustment |
15 December 2024 |
