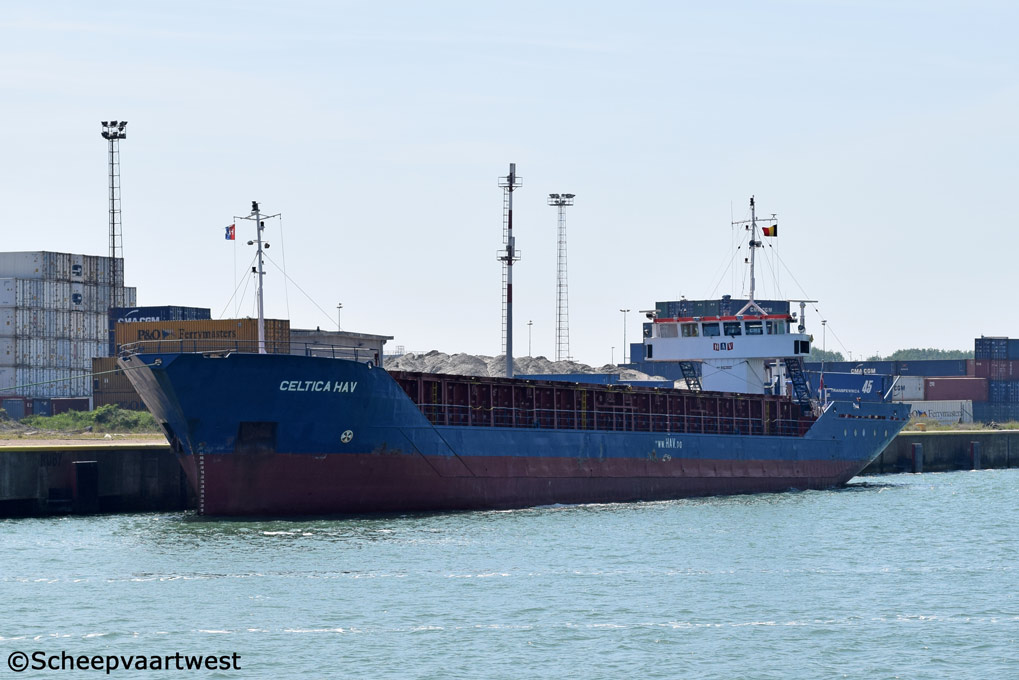

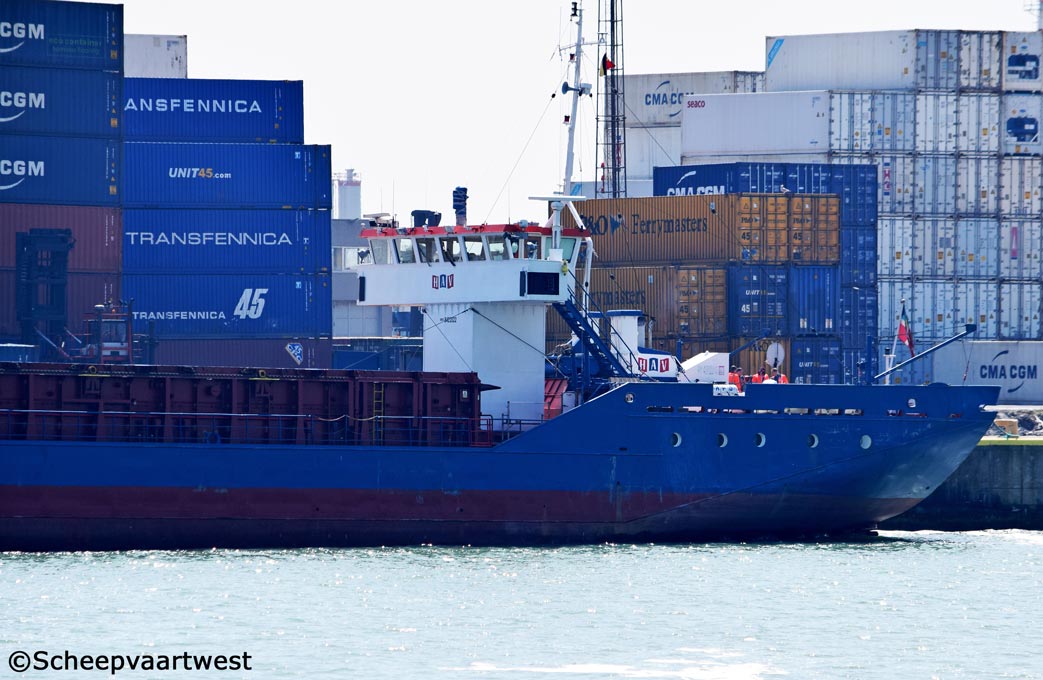

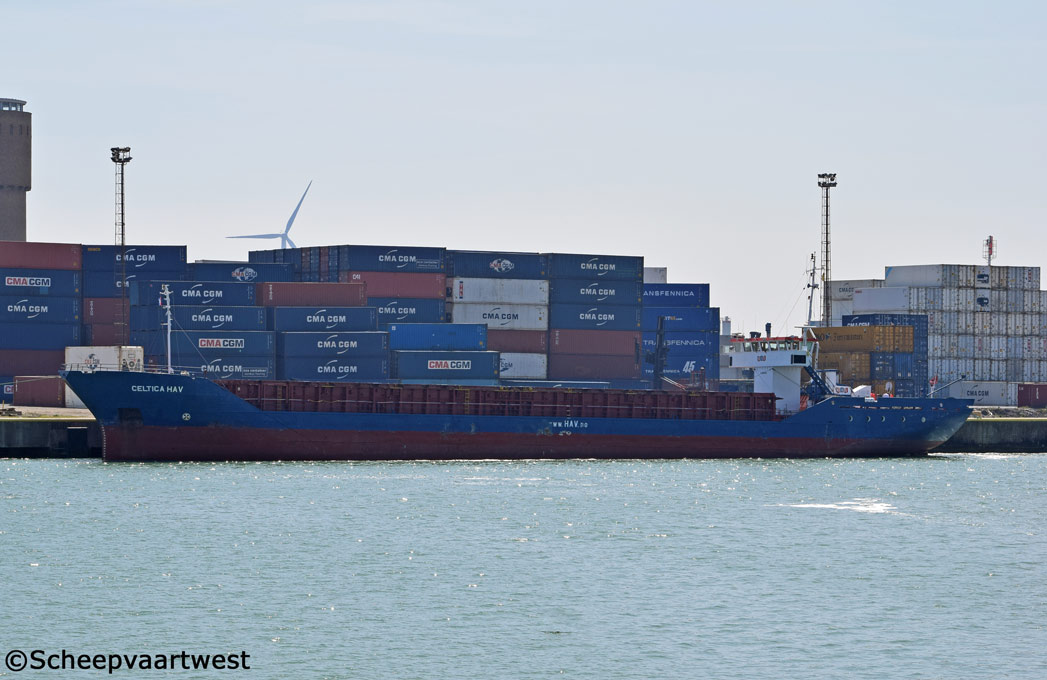

Zeebrugge 16 May 2014 |
 |
 |
|
| Zeebrugge 16/05/14 | Zeebrugge 16/05/14 |
|
Name |
CELTICA HAV |
|
Previous names |
1984 - 14.04.1994 Haithabu 14.04.1994 - 04.1998 Pirat 04.1998 - 10.2000 Steel Trader 10.2000 - 08.2004 Georgette Trader 08.2004 - 03.2005 Astrix 03.2005 - 25.08.2005 Celrica Hav |
|
Type |
General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
8422022 |
|
Call sign |
C6UL3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
1.537 t |
|
DWT |
2.305 t |
|
DWCC |
Summer: 2.150 t Winter: 2.080 t |
|
NT |
774 t |
|
Number of 20ft containers |
80 |
|
Length |
82,45 m overall 77,35 m registered |
|
Breadth |
11,31 m |
|
Draught |
Summer: 4,10 m |
|
Air draft |
Min: 6,51 m Max.: 17,50 m |
|
Keel to top with antenna |
20,10 m |
|
Forecastle |
6,55 m |
|
Poop |
12,60 m |
|
Depth |
5,40 m moulded |
|
Speed |
Service: 9,5 knots |
|
Built |
1984 |
|
Keel laid |
01.10.1984 |
|
Launch date |
28.10.1984 |
|
Date of completion |
01.12.1984 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
604 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz SBA 8 M 528 - 4 stroke 8 cylinder 220 x 280 mm diesel engine - 736 kW at 735 rpm Year of manufacture: 1984 Manufacturer: Klöckner-Humboldt-Deutz AG 51057 Köln Federal Republic of Germany |
|
Propellers |
1x Solid propeller - aft at 244 rpm |
|
Boilers |
1x Steam boiler, oil fired Year of manufacture: 1984 |
|
Electric installations |
1x Plant 380/220 V - 78 kVA 1x Plant 380/220 V - 210 kVA 1x Plant 380 V - 57 kVA |
|
Shaft generator |
1x 57 kVA |
|
Generators |
1x Main diesel generatorset 210 kVA 1x Main diesel generatorset 78 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 132 kW, forward |
|
Number of holds |
1 Dimensions: 50,20 x 9,00 x 6,25 m |
|
Cargo capacity |
Grain: 2.865 m³ / 101.196 ft³ Bales: 2.865 m³ / 101.196 ft³ |
|
Timber capacity |
2.700 m³ |
|
Number of hatches |
1 Dimension: 50,00 x 9,30 m |
|
Hatch type |
Piggy back multi stack |
|
Max permissible loading |
Hatch covers: 1,5 t/m² Tank top: 11,0 t/m² |
|
Ventilation |
6x Air-changes/hours |
|
Tank capacities |
Gas oil: 95 m³ fresh water: 59,4 m³ Water ballast: 967,6 m³ |
|
Anchor equipment |
3x Anchors weight each 1.020 kg Chain length: 357,50 m |
|
Crew |
7 |
|
Manager |
HAV Ship Management NorRus AS Office 411 Teatralnaya ul. 35 236006 Kaliningrad Russian Federation |
|
Registered owner |
HAV Bulk AS Filipstadveien 5 0260 Nesttun Norway |
|
Special annotation |
Wheelhouse hydraulic lowering |
|
Latest data adjustment |
30 June 2014 |
