Westerschelde 05 May 2014 |
|
Name |

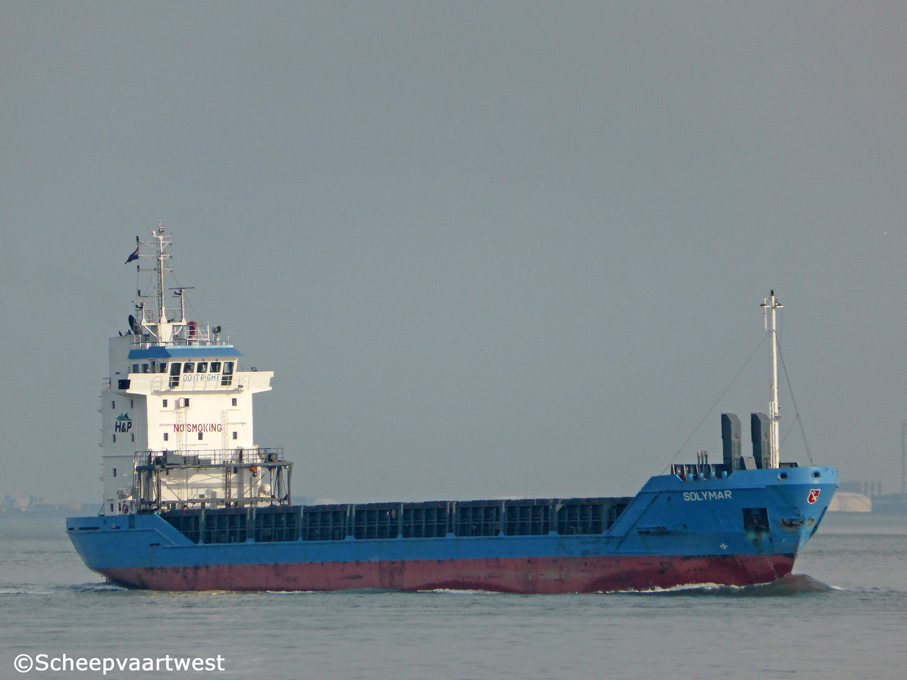

SOLYMAR |
|
Type |
General cargo ship - Equipped for carriage of containers Multi-purpose carrier / Bulk carrier |
|
IMO-number |
9167344 |
|
Call sign |
P3WG9 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
2.820 t |
|
DWT |
Summer: 4.106 t |
|
NT |
1.503 t |
|
Number of 20ft containers |
In hold: 111 On deck: 135 Total: 246 |
|
Container capacity 14t |
164 |
|
Length |
89,72 m overall 84,98 m registered |
|
Breadth |
13,60 m |
|
Draught |
5,69 m |
|
Depth |
7,20 m |
|
Speed |
Service: 11,5 knots |
|
Built |
1998 |
|
Keel laid |
27.03.1997 |
|
Launch date |
08.1997 |
|
Date of completion |
06.1998 |
|
Builder |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
583 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 8M25 - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 2.400 kW at 750 rpm Year of manufacture: 1998 Manufacturer: MaK Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller, aft at 173 rpm |
|
Electric installations |
2x Plants each 380/220 V - 330 kVA 1x Plant 380 V - 330 kVA 1x Plant 380 V - 120 kVA |
|
Shaft generator |
1x 330 kVA |
|
Generators |
2x Main diesel generatorsets each 330 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 200 kW, forward |
|
Number of holds |
2 |
|
Hold capacity |
5.628 m³ |
|
Max. deck load |
Tank top: 15,0 t/m² Tween deck: 3,0 t/m² Hatch cover: 1,7 t/m² |
|
Tank capacities |
IFO: 304,8 t MGO: 48,5 t Fresh water: 62 t |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Crew size |
8 |
|
Manager |
MarShip Management GmbH & Co. KG Boschstr. 21 49733 Haren/Ems Federal Republic of Germany |
|
Registered owner |
H & H Schifffahrts UG (haftungsbeschränkt) & Co. KG MS "ZILLERTAL" Boschstr. 21 49733 Haren/Ems Federal Republic of Germany |
|
Latest data adjustment |
02 June 2014 |
