Westerschelde 08 May 2015 |
 |
 |
|
| Westerschelde 29/09/18 | Zelzate, Belgium 10/05/14 | |
|
Name |

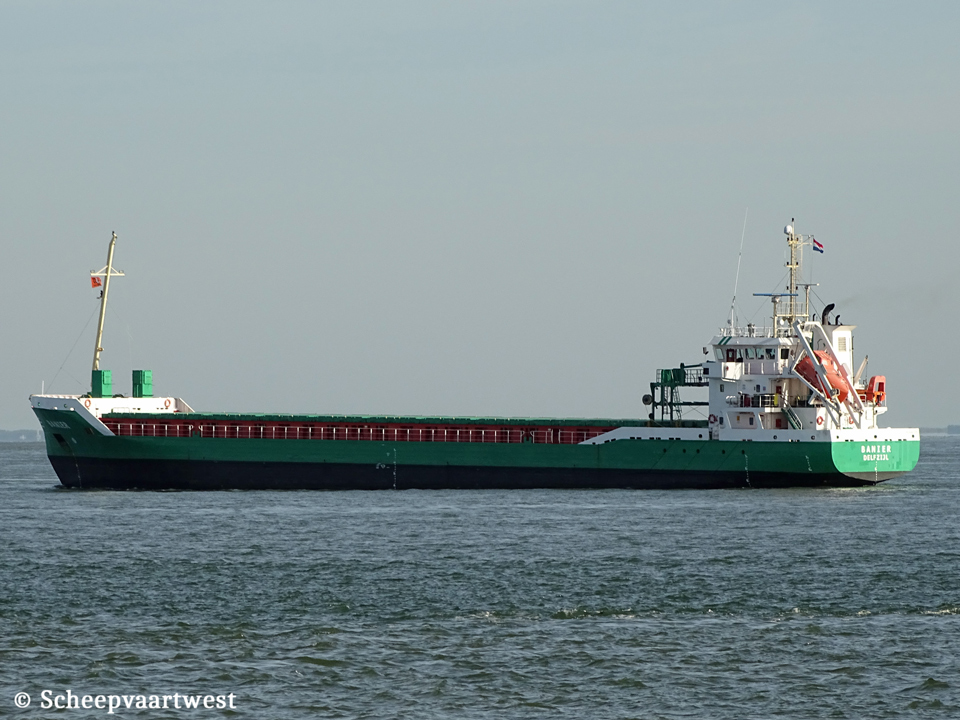

BANIER |
|
Type |
General cargo ship - heavy cargo - Timber cargoes on upper deck hatch covers |
|
IMO-number |
9467172 |
|
Call sign |
PBRJ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.862 t |
|
DWT |
Summer: 4.088 t Winter: 3.952 t |
|
DWCC |
Summer: 3.950 t Winter: 3.810 t |
|
NT |
1.295 t |
|
Number of 20ft containers |
On deck: 40 |
|
Length |
94,70 m overall 91,35 m between perpendiculars |
|
Breadth |
13,40 m |
|
Draught |
Summer: 5,69 m |
|
Air draft |
23,00 m in ballast |
|
Freeboard |
1.826 mm |
|
Depth |
7,80 m |
|
Speed |
12,0 loaded |
|
Built |
2009 |
|
Keel laid |
12/11/2007 |
|
Launch date |
18/10/2008 |
|
Date of completion |
24/07/2009 |
|
Delivery date |
06/08/2009 |
|
Builder |
Zhejiang Hexing Shipyard Wenling China |
|
Yard number |
HXC 06-001 |
|
Hull material |
Steel |
|
Movable bulkhead |
2 |
|
Number of decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 2.010 kW / 2.731 hp at 751 rpm Build: 30/05/2008 Builder: Caterpillar Motoren GmbH & Co., Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHR Aalborg Industries 74,90 m² - 10,0 bar 1x CHO Aalborg Industries 122,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 390 kVA - 312 kW - 247 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1x Boxshaped, steel floored Dimension: 61,60 x 11,20 x 8,34 m |
|
Total capacity of holds |
5.522,10 m³ / 194.500 ft³ |
|
Timber capacity |
Timber cargoes on upper deck hatch covers 5.500 m³ |
|
Number of hatches |
1 Dimension: 61,60 x 11,20 m |
|
Max permitted loads |
Tanktop: 15,0 t/m² Deck load: 2,0 t/m² |
|
Tank capacities |
Fuel: 211,2 m³ |
|
Manager |
Wijnne & Barendsz B.V. Delfzijl The Netherlands |
|
Previous manager |
08/2009 - 09/2015 Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., 9934 AR Delfzijl -The Netherlands |
|
Registered owner |
Banner Shipping B.V. Delfzijl The Netherlands |
|
Renamed |
10/2019 Lady Dawn The Netherlands, Delfzijl - Call sign: PBRJ Owner: B.V. Firmanten Lady Dawn, Delfzijl - The Netherlands Manager: Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl - The Netherlands 11/2019 Lady Dawn The Netherlands, Delfzijl - Call sign: PBRJ Owner: Rederij Lady Dawn, Delfzijl - The Netherlands Manager: Wijnne & Barendsz B.V., Delfzijl - The Netherlands 05/2004 Humber Sprinter Antigua & Barbuda, St. John’s - Call sign: V2RD8 Owner: HS Shipping Company Ltd, St. John's - Antigua & Barbuda Manager: Schiffahrtskontor Tom Worden GmbH. & Co K.G., Oldendorf - Germany |
|
Latest data adjustment |
14 August 2024 |
