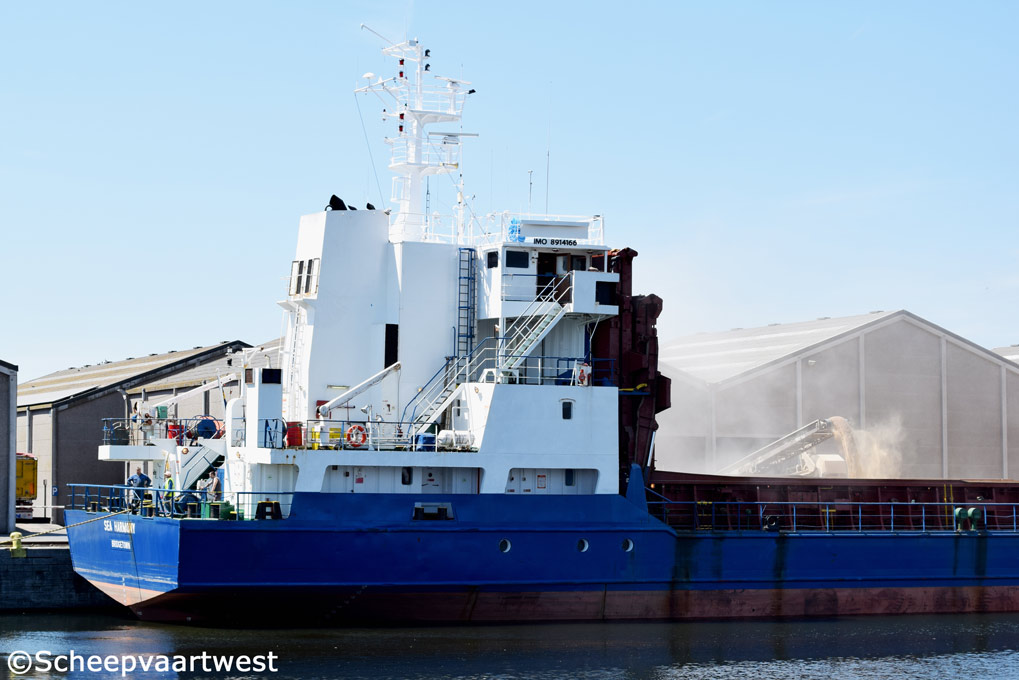

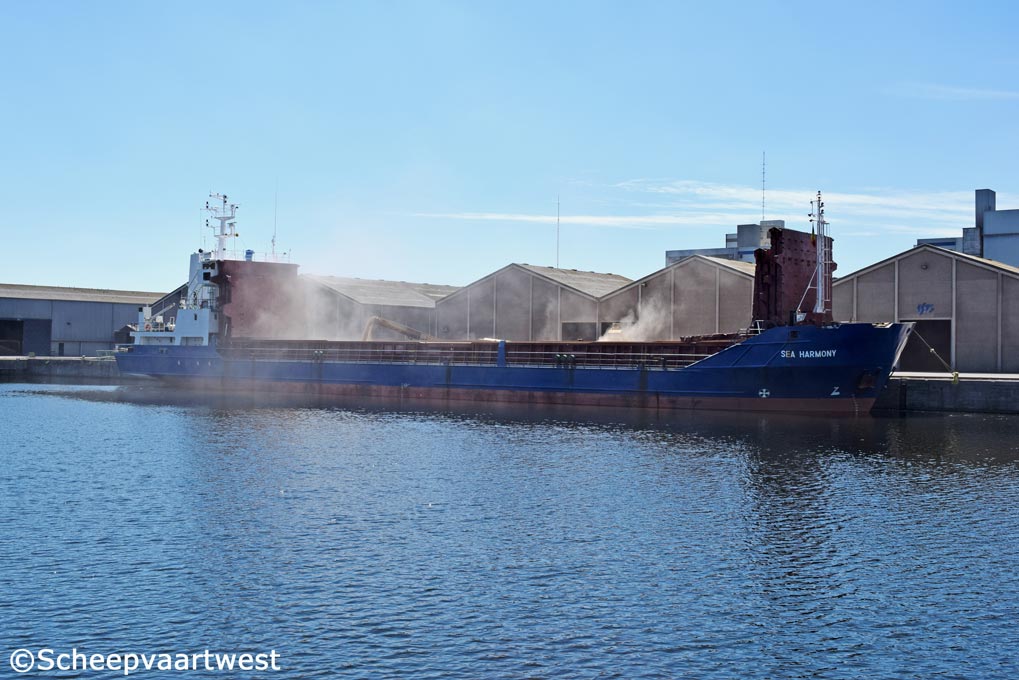

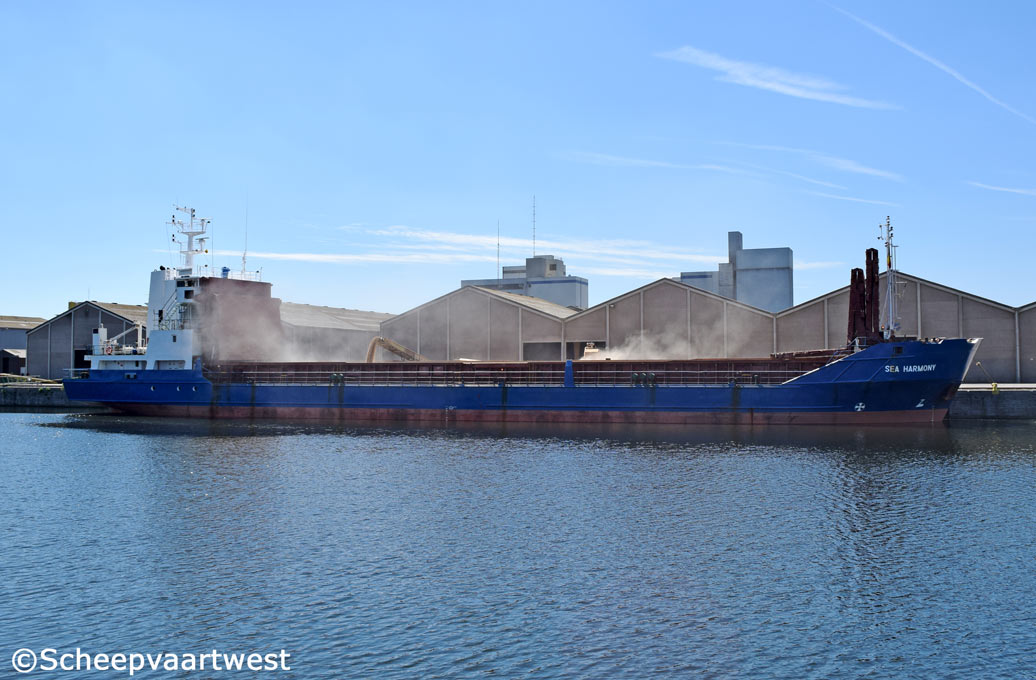

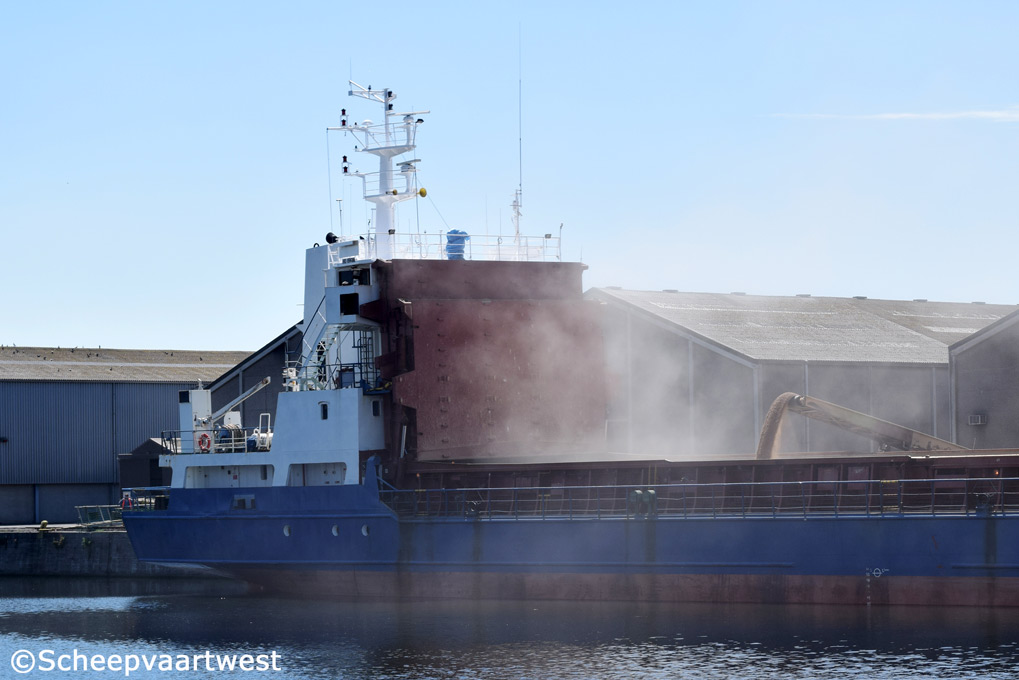

| Brugge, Belgium 06 June 2014 |
 |
 |
 |
||
| Brugge 06/06/14 | Brugge 06/06/14 | Brugge 06/06/14 |
|
Name |
SEA HARMONY |
|
Previous names |
1991 - 02.1992 Wannsee 02.1992 - 08.1982 Medeur Terzo 08.1992 - 10.1993 Wannsee 10.1993 - 10.1993 Zelo 10.1993 - 08.1994 Wannsee 08.1994 - 02.1996 Intermodal Malta 02.1996 - 01.2001 MF Malta 01.2001 - 06.2005 Nordstrand 06.2005 - 12.2013 Graf Uko |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Box-shaped Singeldecker |
|
IMO-number |
8914166 |
|
Call sign |
8PMA |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
GT |
2.481 t |
|
DWT |
2.900 t |
|
NT |
1.230 t |
|
Number of 20ft containers |
In hold: 102 On deck: 100 Total: 202 |
|
Length |
87,50 m overall 82,25 m registered |
|
Breadth |
13,00 m registered |
|
Draught |
Summer: 5,02 m |
|
Forecastle |
6,64 m |
|
Freeboard |
2.085 mm |
|
Depth |
7,10 m |
|
Speed |
12,0 knots |
|
Built |
1991 |
|
Keel laid |
31.08.1990 |
|
Launch date |
09.02.1990 |
|
Date of completion |
05.1991 |
|
Builder |
ENVC - Estaleiros Navais de Viana do Castelo, S.A. |
|
Yard number |
156 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Hull hull Double bottom |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6L 28/32A - 4 stroke 6 cylinder 280 x 320 mm diesel engine- 1.320 kW at 750 rpm Year of manufacture: 1990 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller - aft at 194 rpm |
|
Boilers |
Water heater, oil fired - 4,0 bar Year of manufacture: 1990 |
|
Electric installations |
2x Plant each 380/220 V - 169 kVA 1x Plant 380 V - 270 kVA 1x Plant 380 V - 90 kVA |
|
Shaft generator |
1x 270 kVA |
|
Generators |
2x main diesel generatorsets each 270 kVA |
|
Emergency generator |
1x Diesel generatorset 90 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 100 litres - 15,0 bar 1x Receiver 100 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster HATLAPA - 130 kW, forward |
|
Number of holds |
1 57,40 x 10,20 x 8,20 m height clear box over a length of 49,60 m |
|
Cargo capacity |
Grain &bales: 4.650 m³ / 160.000 ft³ |
|
Number of hatches |
1 57,20 x 10,20 m |
|
Ballast capacity |
1.396 m³ |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m |
|
Crew |
9 |
|
Manager |
Sea Shipmanagement Ltd. |
|
Registered owner |
Blackbirds, Little Bardfield |
|
Latest data adjustment |
30 July 2014 |
