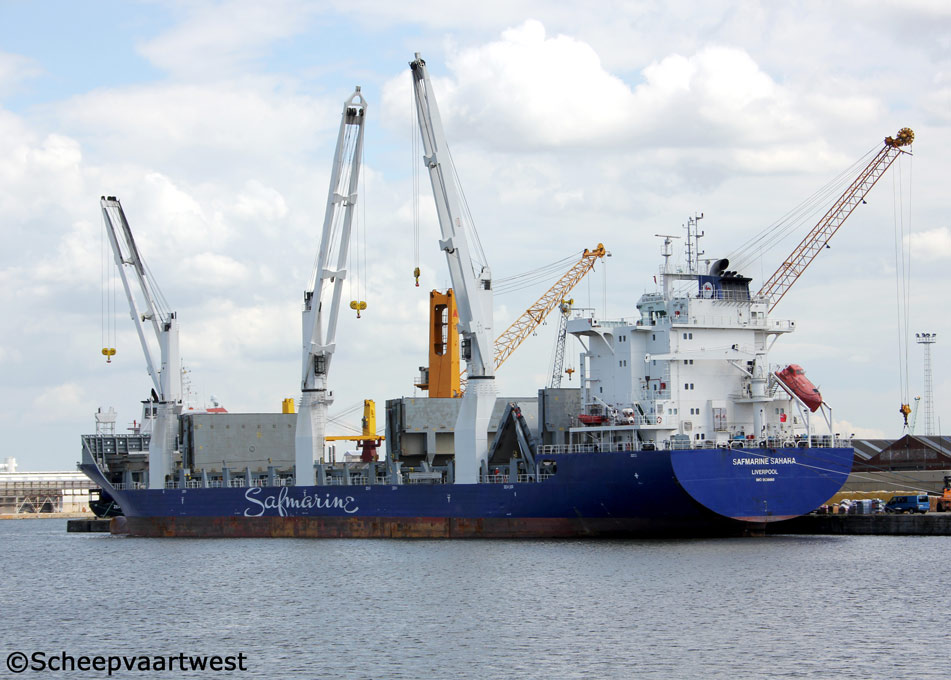

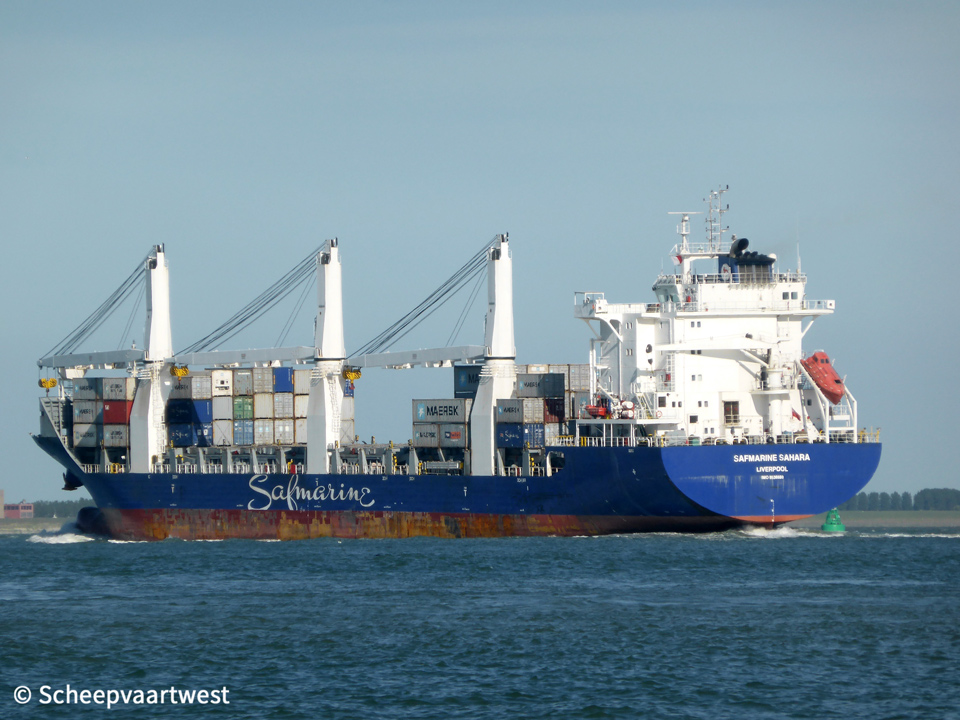

Westerschelde 07 June 2015 |
 |
 |
|

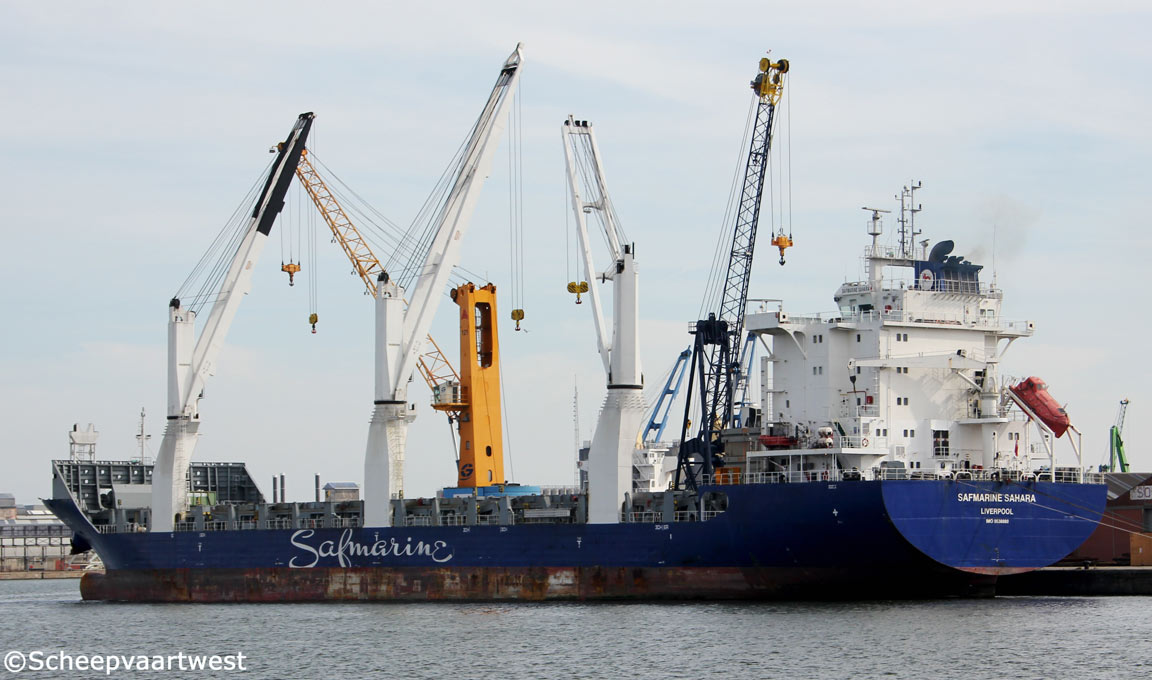

| Antwerpen 20/06/14 | Antwerpen 28/09/14 |
|
Name |
SAFMARINE SAHARA |
|
Type |
Multi-purpose cargo vessel - Containership - Heavy cargo and grain |
|
IMO-number |
9538880 |
|
Call sign |
2EUL6 |
|
Flag |
United Kingdom |
|
Previous flags & home |
Republic of Singapore, Singapore City - Call sign: 9V9465 |
|
Port of registry |
Liverpool |
|
GT |
14.859 t |
|
DWT |
Summer: 17.884 t |
|
NT |
6.320 t |
|
Number of 20ft containers |
1.054 |
|
Reefer plugs |
144 |
|
Length |
161,50 m overall 153,50 m between perpendiculars |
|
Breadth |
25,18 m |
|
Draught |
8,60 m |
|
Height above keel |
44,20 m |
|
Depth |
12,40 m to main deck |
|
Speed |
Max.: 15,3 knots Service: 14,6 knots |
|
Built |
2011 |
|
Keel laid |
03/09/2009 |
|
Launch date |
08/02/2010 |
|
Date of completion |
20/08/2011 |
|
Builder |
Wuhu Xinlian Shipbuilding Co., Ltd. Wuhu Anhui Province China |
|
Yard number |
W0821 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Doosan 6S50MC-C - 2 stroke 6 cylinder combustion engine 9.960 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
3x Main generatorsets each 960 kW |
|
Bow thruster |
1x 750 kW |
|
Number of cargo holds |
3 |
|
Cargo hold capacity |
Grain: 25.520,8 m³ / 901.263 ft³ |
|
Hatch type |
Hydraulic operated hatch covers |
|
Floor space |
Under deck: 3.836 m² / 41.290 ft² On deck: 2.008 m³ / 21.614 ft² |
|
Max permitted loads |
Tanktop: 18,0 t m² On tweendeck: 3,50 t/m² Hatchcovers: 2,50 tm² |
|
Tank capacities |
Fuel oil: 1.834 m³ Fresh water: 250,3 m³ |
|
Cargo gear |
3x Cranes situated portside - SWL 80,0 t each 150 t capacity combined |
|
Crew size |
24 |
|
Manager |
Enzian Shipmanagement AG Bremgartnerstrasse 7 CH-8003 Zürich Switzerland |
|
Owner |
SCL - Safmarine Container Lines NV Schaliënstraat 3 B 2000 Antwerpen Belgium |
|
Renamed |
2016 Thorco Raffles Hong Kong, China - Call sign: VRPK9 |
|
Latest data adjustment |
15 May 2020 |
