Westerschelde 30 June 2014 |
|
Name |

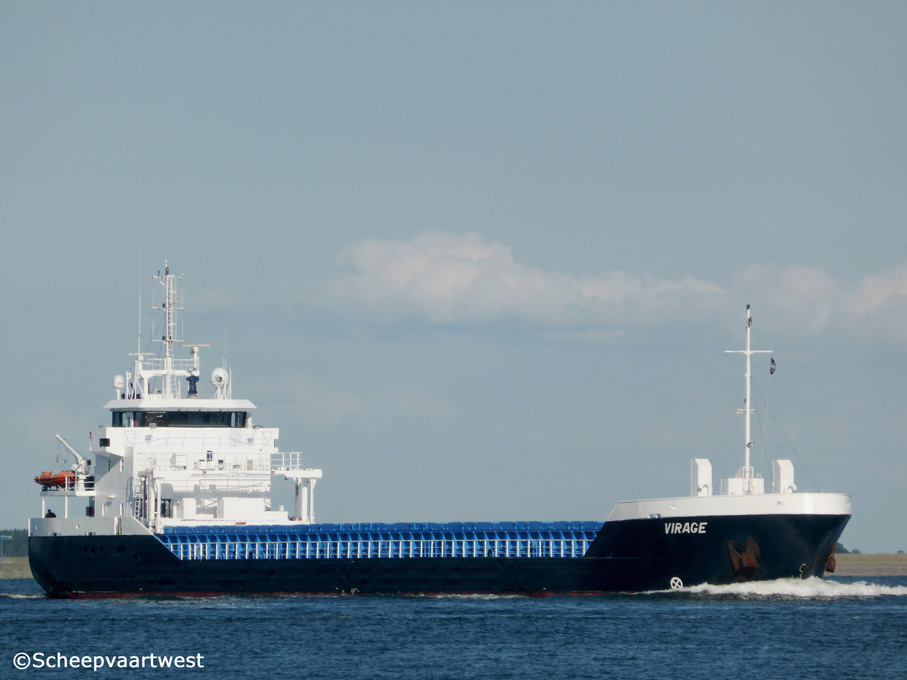

VIRAGE |
|
Type |
General cargo ship - Container ship heavy cargo |
|
IMO-number |
9411824 |
|
Call sign |
PCOY |
|
Flag |
The Netherlands |
|
Port of registry |
Werkendam |
|
GT |
2.281 t |
|
DWT |
Summer: 3.200 t |
|
DWCC |
Summer: 2.950 t Winter: 3.100 t |
|
NT |
1.170 t |
|
Number of 20ft containers |
In hold: 56 On deck: 48 Total: 104 |
|
Length |
888,97 m overall 84,99 m between perpendiculars |
|
Breadth |
11,80 m extreme |
|
Draught |
Max. summer: 5,05 m |
|
Air draft |
17,90 m at 3,50 meter draft |
|
Freeboard |
1.732 mm |
|
Depth |
6,90 m moulded |
|
Speed |
11,5 knots |
|
Built |
2012 |
|
Date of completion |
28.06.2012 |
|
Builder |
Bijlsma Shipyard B.V. The Netherlands |
|
Yard number |
771 |
|
Hull material |
Steel |
|
Hull type |
Strength bottom |
|
Movable bulkhead |
2x Moveable bulkheads for 7 positions bulkheads |
|
Main engine |
1x Wärtsilä - 4 stroke 8 cylinder - 1.499 kW / 2.037 hp at 1.000 rpm Builder: Wärtsilä Vaasa, Vaasa - Finland |
|
Propellers |
1x Screw propeller controllable pitch |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
1x Diesel generatorsets 175 kVA - 140 kW |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW |
|
Bow thruster |
1x 285 kW |
|
Number of holds |
1 Dimension: 61,87 x 10,80 x 7,42 m |
|
Total capacity of holds |
4.499 m³ / 158.900 ft³ |
|
Number of hatches |
1 Dimension: 61,87 x 10,80 m |
|
Hatch type |
Pontoon covers (11 pieces) |
|
Strength |
Tanktop: 12,0 t/m² Hatch cover: 1,75 t/m² |
|
Bunker capacity |
HFO: 158 m³ MGO: 35 m³ Fresh water: 45 m³ Water ballast: 1.458 m³ |
|
Manager |
VMS Shipping The Netherlands |
|
Operator |
Nednor B.V. The Netherlands |
|
Registered owner |
Virage C.V. Rotterdam |
|
Latest data adjustment |
27 July 2014 |
