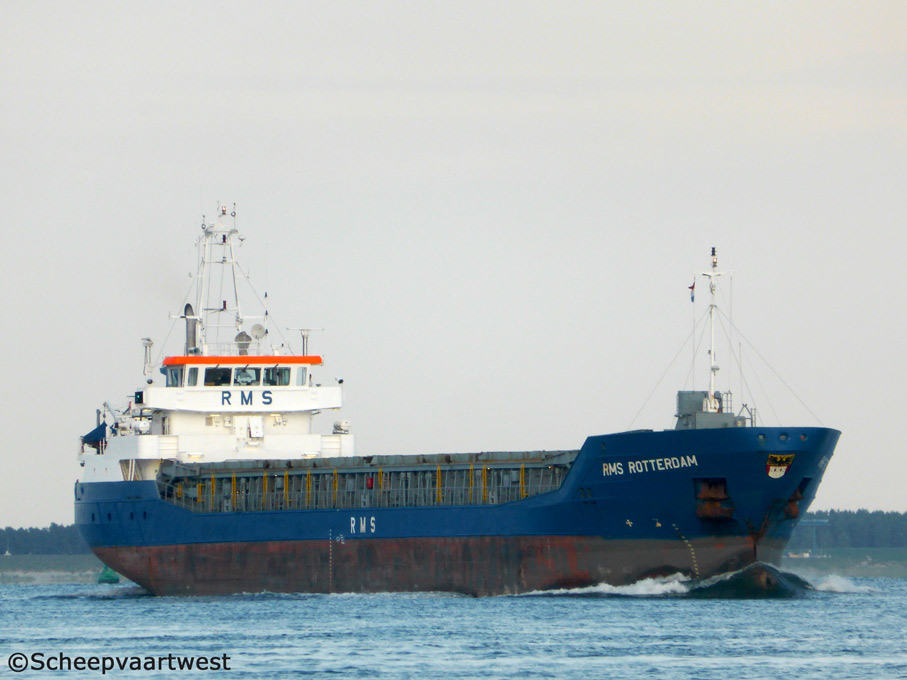

RMS Rotterdam 01

Westerschelde 04 August 2014

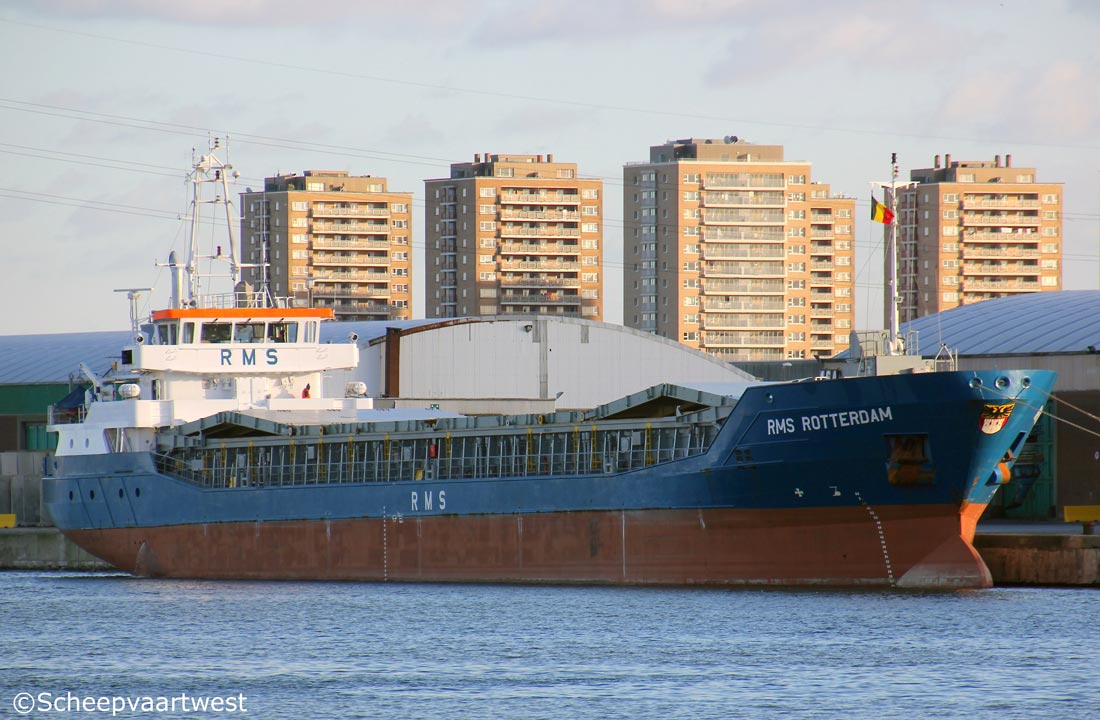

RMS Rotterdam 02
Antwerpen 05/01/17



Name

RMS ROTTERDAM

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

SID fully Box / Sea-Rivergoing vessel

IMO-number

9617296

Call sign

5BJP3

Flag

Cyprus

Port of registry

Limassol

GT

2.589 t

DWT

Summer: 3.798 t

DWCC

Summer: 3.650 t

Winter: 3.550 t

NT

1.386 t

Number of 20ft containers

36

Length

89,92 m overall

84,43 m registered

Breadth

12,80 m moulded

Draught

Summer: 5,53 m

Winter: 5,45 m

Air draft

12,85 m

Freeboard

5.547 mm

Depth

7,10 m to main deck

8,00 m to poop deck

Speed

11,7 knots

Built

2001

Keel laid

19.12.2008

Launch date

31.05.2011

Date of completion

10.11.2011

Builder

Slovenske Lodenice Komarno a.s.
Rolnickej Skoly 1519
945 01 Komarno
Slovak Republic

Yard number

3801

Hull material

Shipbuilding steel (standard)
Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

4

Movable bulkhead

2 (10 positions)

Continuous decks

1

Main engine

1x MaK 8M20C - 4 stroke 8 cylinder 200 x 300 mm diesel engine - 1.520 kW at 1.000 rpm

Year of manufacture: 2008

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 245 rpm

Boilers

1x Water heater, oil fired - 12,0 bar

Year of manufacture: 2010

Manufacturer: Max Weishaupt GmbH
Max Weishaupt-Str. 14
88475 Schwendi
Federal Republic of Germany

Electric installations

2x Plants each 400 V - 230 kVA

1x Plant 400 V - 130 kVA

2x Plants each 24 V - 176 Ah

2x Plants each 24 V - 580 Ah

2x Plants each 24 V - 720 Ah

2x Plants each 24 V - 900 Ah

Generators

2x Volvo Penta D9MG diesel engine 239 kW coupled with generator HCM 434 D - 230 kVA at 1.500 rpm - 400/230 volt 50 Hz each

Emergency generator

1x Volvo Penta D7AT diesel engine 112 kW coupled with generator UCM 274 F - 130 kVA at 1.500 rpm - 400/230 Volt 50 Hz

Batteries

2x Batteries for start auxiliary engine each 900 Ah

2x Batteries for start emergency engine each 580 Ah

2x Batteries for automation each 360 Ah

2x Batteries for automation each 360 Ah

1x Battery for UPS radio 176 Ah

1x Battery for UPS navigation 176 Ah

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

1x Transverse thruster SCHOTTEL type SIT 110 - 185 kW, forward

Number of holds

2

Hold 1: 57,85 x 10,20 x 8,13/7,99 m

Hold 2: 57,10 x 10,20 x 8,15 m

Hold capacity

169.750 ft³ / 4.809 m³ excl. bulkheads

Type of hatches

Multifold Crocodile with hydraulic control

Deck strength

Tanktop: 15,0 t/m²

Hatchcover: 1,5 t/m²

Tank capacities

HFO: 190,5 m³

MDO: 81,10 m³

Ballast water: 1.493 t

Fresh water: 53 t

Anchor equipment

3x Anchors weight each 1.576 kg

Chain Length: 467,50 m

Crew size

8

Manager

Rhenus Maritime Services GmbH
Krausstr. 1a
47119 Duisburg
Federal Republic of Germany

Operator

RMS - Rhenus Maritime Services

Registered owner

Rhenus Schiffinvest GmbH & Co. KG MS "ROTTERDAM"
Krausstr. 1a
47119 Duisburg
Federal Republic of Germany

Sister ships

RMS Bremen

Latest data adjustment

10 September 2014
