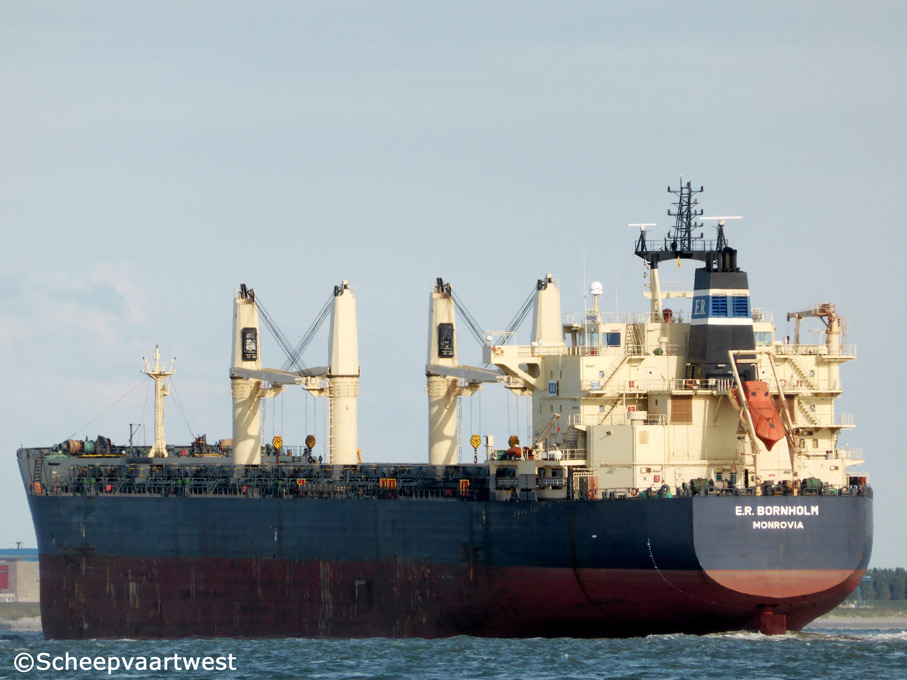

E.R. Bornholm 01

Westerschelde 24 August 2014



Name

E.R. BORNHOLM

Type

Bulk carrier

IMO-number

9483267

Call sign

A8XQ8

Flag

Liberia

Port of registry

Monrovia

GT

32.672 t

DWT

Summer: 56.000 t

NT

18.529 t

Length

187,80 m overall

182,50 m between perpendiculars

Breadth

32,26 m extreme

Draught

12,87 m

Depth

18,30 m

Speed

14,5 knots

Built

2011

Keel laid

19.01.2011

Launch date

25.04.2011

Date of completion

30.09.2011

Builder

Hyundai Vinashin Shipyard Co., Ltd.
Ninh Phuoc
Vietnam

Yard number

S009

Hull material

Steel

Main engine

1x MAN-B&W/Hyundai - 6 cylinder diesel engine 9.480 kW

Propellers

1

Boilers

Auxiliary boiler, composite

Builder: Kang Rim Heavy Ind., Co., Ltd.

Generators

3x Himsen 6H17/28 dieel generatorsets

Builder: Hyundai Engine & Machinery Co. Ltd.

Emergency generator

1x Cummins diesel generatorset

Cargo hold capacity

Grain: 70.000 m³

Ballast capacity

29.725,6 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manager

E.R. SCHIFFAHRT GmbH & Cie. KG
Hohe Bleichen 12
D - 20354 Hamburg
Germany

Previous managers

2011 - 2013 Wallem GmbH & Co. KG

Registered owner

MS "E.R.BORNHOLM" Schiffahrtsgesellschaft mbH & Co. KG

Previous owners

2011 - 2011 E.R. Schiffahrt

Latest data adjustment

04 October 2014
