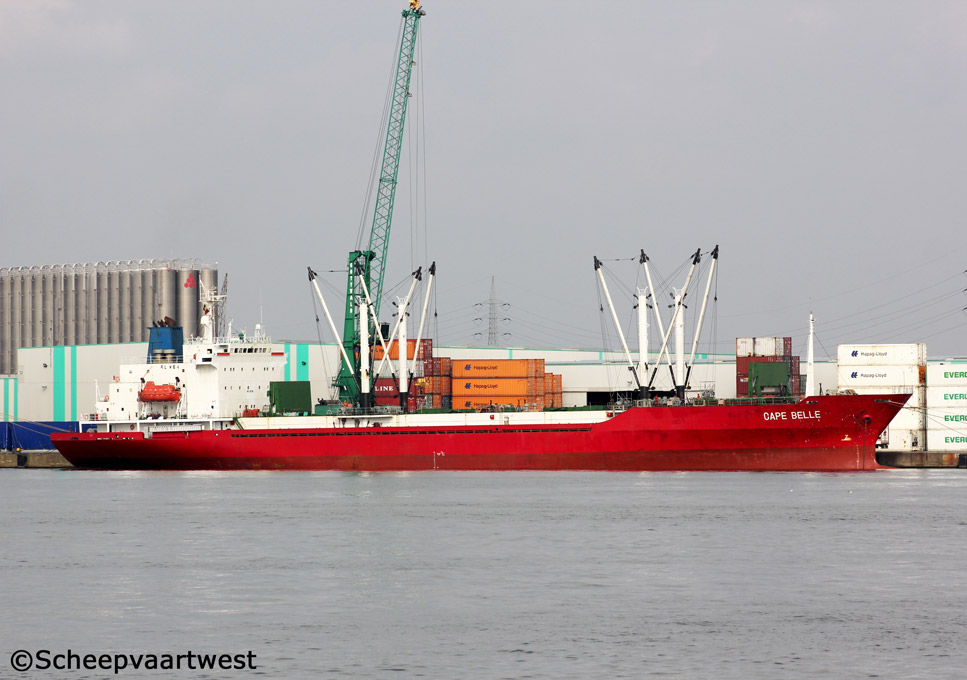

Cape Belle 01

Antwerpen 03 October 2014



Name

CAPE BELLE

Previous names

1993 - 10.1998 Cape Breeze

Type

Refrigerated cargo carrier

IMO-number

9051789

Call sign

ELWE4

Flag

Liberia

Port of registry

Monrovia

GT

6.082 t

DWT

Summer: 7.179 t

NT

4.061 t

Number of 20ft containers

20

Number of 40ft containers

10

Length

126,00 m overall

Breadth

19,00 m moulded

Draught

Summer: 7,76 m

Moulded L x B x D

116,00 x 19,00 x 10,30 m

Registered L x B x D

116,33 x 19,00 x 10,30 m

Freeboard

2.568 mm

Depth

10,30 m moulded

Speed

18,0 knots ballast

17,0 knots banana load

Max.: 21,3 knots

Built

1993

Keel laid

15.04.1993

Launch date

05.07.1993

Date of completion

10.11.1993

Builder

Kitanihon Shipbuilding Co. Ltd.
Hachinohe
Japan

Yard number

270

Hull material

Steel

Main engine

1x Mitsubishi - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 7.060 kW - 9.599 hp at 133,0 rpm

Manufacturer: Akasaka Diesels Ltd.- Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 426

Propellers

1x Fixed pitch propeller - aft at 133,0rpm

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 1,98 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators 1.830 kVA

Number of holds

4

Number of hatches

4

Number of compartments

12

Cooling Sections

9

Temperatures

+15°C -25°C

Cargo capacity

Refrigerated: 9.830 m³

Deck area

3.901 m²

Tank capacities

Fuel oil: 1.221 m³

Fresh water: 162 m³

Water ballast: 318 m³

Cargo gear

8x Derricks - SWL 5,0 t

Manager

KLC SM Co., Ltd.

Registered owner

Agder Ocean Reefer III AS
4876 Grimstad

Norway

Latest data adjustment

23 October 2014
