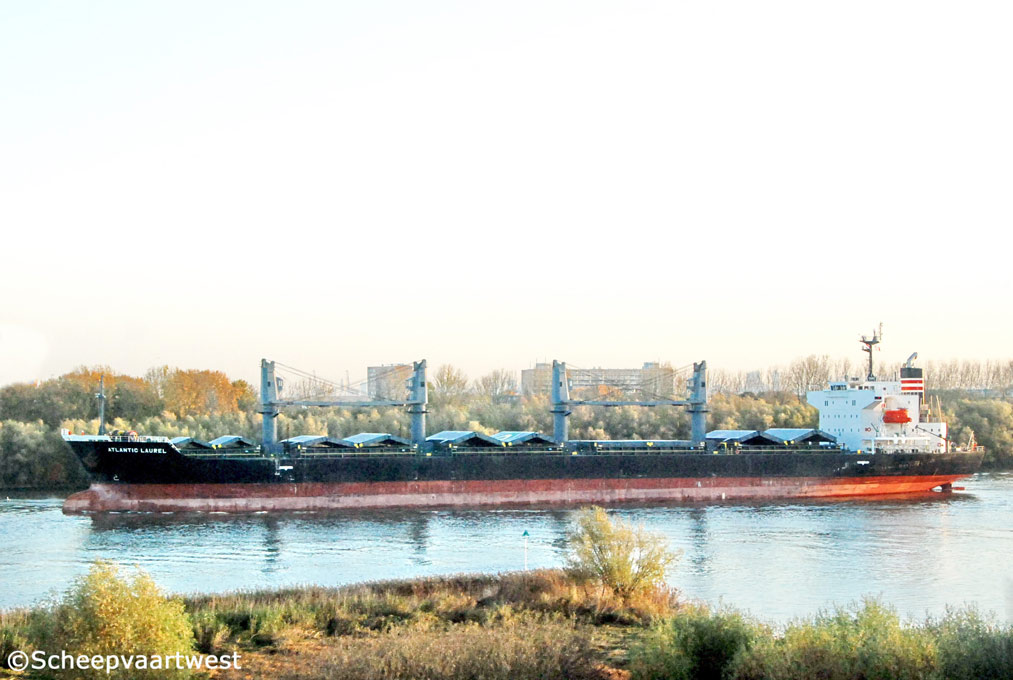

Atlantic Laurel 01

Spijkenisse, The netherlands 01 November 2014

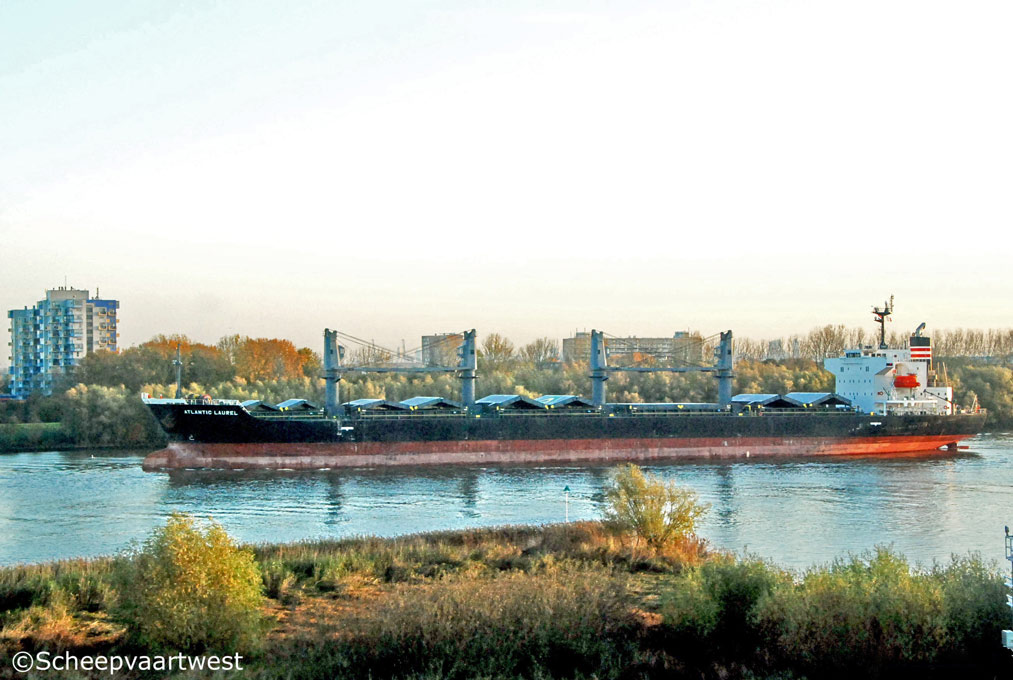

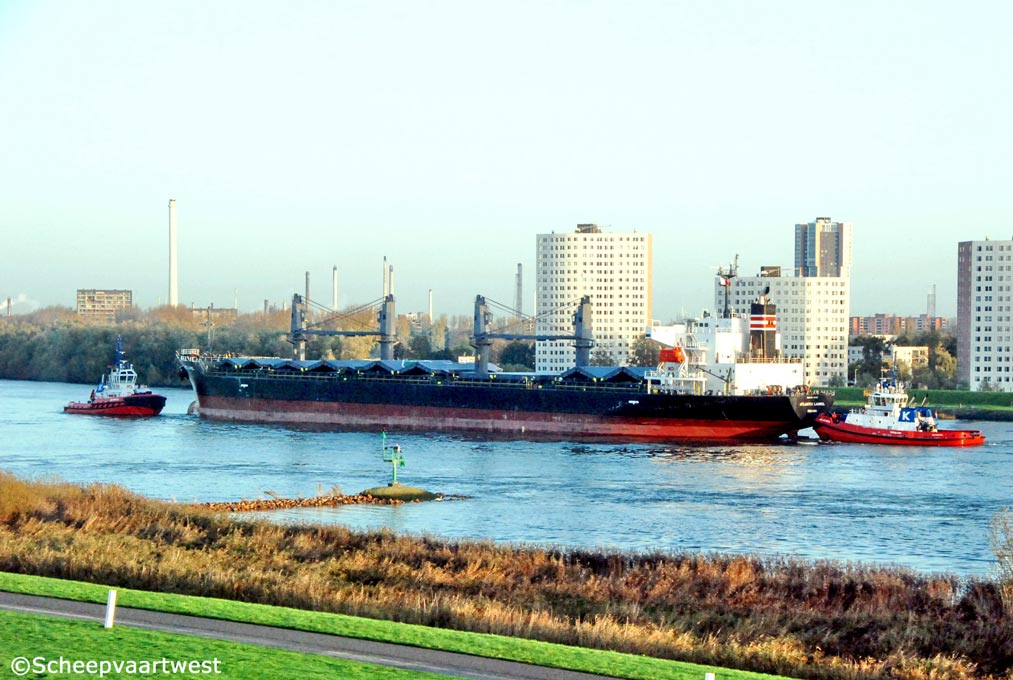

Atlantic Laurel 02   Atlantic Laurel 03
Spijkenisse 01/11/14 Spijkenisse 01/11/14



Name

ATLANTIC LAUREL

Type

Bulk carrier

IMO-number

9494747

Call sign

3FGO3

Flag

Republic of Panama

Port of registry

Panama City

GT

20.243 t registered

DWT

Summer: 33.271 t

NT

10.566 t registered

Length

178,41 m overall

Breadth

29,40 m moulded

Draught

Summer: 9,77 m

Moulded L x B x D

169,70 x 29,40 x 13,90 m

Registered L x B x D

170,57 x 29,40 x 13,90 m

Freeboard

4.176 mm

Depth

13,90 m moulded

Speed

Max.: 16,1 knots

Service: 14,4 knots

Built

2012

Keel laid

28.12.2010

Launch date

17.01.2012

Date of completion

08.03.2012

Builder

The Hakodate Dock Co., Ltd.
Hakodate
Japan

Yard number

848

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x1.810 mm diesel engine - 6.840 kW / 9.300 hp at 129,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 430 mm

Propellers

1x Fixed pitch propeller - aft at 129,0 rpm

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 1,81 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Generators - 1.204 kVA

Number of holds

5

Cargo hold capacity

Grain: 41.987 m³

Bales: 40.637 m³

Tank capacities

Fuel oil: 1.435 m³

Fresh water: 211 m³

Water ballast 14.108 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

NYK Shipmanagement Pte. Ltd.
15-01, HarbourFront Tower One, 1
Harbourfront Place
Singapore
Republic of Singapore

Owner

NYK Bulkship Atlantic N.V.
Noorderplaats 7
2000 - Antwerpen
Belgium

Latest data adjustment

14 November 2014
