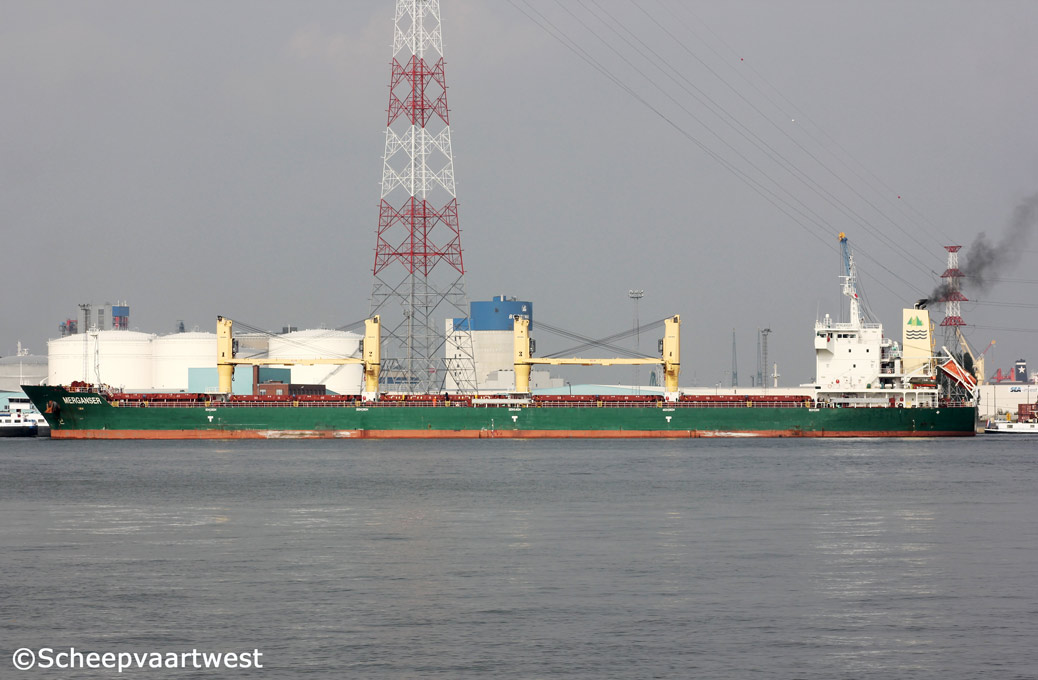

Merganser 02

Antwerpen 03 October 2014

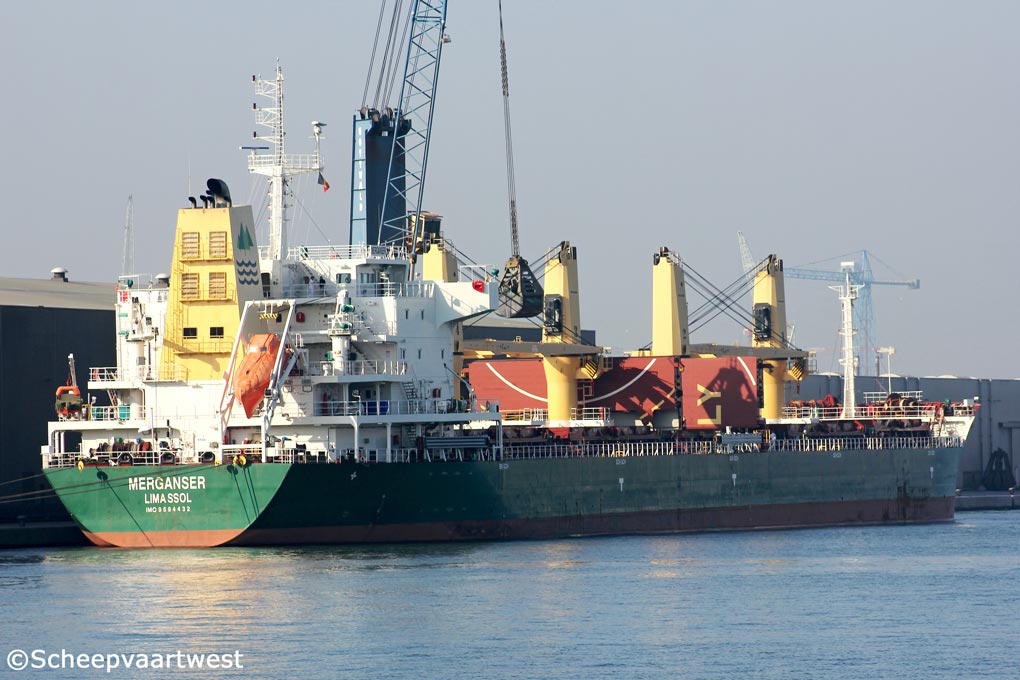

Merganser 01
Antwerpen 03/10/14



Name

MERGANSER

Type

Bulk carrier

IMO-number

9594432

Call sign

5BCB3

Flag

Cyprus

Port of registry

Limassol

GT

19.943 t

DWT

Summer: 32.844 t

NT

11.905 t

Length

177,37 m overall

169,02 m registered

Breadth

28,20 m registered

Draught

10,20 m

Air draft

37,20 m (Without holds flooded but fully ballasted)

Forecastle

11,86 m

Depth

14,20 m moulded

Speed

14,2 knots

Built

2012

Keel laid

11.04.2011

Launch date

23.09.2011

Date of completion

18.04.2012

Builder

Yangfan Group Co., Ltd.
169, Lujiazhi Road, Shenjiamen Putuo District
Zhoushan, Zhejiang
People's Republic of China

Yard number

H2169

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN B&W 6S42MC7-01 - 2 stroke 6 cylinder 420 x 1.764 mm diesel engine - 6.480 kW / 8.690 bhp at 136,0 rpm

Year of manufacture: 2011

Manufacturer: STX (Dalian) Shipbuilding Co., Ltd.
Changxing Island Harbor Industrial Zone
Dalian, Liaoning
People's Republic of China

Propellers

1x Solid propeller (Keykess) - aft at 136,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 15,6 m²

1x Steam boiler,exhaust gas heated - 9,0 bar

Heating surface: 184,0 m²

Year of manufacture: 2011

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.
Machinery Industry Park Qingdao Development Area
Qingdao, Shandong
People's Republic of China

Electric installations

3x Plants each 450 V - 625 kVA

1x Plant 450 V - 150 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

Generators

3x Main diesel generatorsets each 625 kVA

Emergency generator

1x Diesel generatorset 150 kVA

Batteries

1x Battery for automation 200 Ah

1x Battery for start emergency engine 200 Ah

1x Battery for UPS navigation 200 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 4.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 3.000 litres - 7,0 bar

1x Receiver 250 litres - 7,0 bar

Number of holds

5

Hold 1: 23,20 x 7,20 m FWD / 20,20 m AFT

Hold 2: 25,60 x 20,20 m

Hold 3: 25,60 x 20,20 m

Hold 4: 25,60 x 20,20 m

Hold 5: 24,00 x 20,20 m FWD / 6,90 m AFT

Hold capacity

Grain / Bale

Hold 1: 6.790,3 m³ / 6.192,8 m³

Hold 2: 9.073,3 m³ / 8.274,8 m³

Hold 3: 9.076,1 m³ / 8.277,4 m³

Hold 4: 9.076,3 m³ / 8.277,6 m³

Hold 5: 8.195,8 m³ / 7.474,6 m³

Total: 42.211,8 m³ / 38.497,2 m³

Number of hatches

5

Hatch 1: 14,40 x 15,20 m

Hatch 2: 19,20 x 16,80 m

Hatch 3: 19,20 x 16,80 m

Hatch 4: 19,20 x 16,80 m

Hatch 5: 19,20 x 16,80 m

Hatch type

MacGregor high stowing & folding, operated by external hydraulic cylinders

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

25

Manager

Navarone S.A.
6, Cheimaras Street
151 25 Marousi
Greece

Registered owner

Grante Mare Navigation Ltd.
2nd floor, Flat/Office B2 8, Orfeos
1070 Nicosia
Republic of Cyprus

Latest data adjustment

23 November 2014
