Westerschelde 10 October 2010 |
|
Name |

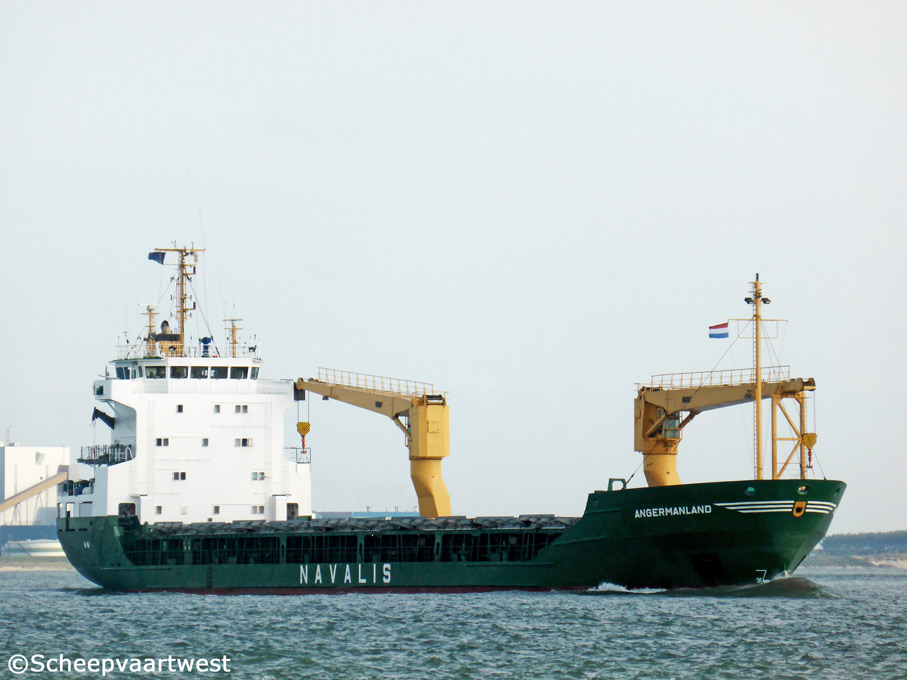

ANGERMANLAND |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
8818752 |
|
Call sign |
ZQVN7 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
3.845 t |
|
DWT |
Summer: 4.334 t |
|
NT |
2.013 t |
|
Number of 20ft containers |
In hold: 140 On deck: 180 Total: 320 |
|
Container capacity 14t |
214 |
|
Length |
104,86 m overall 97,90 m registered |
|
Breadth |
16,00 m registered 16,26 m moulded |
|
Draught |
Max.: 5,83 m |
|
Forecastle |
11,00 m |
|
Poop |
9,80 m |
|
Depth |
7,75 m moulded |
|
Speed |
Service: 12,5 knots Max.: 14,0 knots |
|
Keel laid |
27.04.1989 |
|
Launch date |
06.06.1989 |
|
Date of completion |
07.1989 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
986 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Mak 8M453C - 4 stroke 8 cylinder 320 x 420 mm diesel engine - 2.936 kW at 600 rpm Year of manufacture: 1989 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 170 rpm |
|
Electric installations |
3x Plants each 400/220 V - 140 kVA 1x Plant 400 V - 1.075 kVA 1x Plant 400 V - 40 kVA |
|
Shaft generator |
1x 1.075 kVA |
|
Generators |
3x Zepp./Caterpillar type 3406 DI-TAU main diesel generatorsets each 257 kW each |
|
Emergency generator |
1x Diesel generatorset 40 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Jastram 300 kW, forward |
|
Number of holds |
1 |
|
Cargo hold capacity |
Grain: 6.520 m³ Bales: 6.511 m³ |
|
Number of hatches |
1 |
|
Hatch type |
Hydraulic operated folding covers |
|
Ballast water |
1.885 m³ |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain Length: 495,00 m |
|
Cargo gear |
2x Cranes - SWL 25,0 t each Max. outreach 2,70 m - 21,0 m (portside) |
|
Manager |
Schiffahrtskontor tom Wörden GmbH & Co. KG |
|
Registered owner |
MS "ANGERMANLAND" GmbH & Co. KG |
|
Latest data adjustment |
01 December 2014 |
