Askabat 01

Antwerpen 12 October 2014

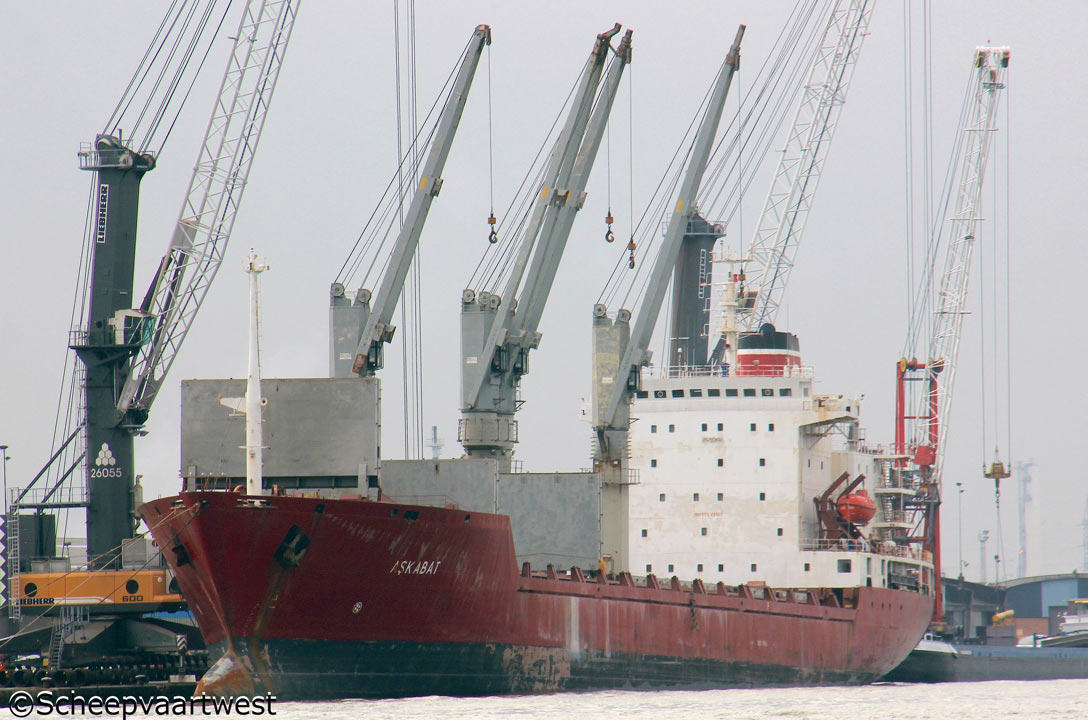

Askabat 03
Antwerpen 31/01/17



Name

ASKABAT

Type

Multi-purpose dry cargo and container carrier

IMO-number

8811405

Call sign

TCCA7

Flag

Turkey

Port of registry

Istanbul

GT

12.930 t registered

DWT

18.891 t

NT

6.593 t registered

Light weight

6.768 t

Number of 20ft containers

828

Length

165,50 m overall

152,40 m between perpendiculars

Breadth

23,05 m

Draught

10,08 m

Freeboard

3.343 mm

Depth

13,40 m moulded

Speed

Service: 16,0 knots

Built

2002

Keel laid

01.07.1989

Launch date

05.06.1996

Date of completion

30.05.2002

Builder casco

Turkiye Gemi Sanayii A.S
Camialti
Istanbul
Turkey

Yard number: 238

Builder

Torgem Shipbuilding Industry & Trade
Tuzla
Istanbul
Turkey

Yard number: 68

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

12

Main engine

1x Sulzer/Cegielski 5RTA58 - 2 stroke single acting 5 cylinder 580 x 1.700 mm diesel engine 7.944 kW / 10.801 hp at 127,0 rpm

Manufacturer: H Cegielski, Poznan SA - Poland

Propellers

1x Controllable pitch propeller

Boilers

1x Waste heat boiler

1x Auxiliary water tube boiler

Shaft generator

1x 1.000 kW

Generators

3x Diesel generatorsets each 760 kW

Number of holds

4

Hold capacity

Grain / Bale:

115.205 ft³/ 102.068 ft³

243.410 ft³ / 238.757 ft³

230.504 ft³ / 225.721ft³

170.355 ft³ / 167.217 ft

Total: 759.474 ft³ / 733.764 ft³

Total: 21.081,4 m³ / 20.142,2 m³

Number of hatches

7

Hatch 1: 13,00 x 11,80 m

Hatch 2: 25,60 x 7,80 m each

Hatch 3: 25,60 x 7,80 m each

Hatch 4: 19,20 x 7,80 m each

Hatch covers

Folding type

Number of tanks

Ballast: 21

Fresh water: 13

Fuel oil: 11

Lubricating oil: 10

Diesel oil: 7

Sludge: 4

Waste water: 3

Chain: 1

Tank capacities

Diesel Oil: 456,60 m³ / 410,94 t

Freshwater: 364,80 m³

Fuel Oil: 1.266,70 m ³ / 1.241,36 t

Lube Oil: 104,20 m³ / 93,78 t

Tank Ballast: 6.318,00 m³ / 6.475,95 t

Cargo gear

4x Cranes - WSL 25,0 t each

Manager

Armadev Denizcilik VE TIC. A.S.
Fahrettin Kerim Gokay Cad. No. 14

Denizciler Is Merkezi, B.Blok Kat.3

Altunizade, Uskudar

Istanbul

Turkey

Owner

D.B. Deniz Nakliyati T.A.S.

Registered owner

Armadev Denizcilik VE TIC. A.S.

Latest data adjustment

03 December 2014
