Antwerpen 12 October 2014 |
|
Name |

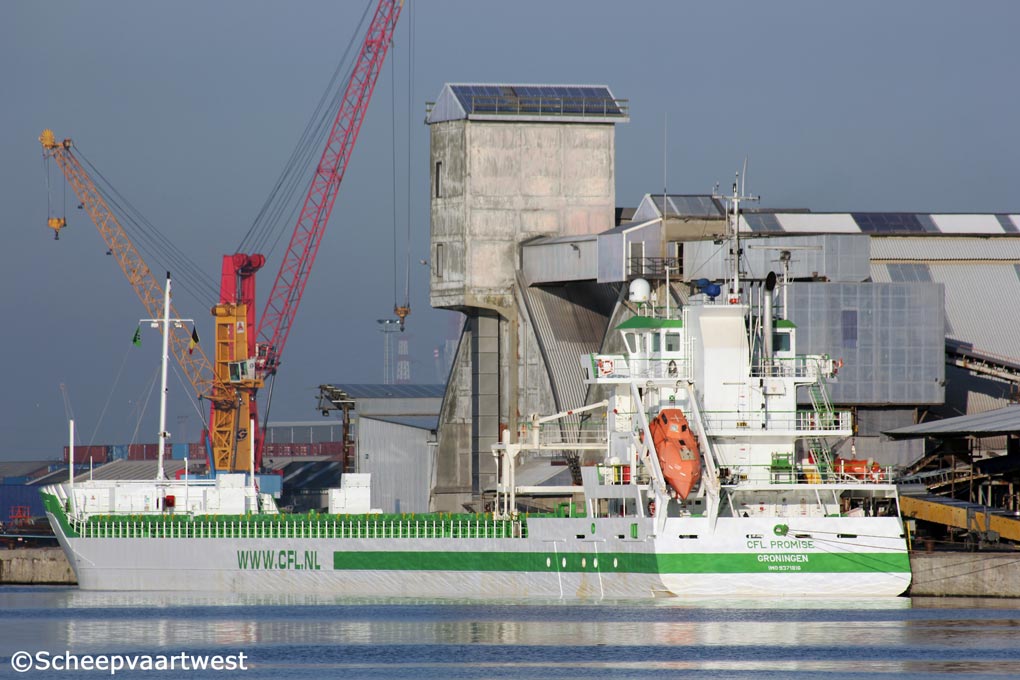

CFL PROMISE |
|
Type |
General cargo ship - Heavy cargo - Equipped for carriage of containers Type Jumbo 6500 |
|
IMO-number |
9371816 |
|
Call sign |
PBOH |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
4.016 t |
|
DWT |
Summer: 6.529 t |
|
DWCC |
Summer: 6.300 t Winter: 6.200 t |
|
NT |
1.747 t |
|
Number of 20ft containers |
In hold: 144 (60 FEU + 24 TEU) On hatches: 112 (52 FEU + 8 TEU) Total: 266 |
|
Length |
118,90 m overall 111,69 m between perpendiculars |
|
Breadth |
13,35 m |
|
Draught |
Summer: 6,08 m |
|
Air draft |
24,50 m in ballast 11,50 m mast collapsed ballast |
|
Freeboard |
3.030 mm |
|
Depth |
9,10 m |
|
Speed |
17,0 knots |
|
Built |
2008 |
|
Keel laid |
21/12/2007 |
|
Launch date |
12/09/2008 |
|
Date of completion |
16/10/2008 |
|
Builder |
Peters Shipyard Kampen The Netherlands |
|
Yard number |
816 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Movable bulkhead |
1x Movable bulkhead (15 ton) in hold 2 (8 Positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 Built: 01/08/2007 Builder: Caterpillar-MaK, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 435 kVA - 348 kW |
|
Generators |
2x AGCO Sisu 74 CTIM-4V diesel generatorsets each 175 kVA - 140 kW - 247 hp |
|
Emergency generator |
1x AGCO 420 diesel generatorset 81 kVA - 65 kW - 102 hp |
|
Bow thruster |
1x VETH VT-240 - 280 kW |
|
Number of holds |
2 Hold 1: 18,70 x 11,20 x 9,00 m Hold 2: 59,90 x 11,20 x 9,00 m |
|
Cargo hold capacity |
Grain/bale: Hold 1: 66.559 ft³ Hold 2: 213.202 ft³ Total: 279.761 ft³ |
|
Number of hatches |
2 Hatch 1: 18,70 x 11,20 m (3 Pcs.) Hatch 2: 59.90 x 11.20 m (10 Pcs.) 13 Pontoons (3 + 10) / Gantry Crane |
|
Hatch cover type |
Pontoon type |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 333 m³ Gas oil: 34 m³ Water ballast: 2.390 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Lifting equipment |
1x Gantry crane for pontoons |
|
Manager |
CFL Shipmanagement B.V. Groningen The Netherlands |
|
Previous manager |
10/2008 - 01/2015 CFL Shipmanagement B.V., Utrecht - The Netherlands |
|
Owner |
CFL Promise II Beheer B.V. Groningen The Netherlands |
|
Previous owners |
10/2008 - 01/2015 B.V. Scheepvaartonderneming CFL Promise, Groningen - The Netherlands |
|
Group |
Vertom Group Oever 7 3161 GR, Rhoon The Netherlands |
|
Renamed |
12/2018 Promise The Netherlands, Rotterdam - Call sign: PBOH Manager: Vertom Bereederungs GmbH & Co. KG - Germany Owner: Vertom UCS mv Promise B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
10 August 2022 |
